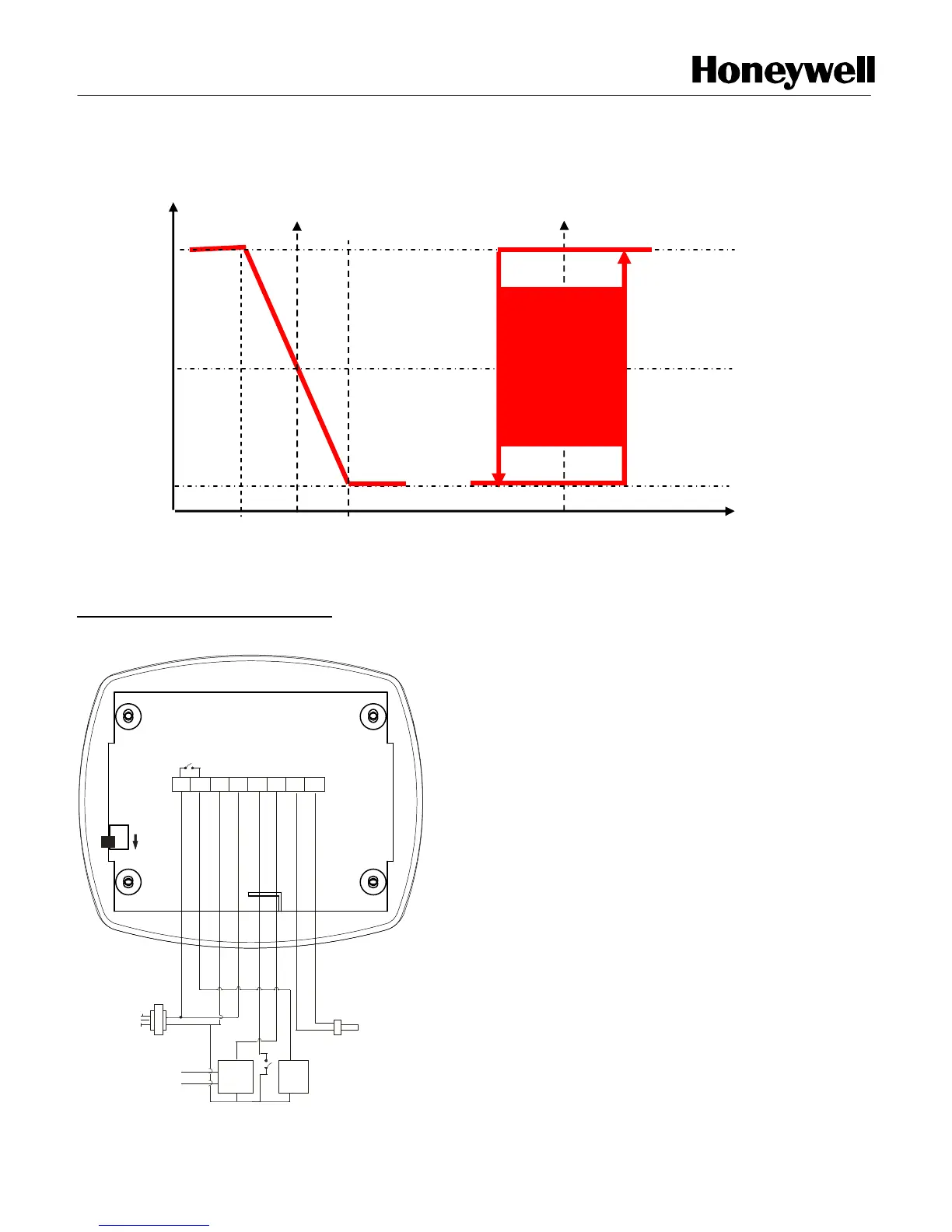

Page 9 of 18 APHITEMPCON001-11-04
Diagram 5: Heating + Temperature Limit Control.
Wiring Diagram
I] STANDARD WIRING DIAGRAM:
A/OD/I
Pt1000
sensor
1 2 3 4 5 6 7
PT1000
REMOTE SENSOR
ON / OFF
Valve /
Actuat or
2-10VDC /
4-20mA
Actuator
Unit
POWER
SUPPLY
110VAC /
230VAC
L
N
E
0VAC
0VAC
24VAC
24VAC
4 - 20 mA
2 - 10 VDC
8
Note : If Emergency IP [D/I] not used then add link between terminal No 5 & 3.
Output 2
Alarm
50%
Valve O
pen
100%
Temperature Increase
Valve Close
0%
Output 1
Heating
H SP
A SP
