Honeywell T6861-F User Manual

6
Troubleshooting Tips
If… Then…
Valve doesn't
open
♦ Press Up and Down button and hold them about 3s.
♦ Press Mode button to adjust the item to "10", and
Press the Up button to modify the value to "2".
♦ Check the actuator. It must turn on slowly.
♦ Check the valve, if it still doesn't open, please call
your supplier.
The fan doesn’t
work.
♦ Check whether the Fan mode is set to Auto
♦ Check whether valve is open
The Mode
button doesn’t
work.
♦ Check whether the keypad is locked or not.
♦ Check whether the thermostat is off.
The Fan button
doesn’t work.
♦ Check whether the keypad is locked or not.
♦ Check whether the thermostat is off.
The Up or Down
button doesn’t
work.
♦ Check whether the keypad is locked or not.
♦ Check whether the thermostat is off.
Setup Function Settings & Options
ISU Code Description Possible Options
1 System Type
0 Heat only
1 Cool only
2 Two pipes 1H1C manual (Default)
3
Floating Actuator
Running Time
24 (120 seconds Default)
Range 6~32 (30~160 seconds)
5 Remote Sensor
0 Onboard Sensor (Default)
1 Remote sensor
(NTC20K, T7770A1006)
9 Temperature Scale
0 ºF
1 ºC (Default)
10 Fan Control Type
0 Auto Only
1 Constant Only
2 Both (Default)
18
Display Temperature
Adjustment
-2 ºC (-4 ºF)
-1.5 ºC (-3 ºF)
-1 ºC (-2 ºF)
-0.5 ºC (-1 ºF)
0 ºC (0 ºF) (Default)
0.5 ºC (1 ºF)
1 ºC (2 ºF)
1.5 ºC (3 ºF)
2 ºC (4 ºF)
19
Temperature Display
Mode
0 Display Room Temperature
1 Display Set point
2 Display Both (Default)
20
Heating Range
Stops
10-32 ºC Default 32 ºC
(50-90 ºF Default 90 ºF)
21
Cooling Range
Stops
10-32 ºC Default 10 ºC
(50-90 ºF Default 50 ºF)
22 Keypad Lockout
0 All keys are available (Default)
1 System button is Locked out
2 Fan and System button are Locked out
3 All buttons are locked out
27 Freeze Protection
0 Disabled
1 Enabled

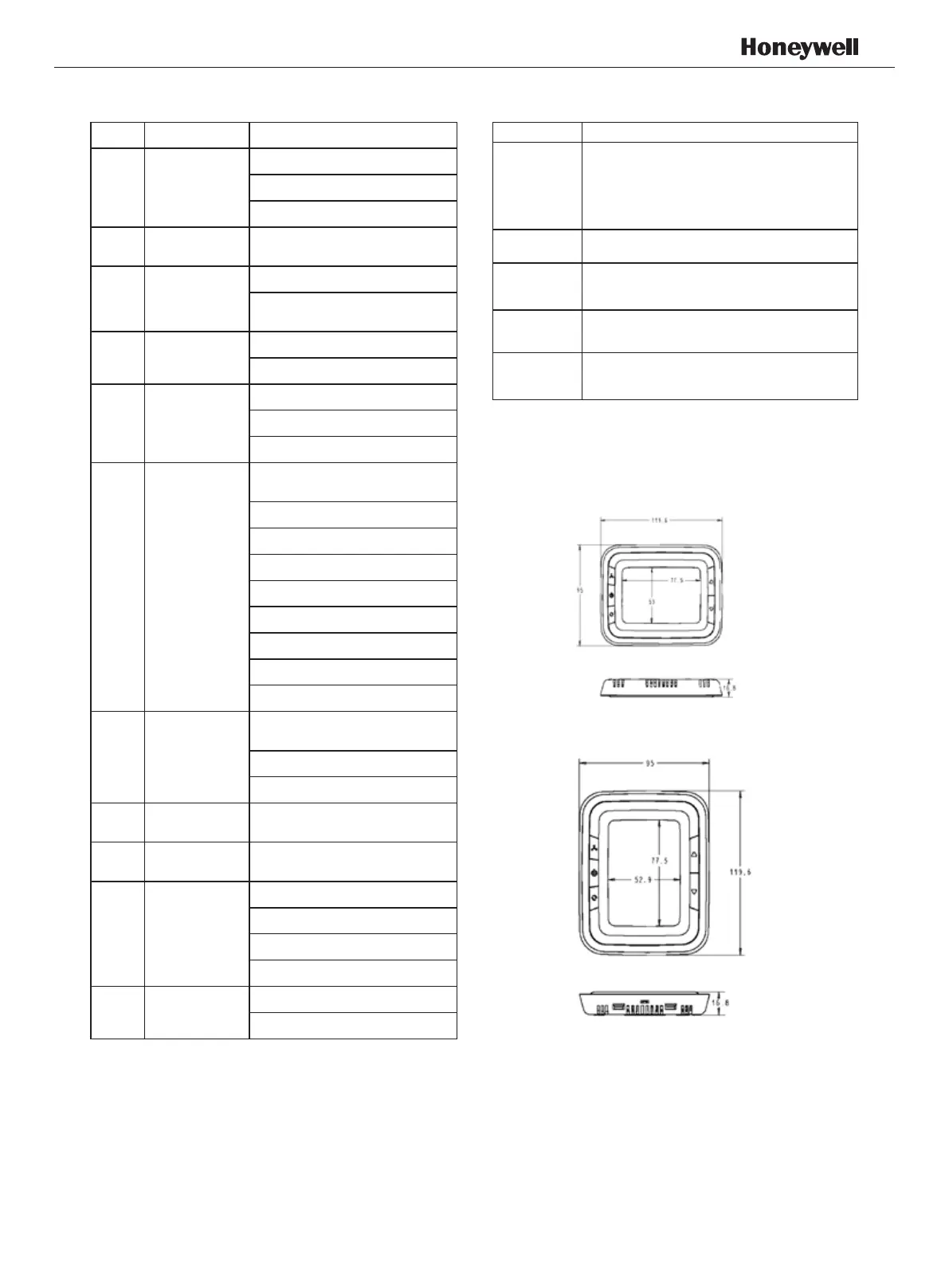

Dimension
Horizontal model
Vertical model
