69-0964–2
5
T7100F MICROELECTRONIC CONVENTIONAL OR HEAT PUMP THERMOSTAT
INSTALLER SELF-TEST
Use the Installer Self-Test to check the thermostat
configurations and operation. Refer to Table 3 for a list of
the available Self-Tests.
NOTE: The minimum Off time for compressors is
bypassed during the Installer Self-Test.
To start the Self-Test:
Press and hold the increase ▲ and decrease ▼ keys, at
the same time, until two zeros appear. All segments of
the LCD are displayed for three seconds before the two
zeros appear. Refer to Fig. 6 and 7.
Table 2. Thermostat Installer Setup Options (Continued).
Table 3. Installer Self-Test Mode Tests.
Refer to Table 4 for the directions and results of the
specific tests.
NOTE: Press and hold the increase ▲ and decrease ▼
keys for three seconds to exit the Self-Test
mode. Self-Test times out after five minutes
without any key presses.
Em HeatOffCool Auto Only
Heat Cool
OnAuto
System Fan
Room
Outdoor
Em Ht Temporary Setting
Wait
%Humid
Aux Ht
Remote
Repl
Batt
M4844
M6792
TEST MODE
NUMBER

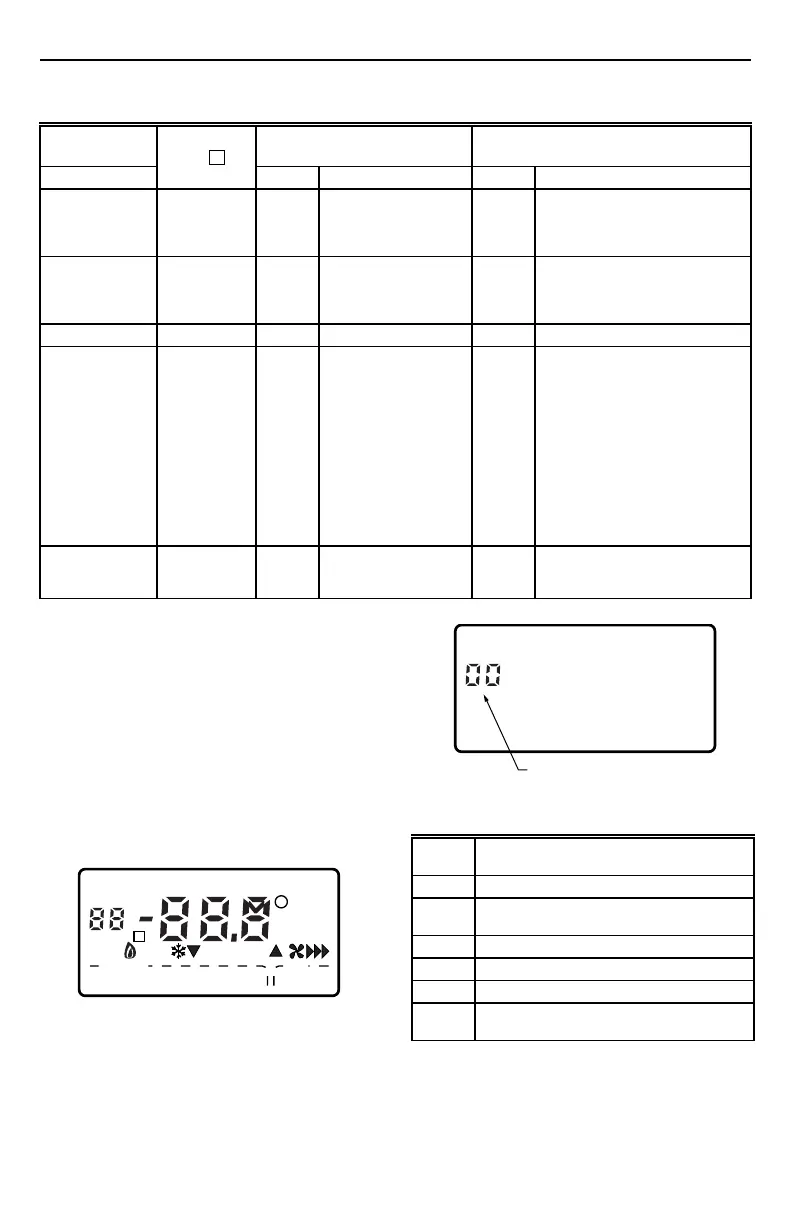

Fig. 6. Display of all LCD segments.
Fig. 7. Display of Test Mode number.
Test
Number Self-Test Description
10-19 Heating equipment can be turned on and off.
20-29 Emergency heat (Q7100C only) equipment
can be turned on and off.
30-39 Cooling equipment can be turned on and off.
40-49 Fan equipment can be turned on and off.
60-69 Keyboard keys test.
70-79 Thermostat information including date code
and software versions is displayed.
Mode Number
(Press i key
Factory-Setting
Other Choices
(Press ▲ or ▼ key to change)
Select
to change)
Display Description Display Description
Temperature
range stops in
heating (T7100F
only).
34 90 Highest heating setpoint
allowed.
40 - 89 Temperature range for (1°F
increments) heating setpoint.
Temperature
range stops in
cooling (T7100F
only).
35 45 Lowest cooling setpoint
allowed.
46 - 99 Temperature range for (1°F
increments) cooling setpoint.
Not used. 36 — — — —
Temperature
display
adjustment.
37 00 No difference in
displayed temperature
and actual room
temperature.
01 - 06
01—Display adjusts to 1°F higher
than actual room temperature.
02—Display adjusts to 2°F higher
than actual room temperature.
03—Display adjusts to 3°F higher
than actual room temperature.
04—Display adjusts to 1°F lower
than actual room temperature.
05—Display adjusts to 2°F lower
than actual room temperature.
06—Display adjusts to 3°F lower
than actual room temperature.
Minimum Off
times in heating.
38 02 2-minute minimum Off
time.
00, 01,
03, 04 or
05
Minimum number of minutes (0
thru 5) the heating equipment is off
between calls for heat.
To Next Page
