Honeywell T87 - Low Limit Range Stop Settings; High Limit Range Stop Settings

T87 RANGE STOPS
Automation and Control Solutions
Honeywell International Inc. Honeywell Limited-Honeywell Limitée
1985 Douglas Drive North 35 Dynamic Drive
Golden Valley, MN 55422 Scarborough, Ontario M1V 4Z9
customer.honeywell.com
® U.S. Registered Trademark
© 2005 Honeywell International Inc.
69-1864EFS M.S. Rev. 12-05

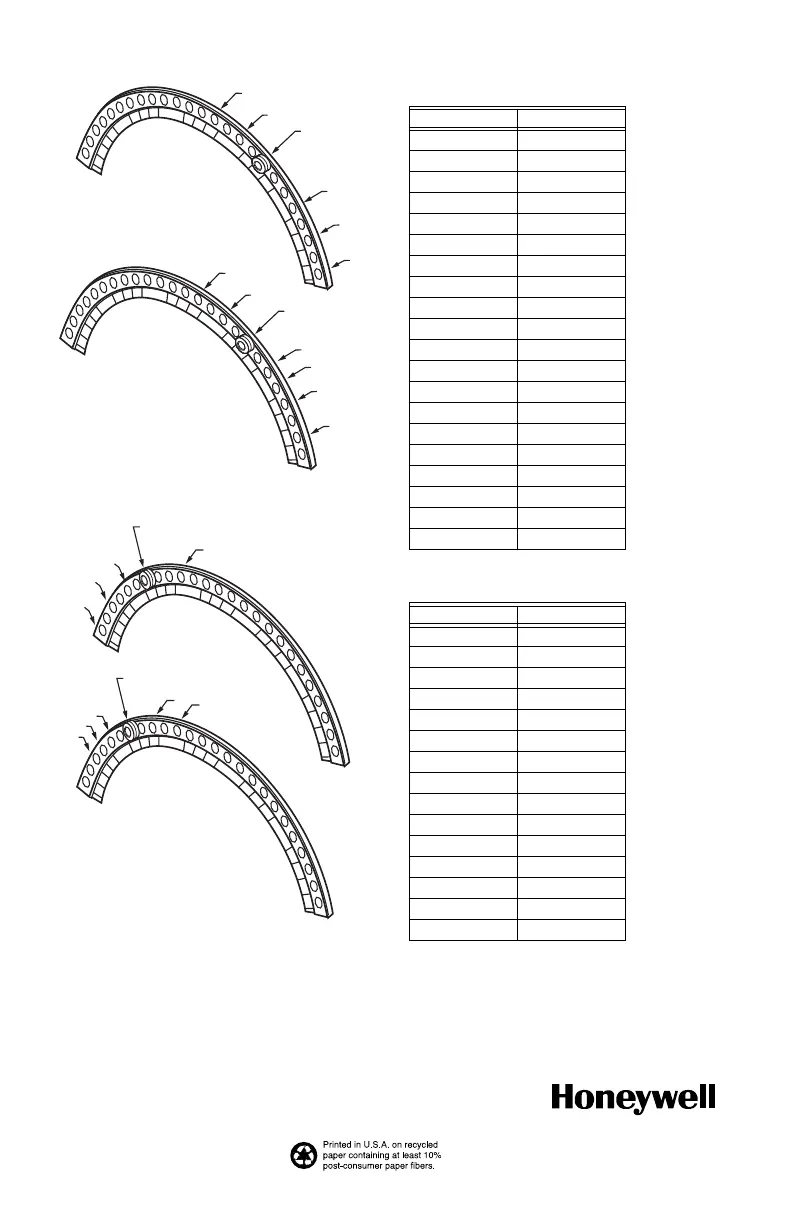

Fig. 4. Low range stop settings.
Fig. 5. High range stop settings.
80
70
60
50
56° LOW
LIMIT
SETTING
64°
46°
42°
60°
50°
26
20
15
09
M13677
12° LOW
LIMIT
SETTING
16.5°
8°
5°
15°
9°
10°
FAHRENHEIT SCALE
CELSIUS SCALE
80
70
60
50
76° HIGH LIMIT
SETTING
70°
80°
84°
88°
FAHRENHEIT SCALE
CELSIUS SCALE
26
20
15
09
M13678
23.5° HIGH LIMIT
SETTING
21°
19°
27°
29°
28°
Table 1. Low Limit Range Stop
°F °C
42 4
44 5
46 6.5
48 8
50 9
52 10
54 11
56 12
58 13
60 14.5
62 15.5
64 16.5
66 17.5
68 19
70 20
72 21
74 22.5
76 23.5
78 24.5
80 26
Table 2. High Limit Range Stop
°F °C
88 31
86 29.5
84 28
82 27.5
80 26
78 25
76 24
74 22.5
72 21.5
70 20
68 19
66 18
64 17
62 16
60 14.5
