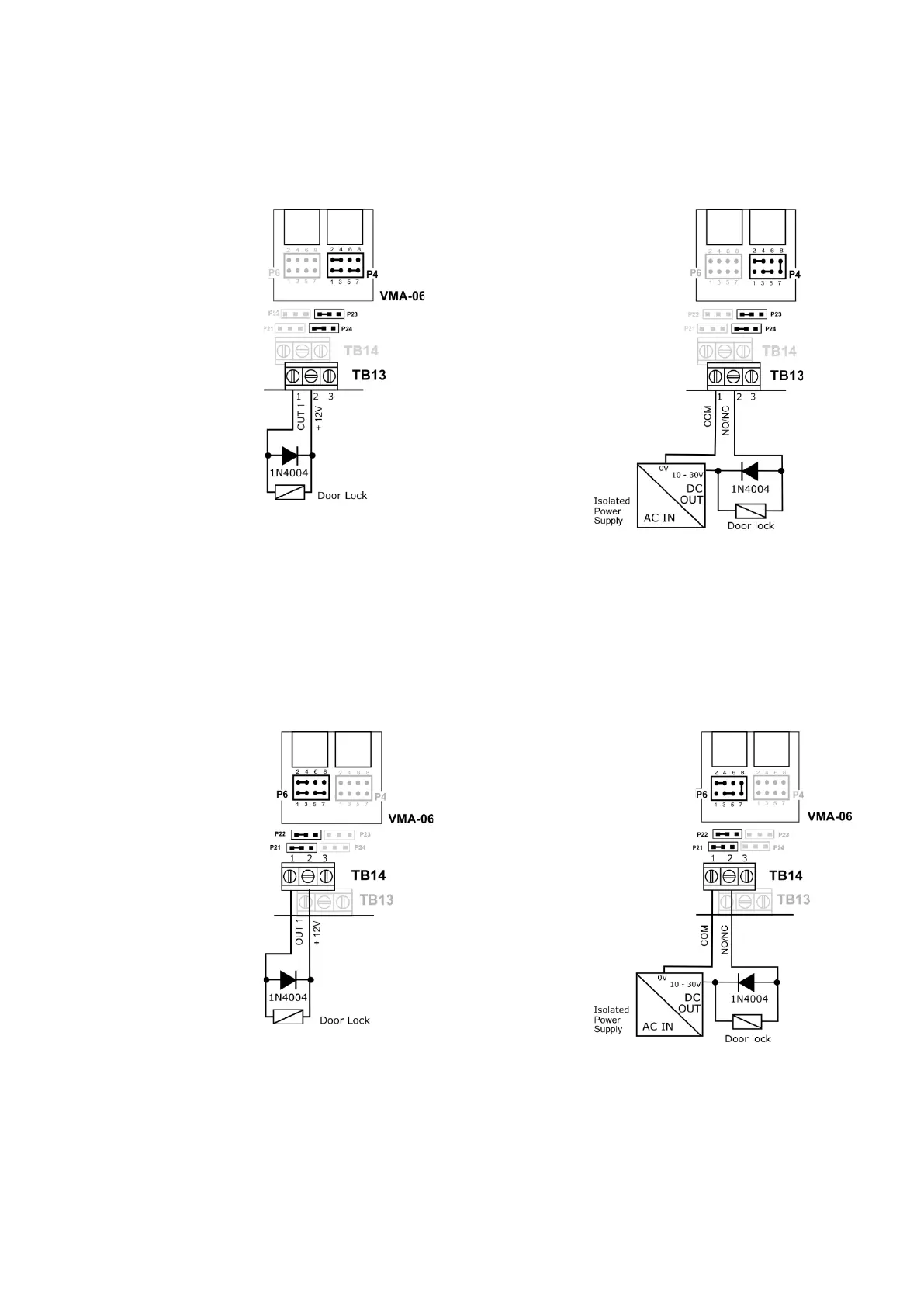

Configurable Output 5
Door Lock Powered by Multi relay
Door lock powered by external power
supply and driven by Multi relay
Relay output mode:
Power Output NO (as in above picture) or NC
Relay output mode:
Dry Contact NO (as in above picture) or
NC
Configurable Output 6
Door Lock Powered by Multi relay
Door lock powered by external power
supply and driven by Multi relay
Relay output mode:
Power Output NO (as in above picture) or NC
Relay output mode:
Dry Contact NO (as in above picture) or
NC
