Terminal Blocks and Jumpers

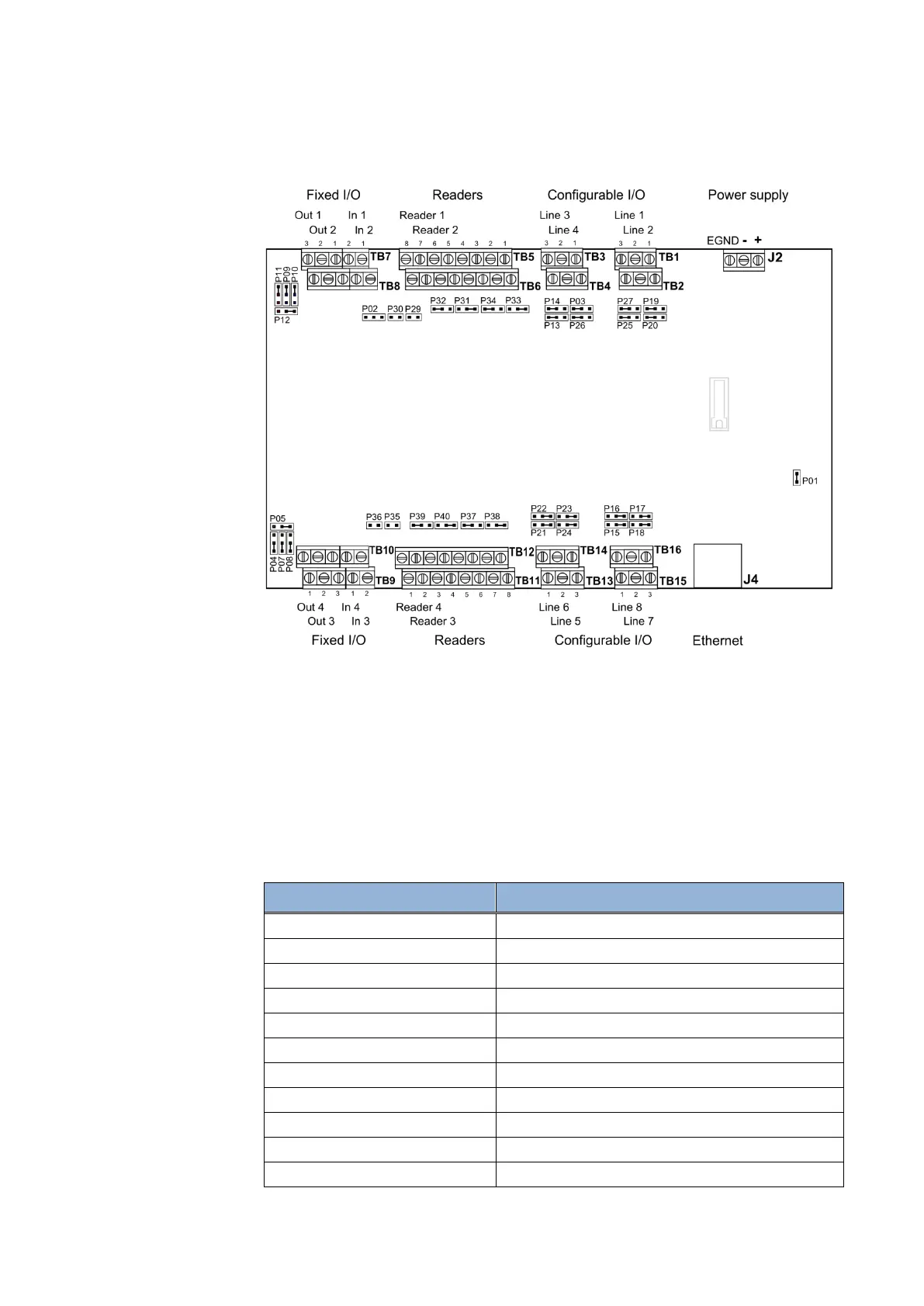

Figure 23 - Position of terminal blocks and jumpers (factory configuration)
The above picture shows the position of Terminal Blocks and Jumpers
on the Voyager Multi board.
Terminal Blocks
The below table lists the terminal blocks and explain their meaning.
Terminal Block Meaning
TB1 Configurable I/O line 1
TB2 Configurable I/O line 2
TB3 Configurable I/O line 3
TB4 Configurable I/O line 4
TB5 Reader1
TB6 Reader2
TB7 Fixed Input 1 and Fixed Output 1
TB8 Fixed Input 2 and Fixed Output 2
TB9 Fixed Input 3 and Fixed Output 3
TB10 Fixed Input 4 and Fixed Output 4
TB11 Reader3
