56
FINAL OPERATIONS
Closing the device
To close the terminal, follow these steps:
1. Position the cover with the corner with “Honeywell label” in the
lower right (this is important to properly close the anti-tamper
switch).
2. Close the device cover.
3. Secure the cover by mean of the 4 torx screws (see Figure 20);
this operation requires a TORX anti-tamper T10 screwdriver.

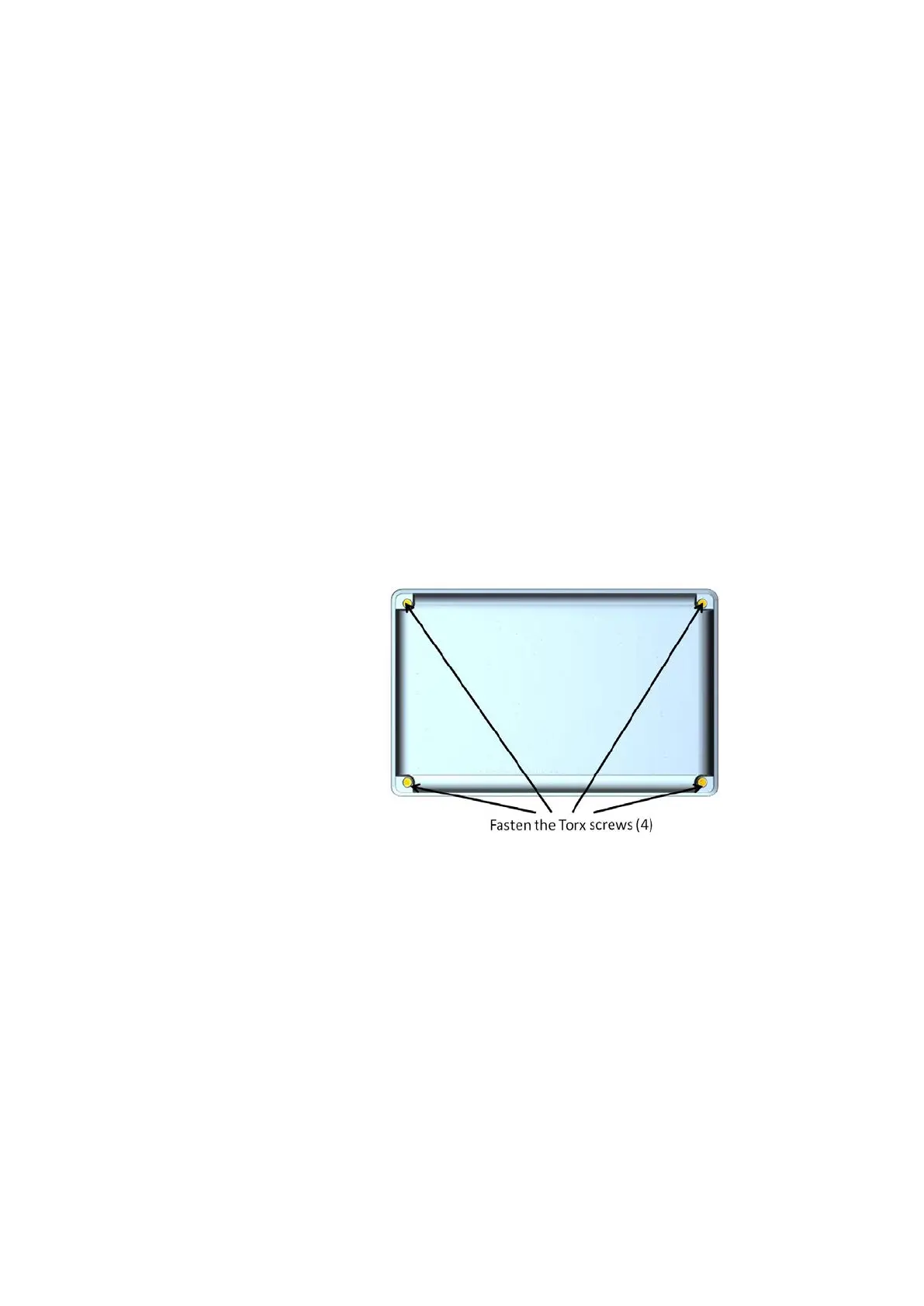

Figure 20 Multi cover
Commissioning tips
Commissioning of the device is outside the scope of this manual,
never the less we will include here some tips on this activity
addressing you to the EBI documentation for the full details:
EBI - Temaline Access Control Configuration Guide
