Honeywell TH8321 User Manual

VISIONPRO® 8000 SMART THERMOSTAT
7 33-00096—04

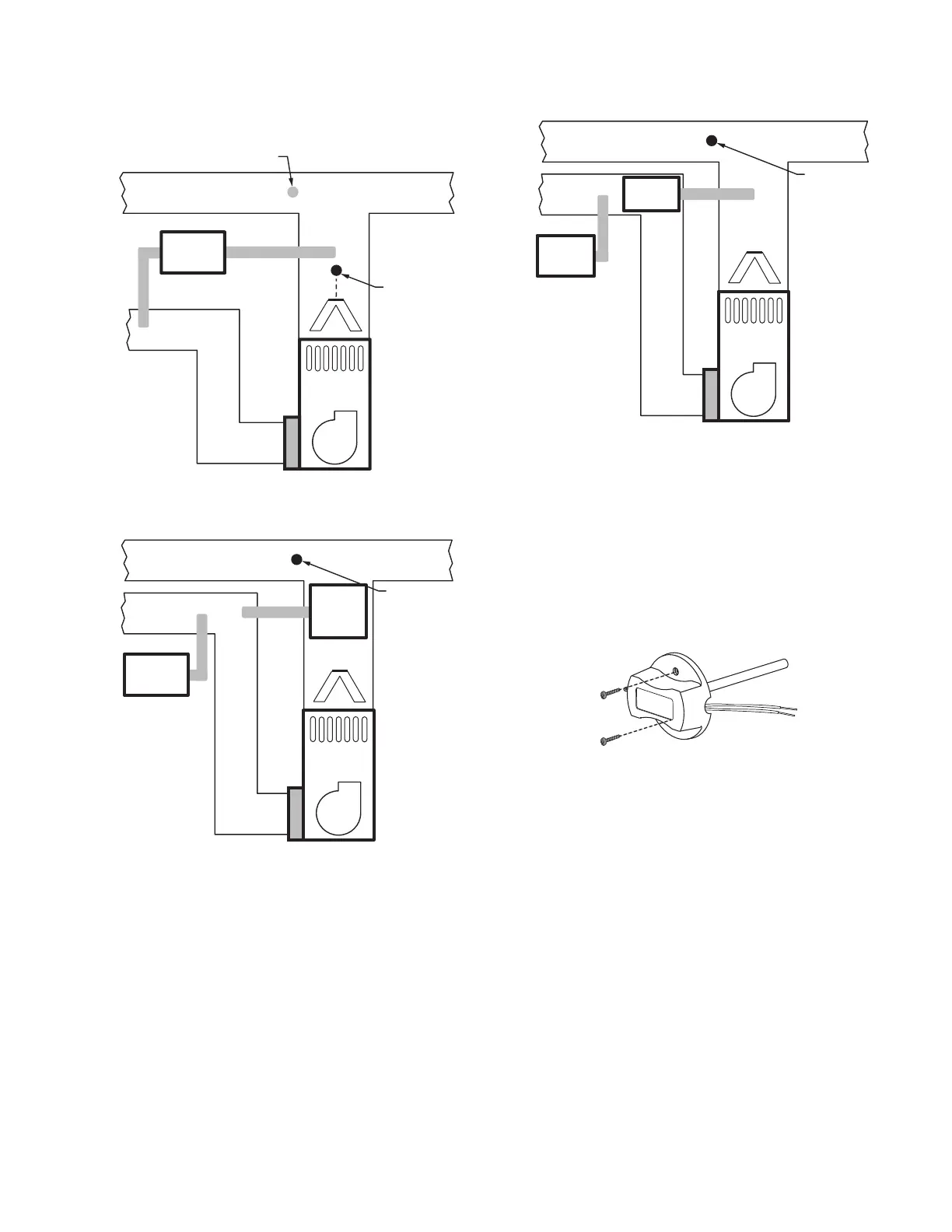

Fig. 5.
Fig. 6.
Fig. 7.
Installing Discharge Air
Temperature Sensor
Use the following steps to mount the Discharge Sensor:
1. Attach plastic cover to the sensor probe.
2. Drill 1/4-inch hole for the sensor probe and mount it
to the ductwork with enclosed screws (see Fig. 8).
3. Connect wires to S1 terminal at the thermostat.
4. Setup the S1 terminal in the Installer Setup at the
thermostat.
Fig. 8. Mounting Discharge Air Sensor.
M35770
HEAT
EXCHANGER
BLOWER
ALTERNATE MOUNTING LOCATION
FOR DISCHARGE SENSOR.
MOUNT
DISCHARGE
SENSOR HERE
ABOVE CENTER
OF A-COIL
UPSTREAM OF
DEHUMIDIFIER
DEHUMIDIFIER
HEAT
EXCHANGER
BLOWER
VENTILATOR
OR
DEHUMIDIFIER
MOUNT
DISCHARGE
SENSOR HERE
BYPASS
HUMIDIFIER
M35771
HEAT
EXCHANGER
BLOWER
VENTILATOR
OR
DEHUMIDIFIER
MOUNT
DISCHARGE
SENSOR HERE
BYPASS
HUMIDIFIER
M35772
M32995
