Honeywell TrueZONE HZ221 User Manual

Installation Guide
69-2200—0 2
 69-2200—0

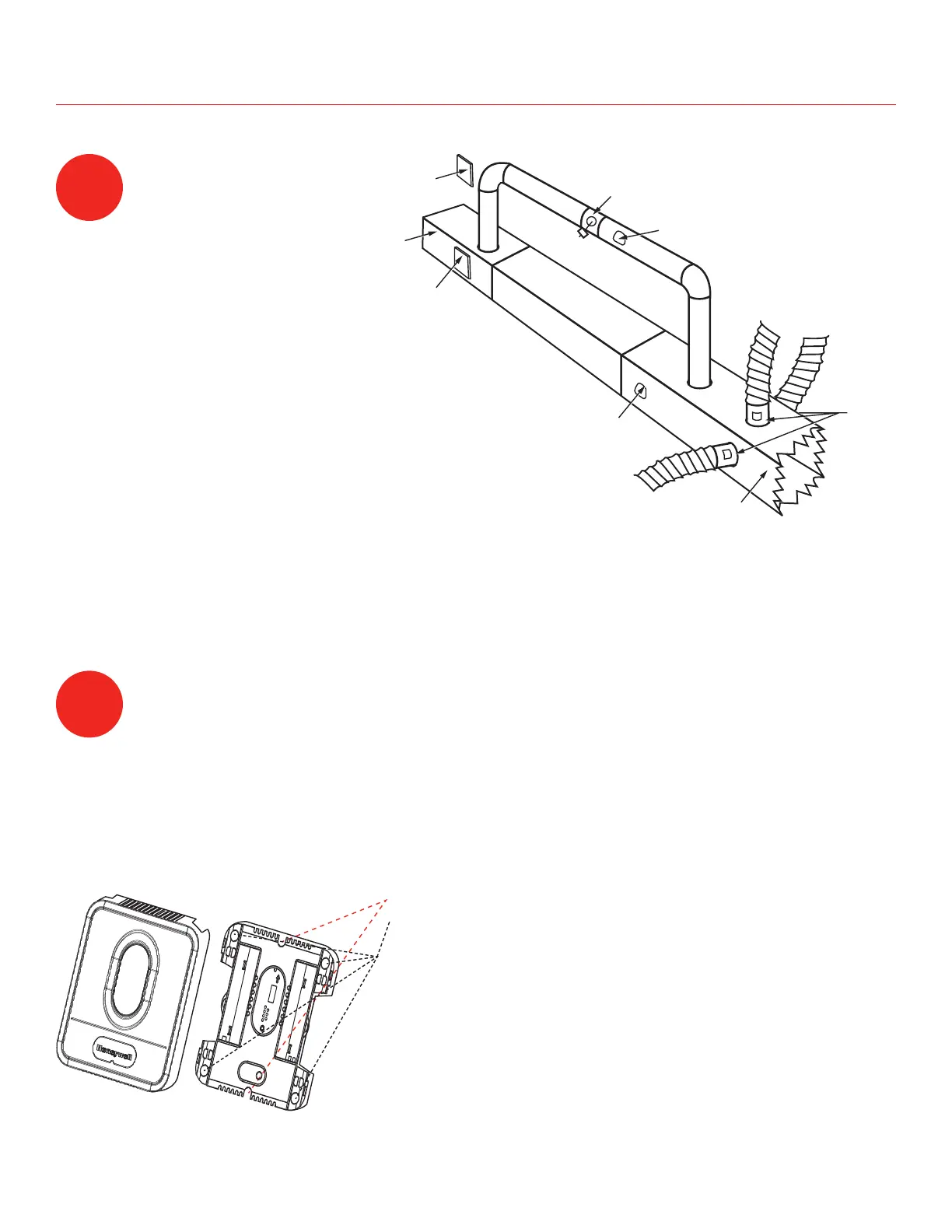

INSTALLATION
Mount the HZ221 TrueZONE
panel near the HVAC equip-
ment; locate it on a wall,
stud, roof truss, or cold-air
return.
NOTE: The HZ221
TrueZONE panel can be
mounted in any orientation;
level it for appearance only.
1
DATS
M28164
SUPPLY
DUCT
RETURN
DUCT
BYPASS
DAMPER
ZONE PANEL
(DUCT MOUNT)
ZONE PANEL
(WALL MOUNT)
ARD
DAMPERS
DATS
(ALTERNATE LOCATION)
Separate the zone panel cover from the base, and use the base as a template to drill mounting holes.
Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included).
2
Use two screws for attaching to a stud or roof truss, or
four screws for duct or drywall/plaster installations.
M24803

Honeywell TrueZONE HZ221 Specifications

General

Transformer	40 VA
Input Voltage	24 VAC
Compatibility	Conventional and Heat Pump systems
Operating Temperature	32°F to 150°F (0°C to 66°C)
Wire Gauge	18 to 22 AWG
Humidity Range	5% to 90% RH, non-condensing
