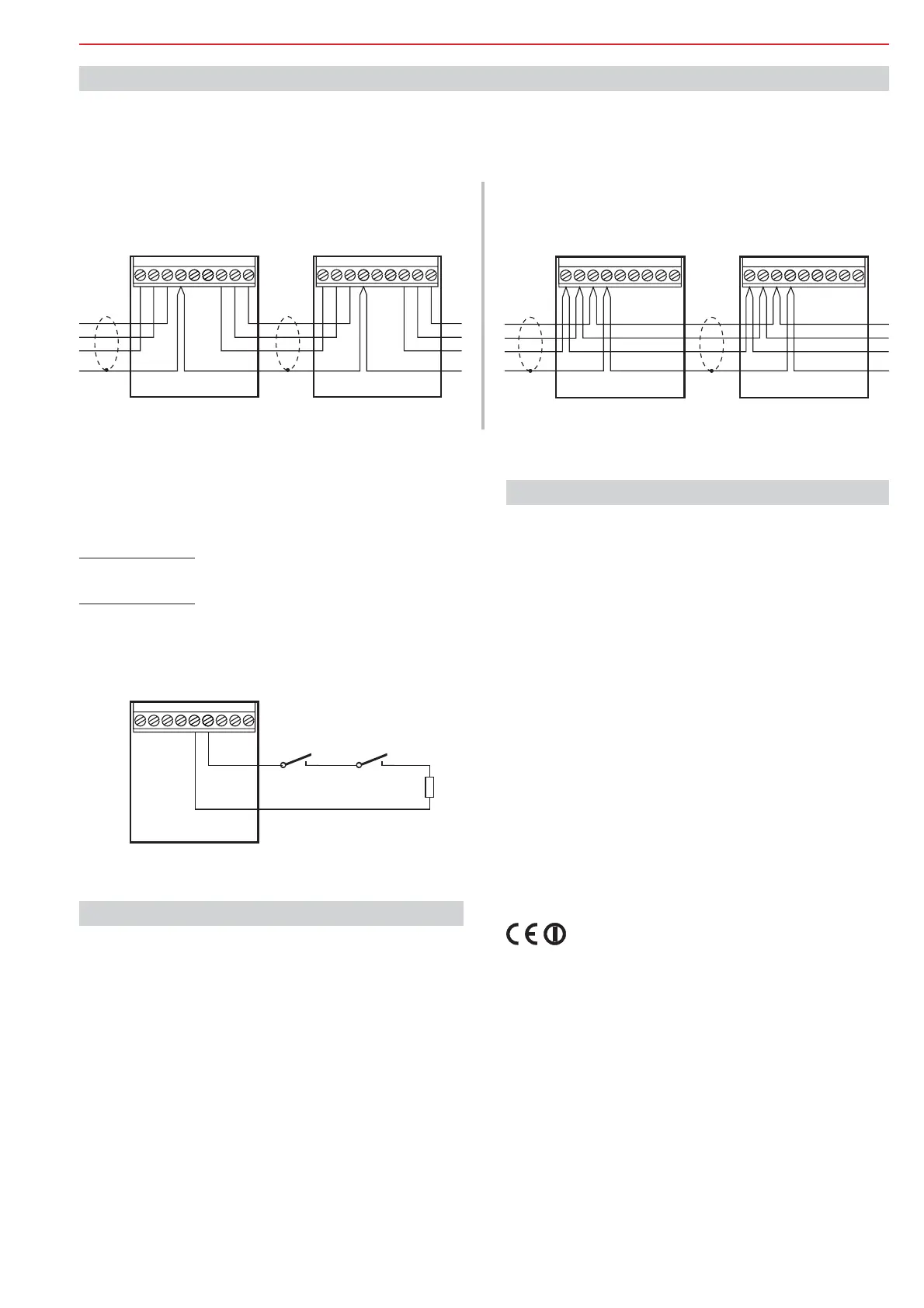

13. Connection diagram
13.1 Connection BUS-2 or BUS-1
With (fig. 9) in the case of a removed detector the voltage supply is interrupted for the rest of the BUS users. If this is not requested then
(fig. 10) is applicable.
Version 1
Version 2
15. Accessories
033390 Adjustable joint
033588
033391 Seal
Swivel range: Horizontal Vertical +4° up to -8°
(packaging unit = 20)
±20°,
±45°, ±20°
as per VdS and EN grade 2
Swivel range: Horizontal Vertical
not as per VdS and EN
Ball-and-socket set for wall and corner mounting
Version 1
Fig. 9
Version 2
Fig. 10
Detector 1 Detector n (max. 63)
0 V
Data
+12 V DC
0 V
Data
+12 V DC
Shield
0 V
Data
+12 V DC
0 V
Data
+12 V DC
Shield
ZONE
ZONE
Detector 1 Detector n (max. 63)
0 V
Data
+12 V DC
0 V
Data
+12 V DC
Shield
0 V
Data
+12 V DC
0 V
Data
+12 V DC
Shield
ZONE
ZONE
BUS-2
BUS-1
13.2 Detector group connection (ZONE)
This connection enables the integration of contacts in the BUS
system. (Not possible in SCM 3000 mode, see 3.2)
Operation on BUS-2:
Operation on BUS-1:
If the detector zone is not used, it should be programmed to detector
zone “zero”!
The detector zone is connected in an “OR" function with the detector
alarm. If the detector zone is not used, it must be terminated with
12k1.
Fig. 11
Contact(s)
potential-free detectors
without memory function
12k1
14. Technical data
Operating voltage U_b 12 V DC
Operating voltge range 8.0 V to 15 V DC
Current consumption at U_b=12 V DC:
PIR 0.6 mA (BUS-2)
3.0 mA (BUS-1)
Microwave 6 mA
LED 4 mA
Range (programmable)
PIR and MW together 8 / 11 / 13 / 15 m
PIR sensor temperature compensated
PIR sensitivity (programmable) normal / high
Anti-Mask function (only AM detector) up to 30 cm
Frequency microwave 9.35 GHz (X band)
Installation position vertical, optics at bottom
Protection class as per DIN 40 050 IP 30
Environmental class as per VdS II
Operating temperature range -10 °C to +55 °C
Storage temperature range -25 °C to +70 °C
Dimensions W x H x D 64 x 158 x 48 mm
Colour White
(similar to RAL 9010)
VSÖ approval 033442.20 VSÖ.E:W081006/28E
033443.20 VSÖ.E:GS-N081006/29E
The detectors Viewguard DUAL AM BUS-2/BUS-1, Item
no. 033442.20 and Viewguard DUAL BUS-2/BUS-1, Item
no. 033443.20 when used as intended, comply with the
basic requirements of Article 3 of the R&TTE Guideli-
ne1999/5/EU.
The EU conformity declaration can be downloaded at
"www.honeywell.com/security/de"
under Service-/ Download
The devices may only be sold and operated in the following countries:
Germany, Austria, Switzerland, Liechtenstein, Poland, Slovakia, Czech
Republic, Luxembourg, Turkey, Greece, Lithuania, Hungary, Belgium,
Netherlands, Bulgaria and Romania.
11
Detector
0 V
Data
+12 V DC
0 V
Data
+12 V DC
Shield
ZONE
Mounting and Connection Instructions Viewguard DUAL / AM BUS-2/BUS-1
BUS-2
BUS-1
BUS-2
BUS-1
BUS-2
BUS-1
