Honeywell VOYAGER 1250G Quick Start Guide

Note: Refer to your user’s guide for information about cleaning your
device.
Getting Started
Turn off the computer’s power before connecting the scanner, then
power up the computer once the scanner is fully connected.

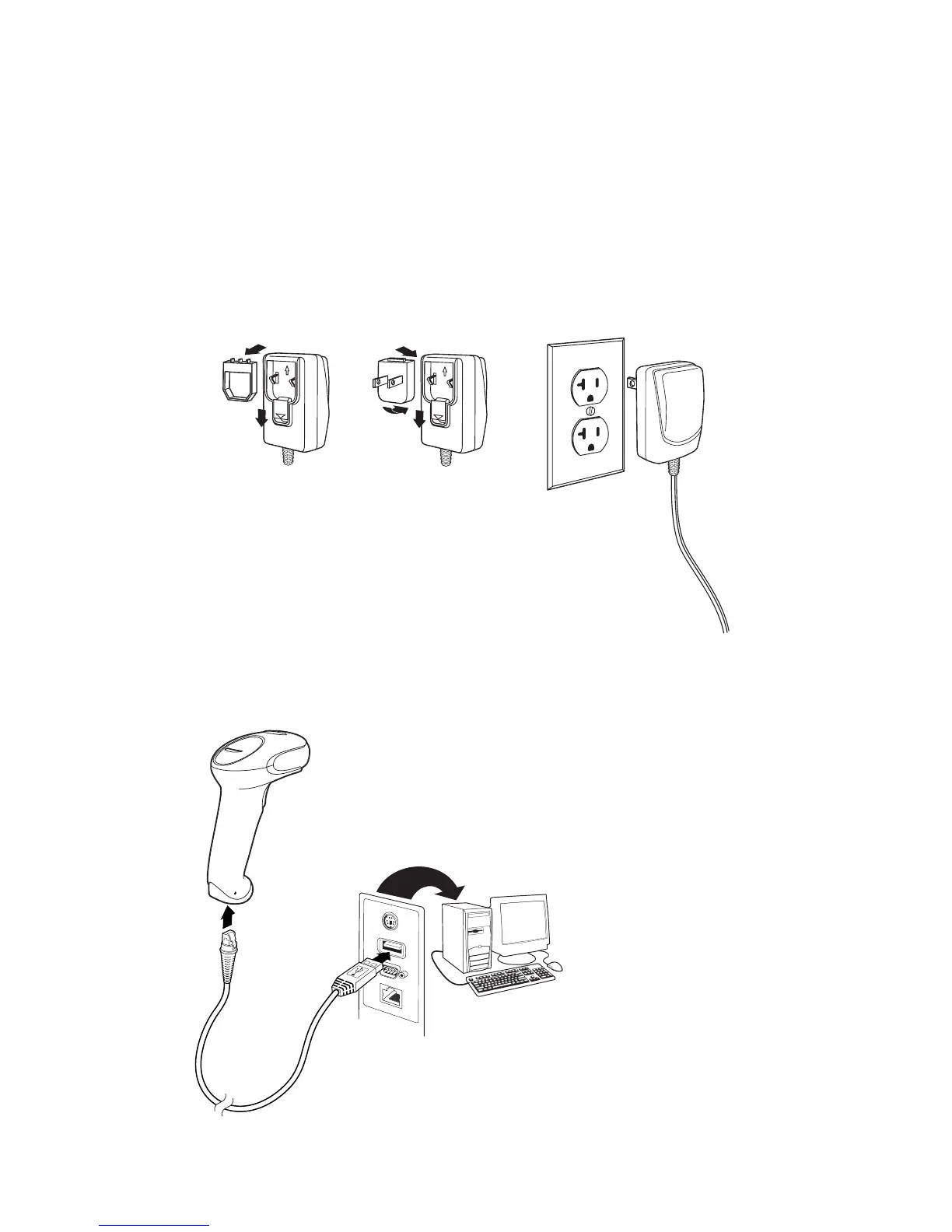

Power Supply Assembly (if included)
Connecting the Scanner
USB:

Honeywell VOYAGER 1250G Specifications

General

Sensor type	Laser
Scanner type	1D
Tilt angle range	-30 - 30 °
Decoding standards	1D, GS1
Pitch reading angle	-60 - 60 °
Light levels (direct sunlight)	0 - 75000 lx
Standard interfaces	USB, RS-232
Input voltage	5 V
Power consumption	140 mA
Shockproof	Yes
Dimensions (WxDxH)	168 x 60 x 74 mm
Product color	Black
International Protection (IP) code	IP41
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Weight	133 g
