W7212, W7213, W7214 ECONOMIZER LOGIC MODULES
19
63-2596—0
9

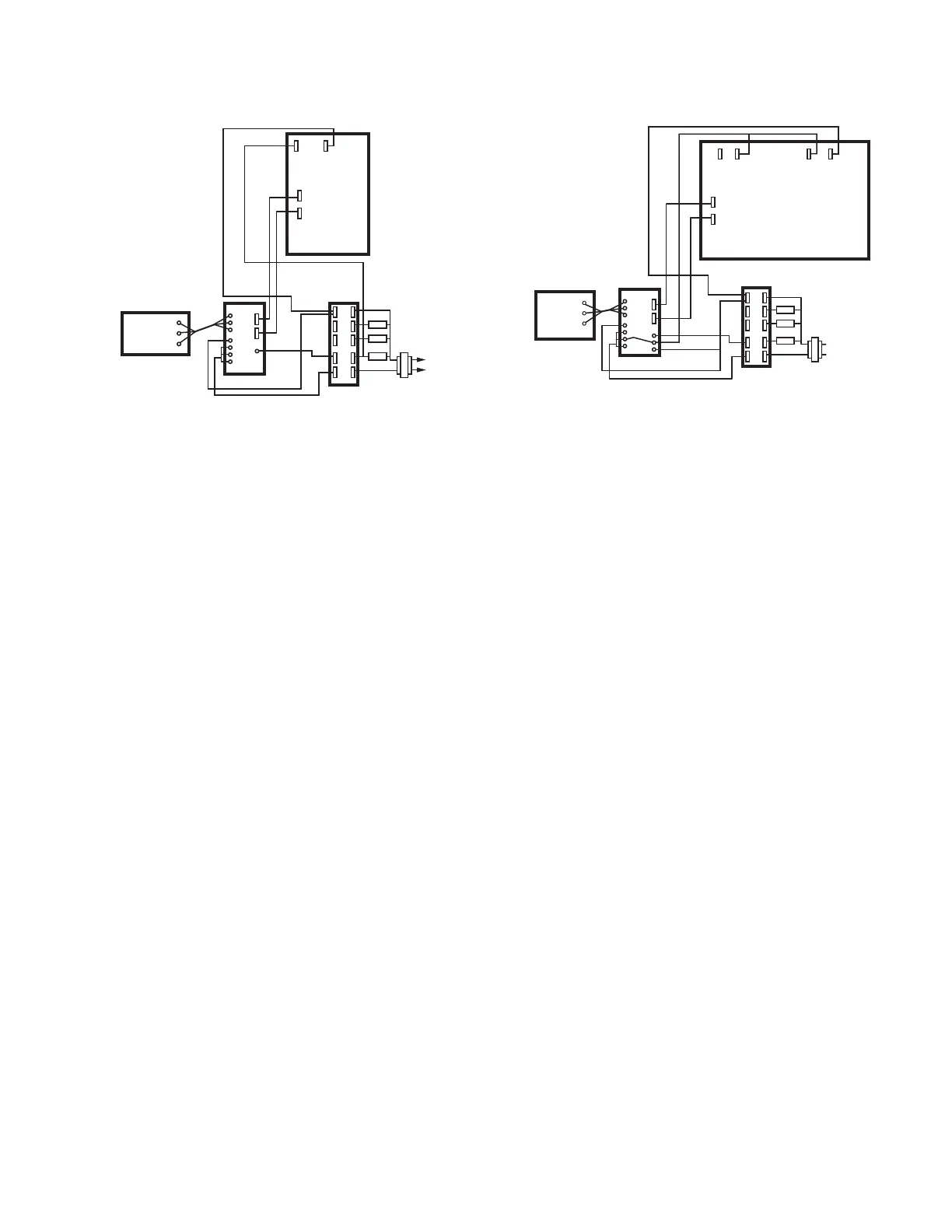

Fig. 16. Vision Pro IAQ
with EIM connected to a W7459
Economizer
Fig. 17. Vision Pro IAQ with EIM connected to a W7212
Economizer (Wit
h Morning W
arm-up Enabled)
M29974
VISION
PRO IAQ
1
3
Y1
Y2
G
RH
C
Y1
Y2
G
R
FAN
COM
HOT
COOL 1
COOL 2
W7459
EIM
HVAC EQUIP
TERMIN
AL
STRIP
TR
(HOT)
TR1
(COMM
ON)
RC
R
2
3
1
C
1
2
3
0400 = 2
0174 = E
0540 = 2
SELECT
OPTION
UNDER
“THERMOST
A
T
INSTALLER
SETUP”
VISION
PRO
IAQ
1
3
Y1
Y2
G
RH
C
Y1
Y2
G
R
FAN
COM
HOT
COOL 1
COOL 2
W7212
EIM
HVAC EQUIP
TERMINAL STRIP
TR
(HOT)
TR1
(COMMON)
RC
R
2
3
1
C
1
2
3
V1
T2
N1
N
M29973
0400 = 2
0174 = E
0540 = 2
SELECT
OPTION UNDER
“THERMOST
A
T
INSTALLER
SETUP”
18
20
Table of Contents
Features
1
Contents
1
Specifications
2
Ordering Information
2
Location and Mounting
3
Installation
3
Logic Module Dimensions
3
Direct Mounting of Module
3
C7400 Enthalpy Sensor and C7660 Dry Bulb Temperature Sensor
4
Demand Control Ventilation
4
Outdoor Air Sensing
4
Return Air Sensing
4
Wiring
5
Optional Applications
5
Representative Locations of Connected Economizer System Devices
5
Operation
6
Applicable Wiring Diagrams
6
W7212 Economizer I/O Logic
7
Settings and Adjustments
8
Demand Control Ventilation Setpoint
8
Adjusting Minimum and Maximum Positions
8
Minimum Position Adjustment
8
Enthalpy Changeover Setpoint
9
Outdoor Enthalpy Changeover Setpoint
9
Differential Enthalpy Changeover Setting
9
Exhaust Setpoint
9
S963B1128 Remote Potentiometer Used with Logic Module for Remote Damper Control
10
W7212A, W7213, W7214 Performance Characteristics for Enthalpy Changeover Settings
10
W7212C Performance Characteristics for Enthalpy Changeover Settings
11
W7212 Used with M7215 Damper Motor and T7300 Thermostat
12
W7212 Used with M7215 Damper Motor and T7350 Thermostat
13
W7212 Used with M7215 Damper Motor and TB7220 or TB8220 Thermostats
14
W7212 Used in Single-Stage Cooling System with Single Enthalpy Changeover and Honeywell Actuator and Time Clock for Occupancy
15
W7212 Used in Two-Stage Cooling System with Honeywell Series 72 Actuator and Time Clock for Occupancy
16
W7212 Controlling Parallel-Wired Honeywell Series 72 Actuators and Time Clock for Occupancy
17
W7213, W7214 Controlling Heat Pump System
18
Vision Pro IAQ with EIM Connected to a W7459 Economizer
19
Vision Pro IAQ with EIM Connected to a W7212
19
Troubleshooting
20
Checkout for W7212, W7213, W7214 Economizers Connected to Honeywell Actuator
20
Meter Location for Checkout and Troubleshooting (W7212 Shown)
20
