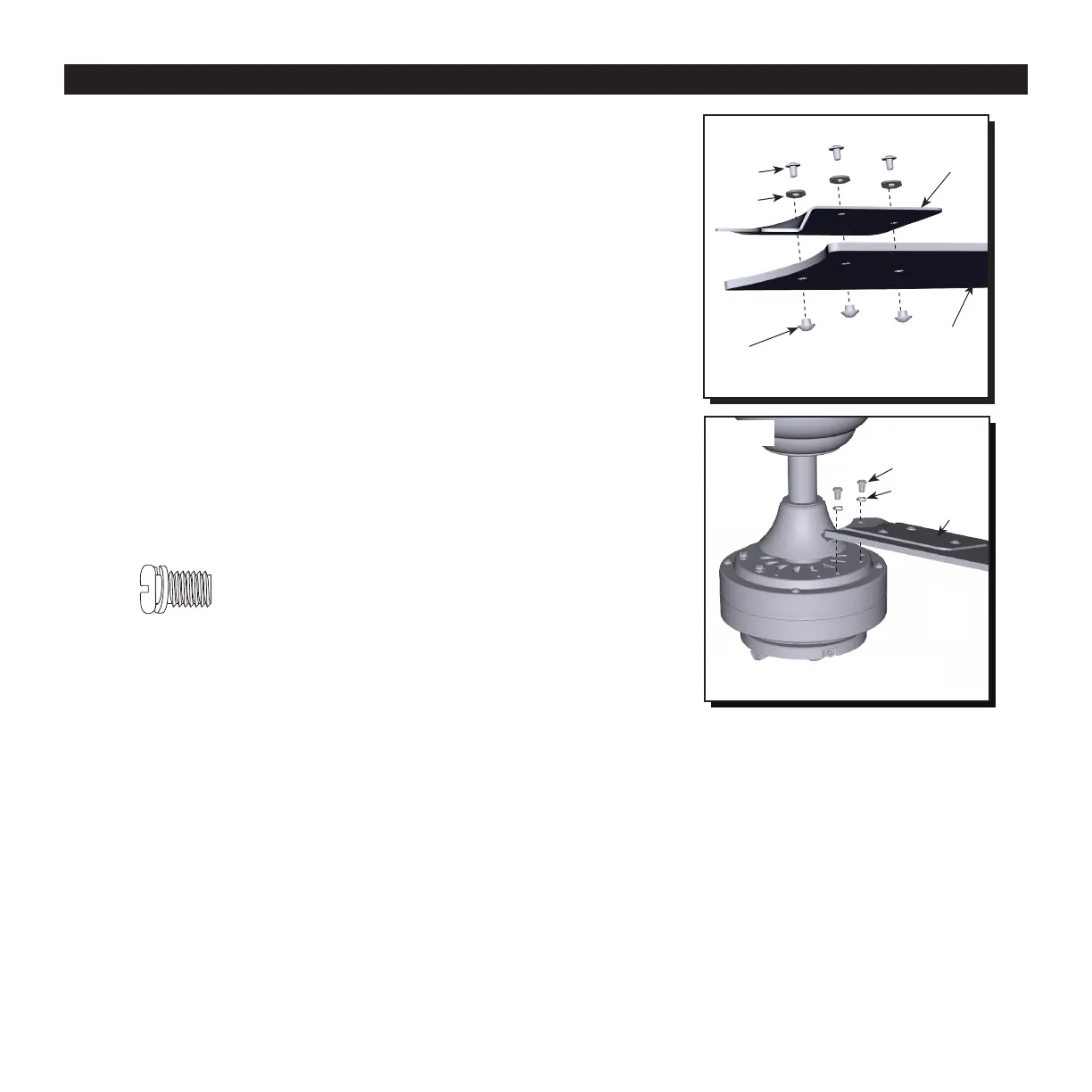

BLADE INSTALLATION
Fig. 18
Blade Arm
Blade
Screw
Blade
Washer
Screw
Cap
Blade
Blade Arm
Motor Screw
Lock Washer
Fig. 17
Motor Screw
with Washer
17. Insert the blade screw with blade washer
through the blade arm, blade and into the screw
cap. Tighten each blade screw with a Phillips
screwdriver (not included) starting with the one
in the middle. Repeat this step for the remaining
blades and blade arms (Fig. 17).
18. Insert two previously removed motor screws with
washers through one blade arm into the motor
assembly. Tighten motor screws with a Phillips
screwdriver. Repeat for the remaining blade arms,
making sure to completely secure each blade arm
before proceeding to the next (Fig. 18).
