14. Connect supply and fan wires according to the
diagram (Fig. 14) and these steps:
• Connect the Green wires from the fan and
mounting bracket to the Bare/Green (ground)
supply wire.
• Connect the Black and Blue wire from the fan to
the Black (hot) supply wire.
• Connect the White wire from the fan to the White
(neutral) supply wire.
Secure all wiring connections with wire connectors
and push all connected wires back into the outlet
box. Important: Ensure black and white wire
connections are on opposite sides of the outlet
box.
Note: The black fan wire is power for fan. The blue
fan wire is power for the light. The white wire from
the fan is common/neutral. The green wires from the
fan and mounting bracket are ground wires.
15. (Optional) If a second hot power wire is available
from outlet box, connect it to the blue (light power)
wire from the fan for separate light and fan control
(Fig. 15).
a
CAUTION
WARNING
If house wires are different colors than referred to in
the following steps, consult a professional electrician
to determine wiring. Incorrect wire connection can
damage the fan and could cause re or injury.
Be sure outlet box is properly grounded or that a
ground (green or bare) wire is present.
! !
!
!
Black (Hot)
White (Neutral)
Bare/Green (Ground)
Black Blue White
Green
OFF
Black (live)
Second Wire (live)
White (neutral)
Bare/Green (ground)
Black Blue White Green
OFF OFF

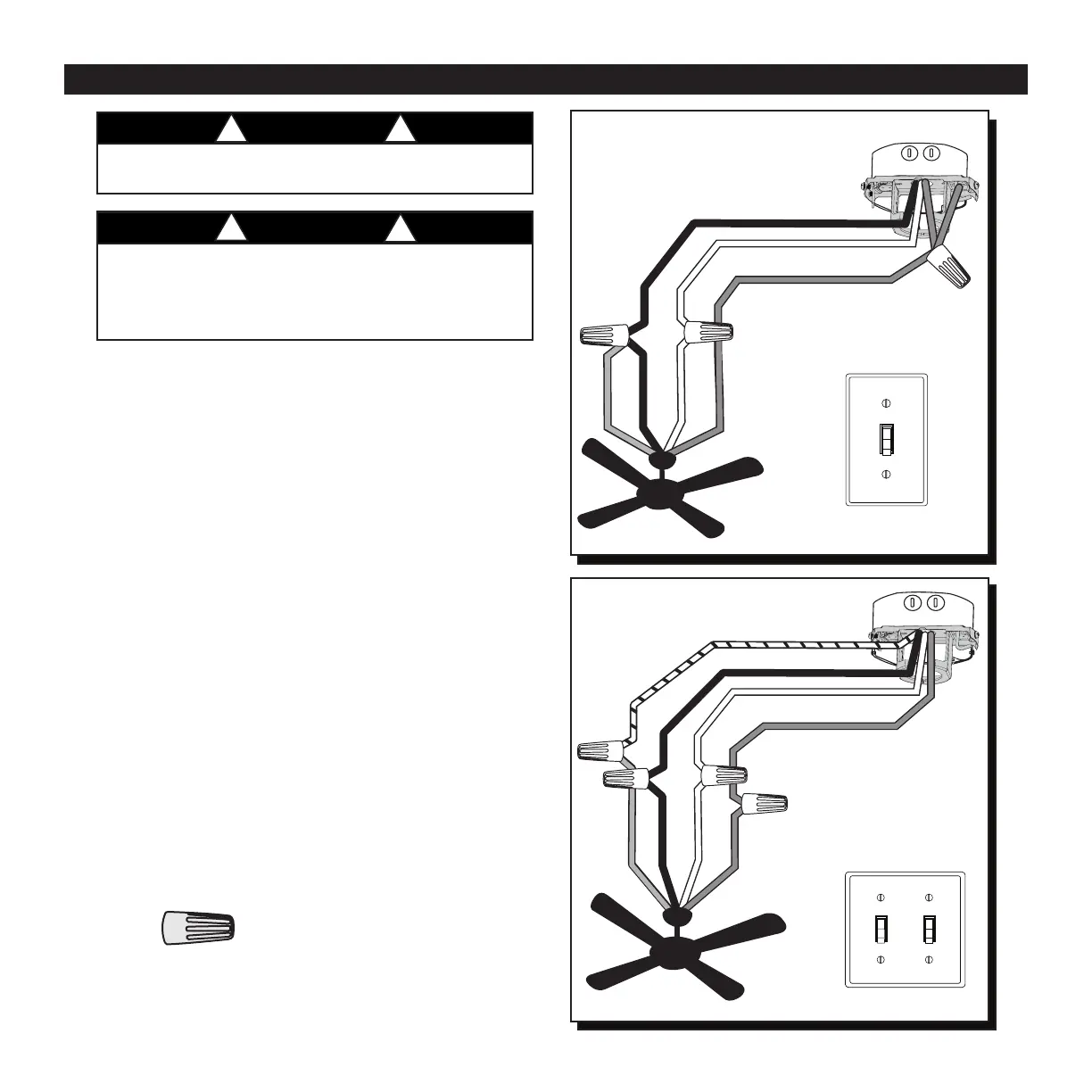

Fig. 14
Fig. 15
10
WIRING
