Honeywell XLS-REL User Manual

Installing the XLS-REL
1.10 XLS-REL Technical Reference Manual

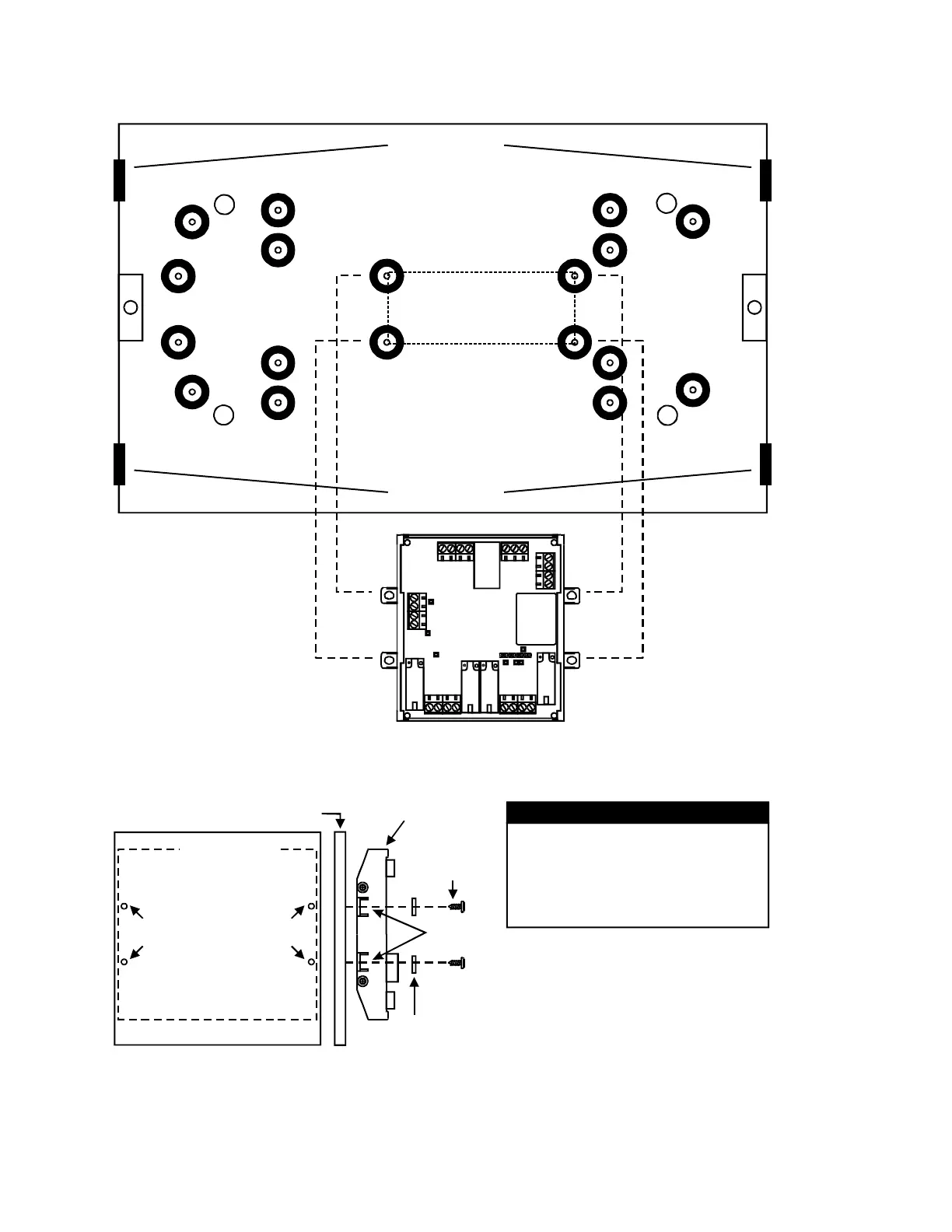

Figure 1-3: MFC-A/XLS-REL footprint
Figure 1-4: XLS-REL mounting holes in compatible cabinets
Releasing Module
footprint
MFC-A
Conduit knockout
Conduit knockout
RELEASE024.CDR
#6 Flat Washers
#6-32
Self-tapping
Screws
Releasing Module
Mounting space
See compatible enclosure installation
sheets for the routing of power-limited
and nonpower-limited wiring.
Mounting hole diameter is
0.125 in (or 3.175 mm)
Interior surface of enclosure
Interior surface of enclosure
Mark the mounting hole locations here.
2
[1]
Notes
[1]
RELEASE036.CDR
