Installing the XLS-REL
1.12 XLS-REL Technical Reference Manual

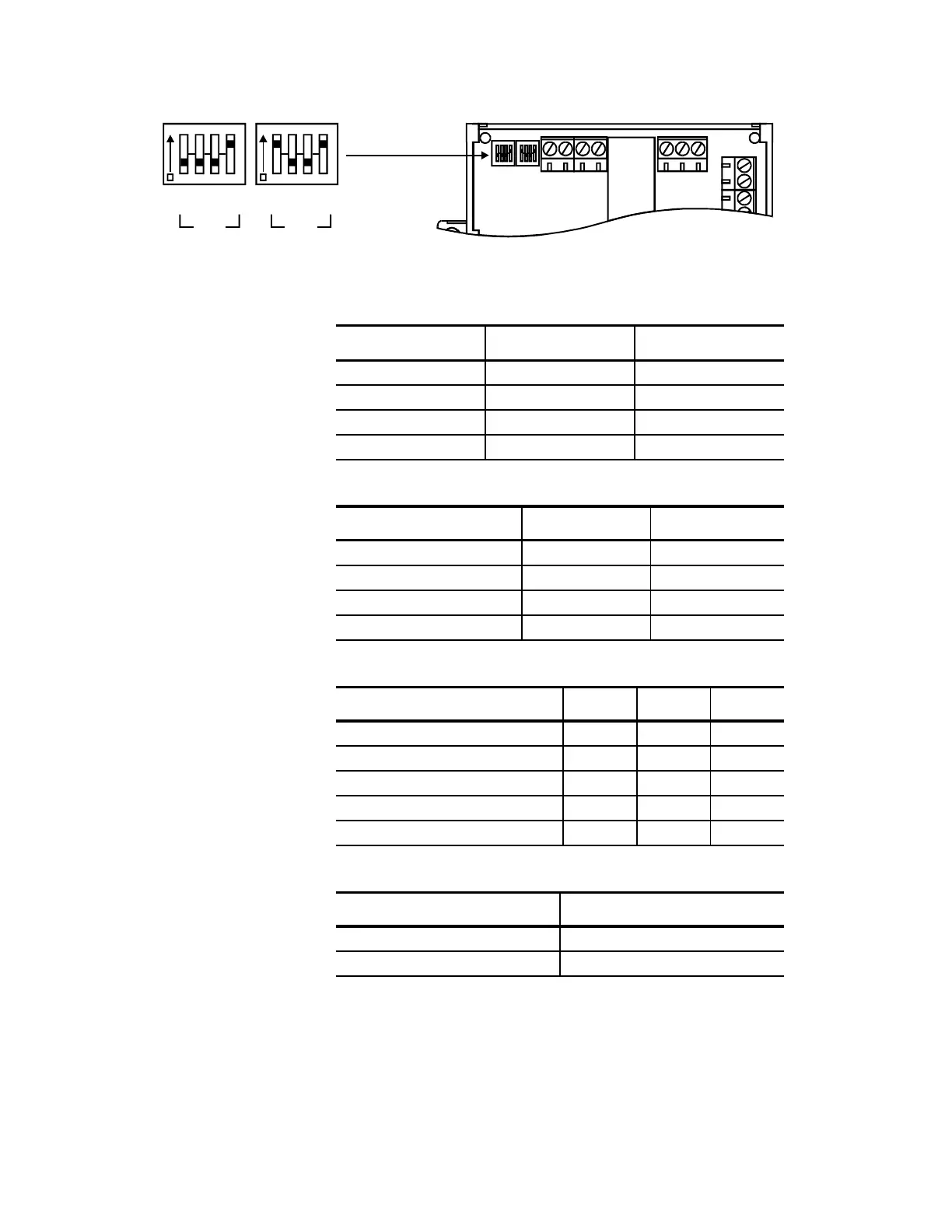

Figure 1-5: XLS-REL DIP switches
Table 1-8: Abort mode settings
Abort mode SW1 SW2
1 (Default) 0 0
201
3 (IRI) 1 0
4 (International) 1 1
Table 1-9: Manual delay time settings
Time delay SW3 SW4
No delay 0 0
10 seconds (Default) 0 1
20 seconds 1 0
30 seconds 1 1
Table 1-10: Automatic delay time settings
Time delay SW5 SW6 SW7
10 seconds 0 0 0
20 seconds 0 0 1
30 seconds 0 1 0
40 seconds 0 1 1
50 seconds (Default) 1 0 0
Table 1-11: Abort delay time settings
Time delay SW8
No delay 0
10 seconds (Default) 1
ON ON
0001 1001
SW
1234 5678
1 = On
0 = Off
SW
TB3 TB2
TB6
Releasing
Module
RELEASE026.CDR
