Horizon Hobby Apprentice STS E-flite - Box Contents and Specifications; Box Contents List; Aircraft Specifications

EN
3
Table of ContentsSpecifi cations
If you own this product, you may be required to register with the FAA. For up-to-
date information on how to register with the FAA, please visit
https://registermyuas.faa.gov/. For additional assistance on regulations and
guidance on UAS usage, visit knowbeforeyoufl y.org/.
From the box to the air (No LAS or GPS Module) .....................................................4
Charger Warnings ..................................................................................................4
Charge the Flight Battery .......................................................................................5
Transmitter ............................................................................................................6
Transmitter Setup (BNF) .........................................................................................7
Dual Rates .............................................................................................................7
Assemble the Aircraft .............................................................................................8
Transmitter and Receiver Binding .........................................................................10
Flight Battery Installation, SAFE system and Electronic
Speed Control (ESC) Arming .................................................................................11
Center of Gravity (CG) ..........................................................................................11
Control Direction Test ...........................................................................................12
Choose a Flying Field ...........................................................................................12
Range Test ...........................................................................................................13
Install the Propeller ..............................................................................................14
Flying ..................................................................................................................15
Landing ...............................................................................................................20
Water Takeoff and Landing Using the Optional Float Set .......................................20
Post Flight............................................................................................................20
Factory settings for the Control Horns and Servo Arms .........................................21
AS3X
®
System Trouble Shooting Guide (without GPS) ...........................................22
Troubleshooting Guide (without GPS) ....................................................................22
Optional Landing Assist Sensor (LAS) Upgrade .....................................................23
Optional SAFE
+
GPS Upgrade ..............................................................................24
LED Indications ....................................................................................................32
Service and Repairs .............................................................................................33
Replacement Parts ...............................................................................................34
Recommended Parts ............................................................................................34
Optional Parts ......................................................................................................34
AMA National Model Aircraft Safety Code .............................................................35
Limited Warranty .................................................................................................36
Warranty and Service Contact Information ...........................................................36
FCC Information ...................................................................................................37
IC Information ......................................................................................................37
Compliance Information for the European Union ...................................................37

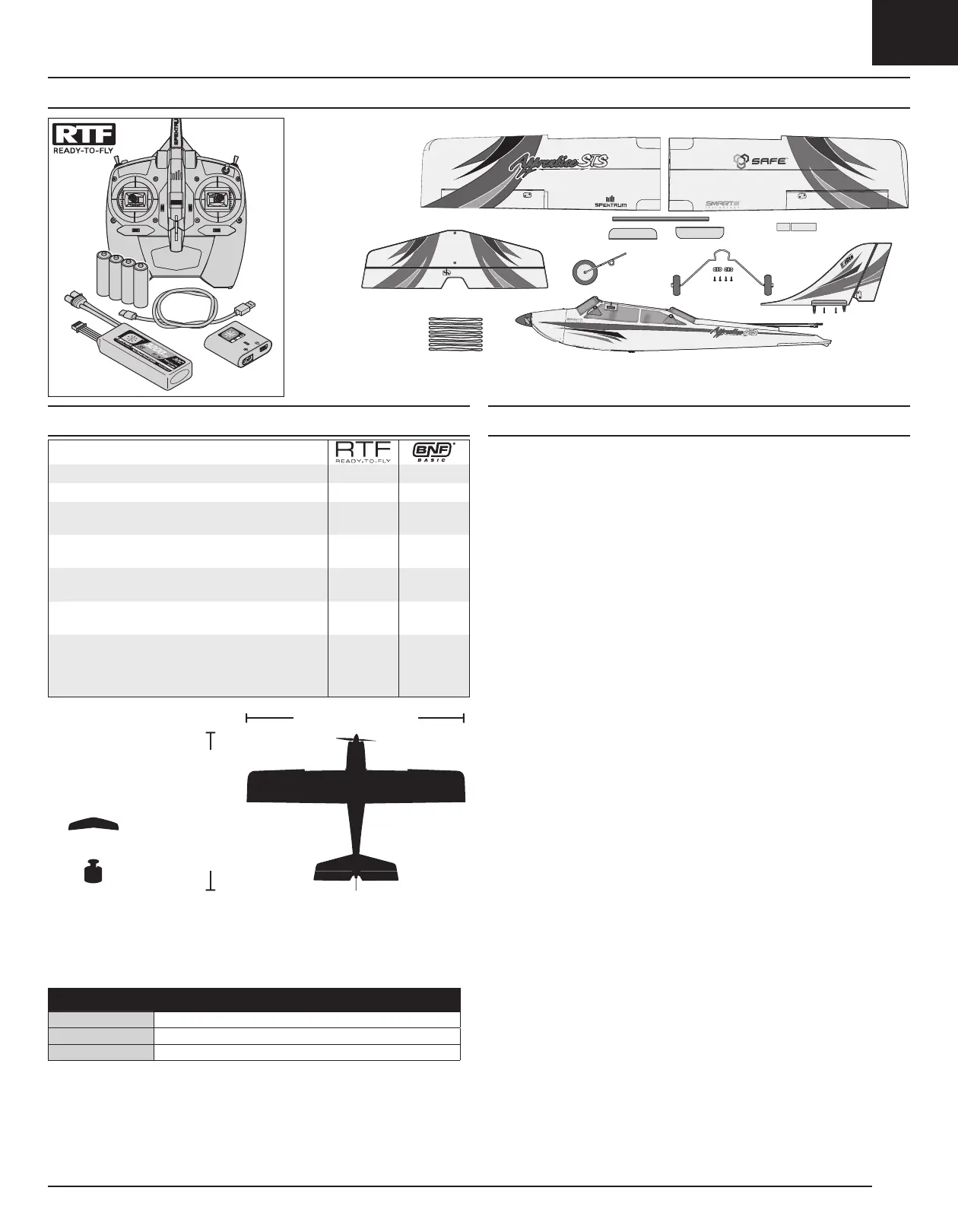

Box Contents
Motor: 840Kv Brushless Outrunner (EFLM7450) Included Included
ESC: 30-Amp Smart ESC; Apprentice STS (EFLA1030FB) Installed Installed
Servos: (4) 37g Standard Servo (EFLR7150)
(2) 13g Digital MG Micro Servo (EFLR7155)
Installed Installed
Receiver: Spektrum
™
DSMX SRXL2
™
Receiver w/
Connector Installed (SPM4650C)
Installed Installed
Recommended Battery: 3200mAh 11.1V 3S Smart
IC3
™
30C Li-Po (SPMX32003S30)
Included Required
Recommended Battery Charger:
3-cell Li-Po battery balancing charger
Included Required
Recommended Transmitter:
Full-Range 2.4GHz with Spektrum
™
DSM2
®
/DSMX
®
technology with programmable mixing and adjustable dual
rates
Included
Required to
Complete
49.0 oz
(1390 g)
42.5 inches (1080mm)
59.0 inches (1500mm)
515 in²
(33.2 dm²)
RECEIVER BIND INFORMATION
Channels
6
Frequency 2404 – 2476 MHz
Compatibility DSM2 and DSMX
