EN
Apprentice STS
8

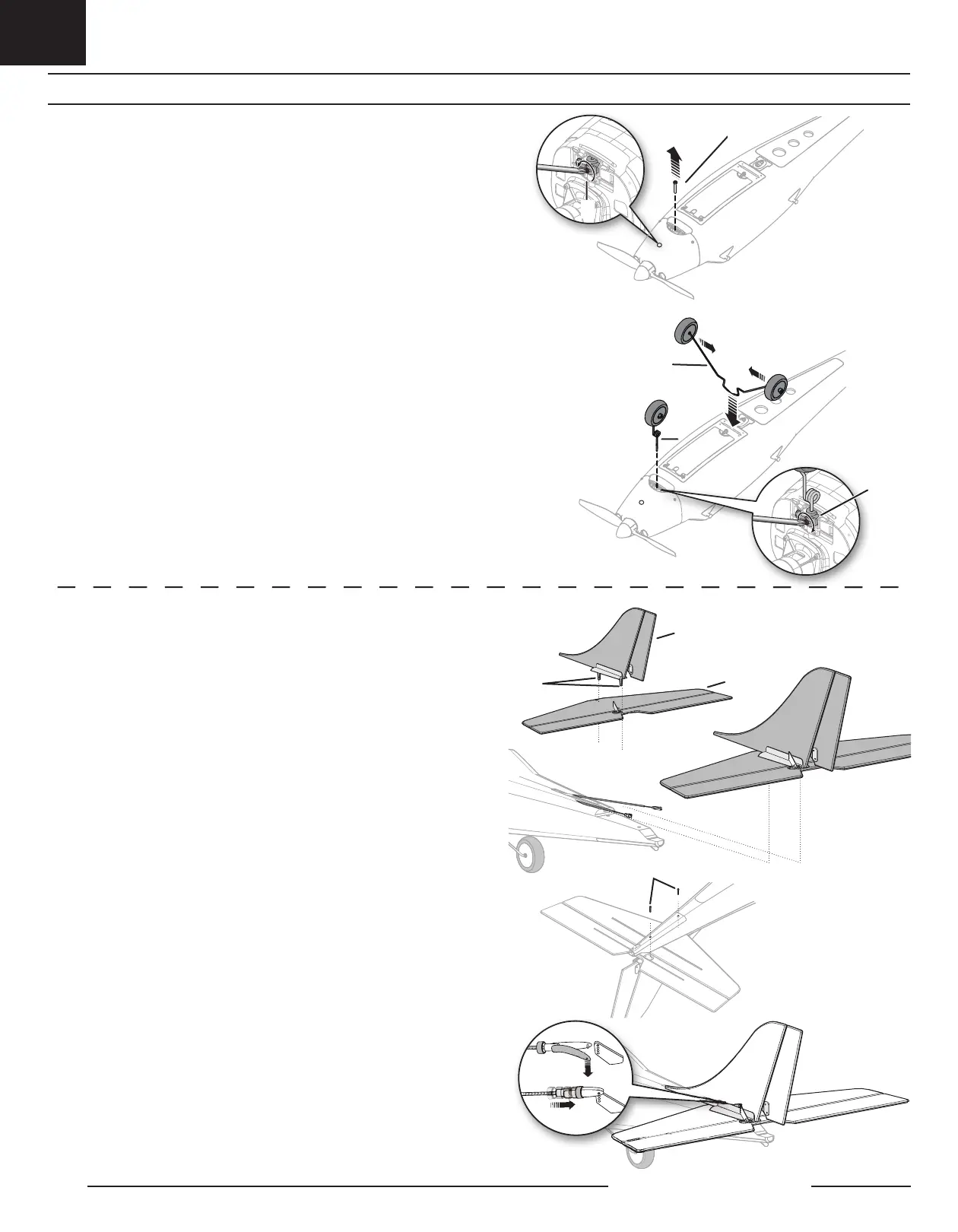

Assemble the Aircraft
Landing Gear Installation
1. Turn the model so you can see the bottom of the fuselage.
2. Insert a screwdriver through the hole on the underside of the cowl to loosen the
screw (A) in the nose gear steering arm.
3. Remove the plug screw (B) from the nose gear steering arm hole and insert the
nose gear (C) (fl at spot facing to the front) fully in the mount (D).
4. Fully tighten the screw onto the fl at spot of the strut.
5. Push together the main landing gear struts (E) and insert the top loop into the
slot in the fuselage as shown.
6. Disassemble in reverse order.
A
D
C
E
Tail Installation
1. Press fi t the 2 pins (A) of the vertical stabilizer (B) throght the holes of
horizontal stabilizer (C).
2. Install the tail assembly on the fuselage under the linkages as shown.
3. Carefully align the 2 pins of the tail assembly with the fuselage holes and press
fi t the assembly into place.
4. Under the fuselage, use 2 screws (D) to secure the tail assembly to the
fuselage. Tighten the screws, but do not break the plastic.
5. Connect the respective clevises in the outermost holes in the rudder and
elevator control horns. Refer to the clevis adjustment instructions to center the
rudder and elevators.
6. Disassemble in reverse order.
A
D
B
C
B
