12.2.3 Pulse Width Measurement
In Pulse Width Measurement mode, the high-speed input can measure the width or period of a
pulse stream in one of four modes and provides a continuous indication of the last sampled
value.
Width High 1μs Counts – In this sub-mode the accumulator value will contain the number
of 1μs counts the pulse is high.
Width Low 1μs Counts - In this sub-mode the accumulator value will contain the number
of 1μs counts the pulse is low.

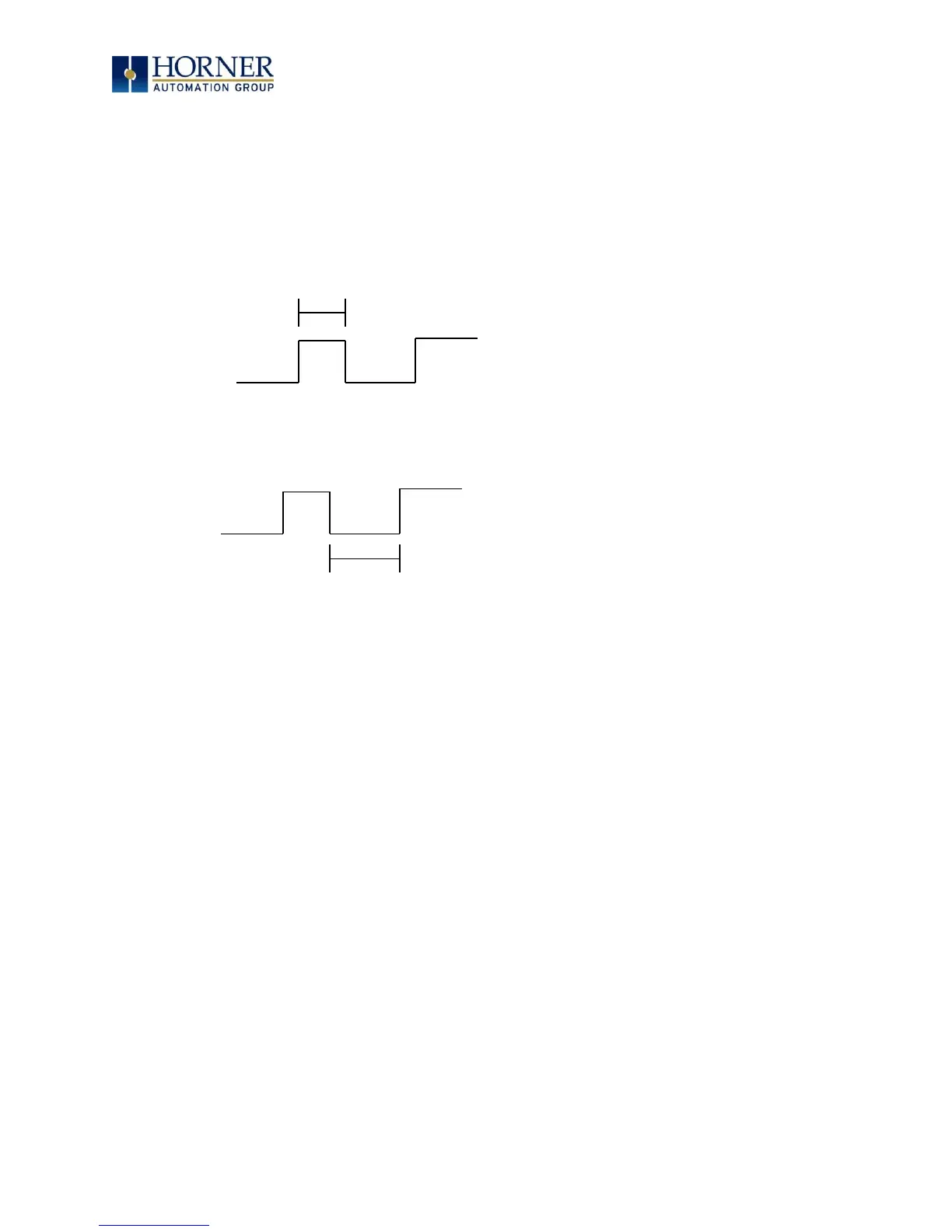

Width High
Width Low
