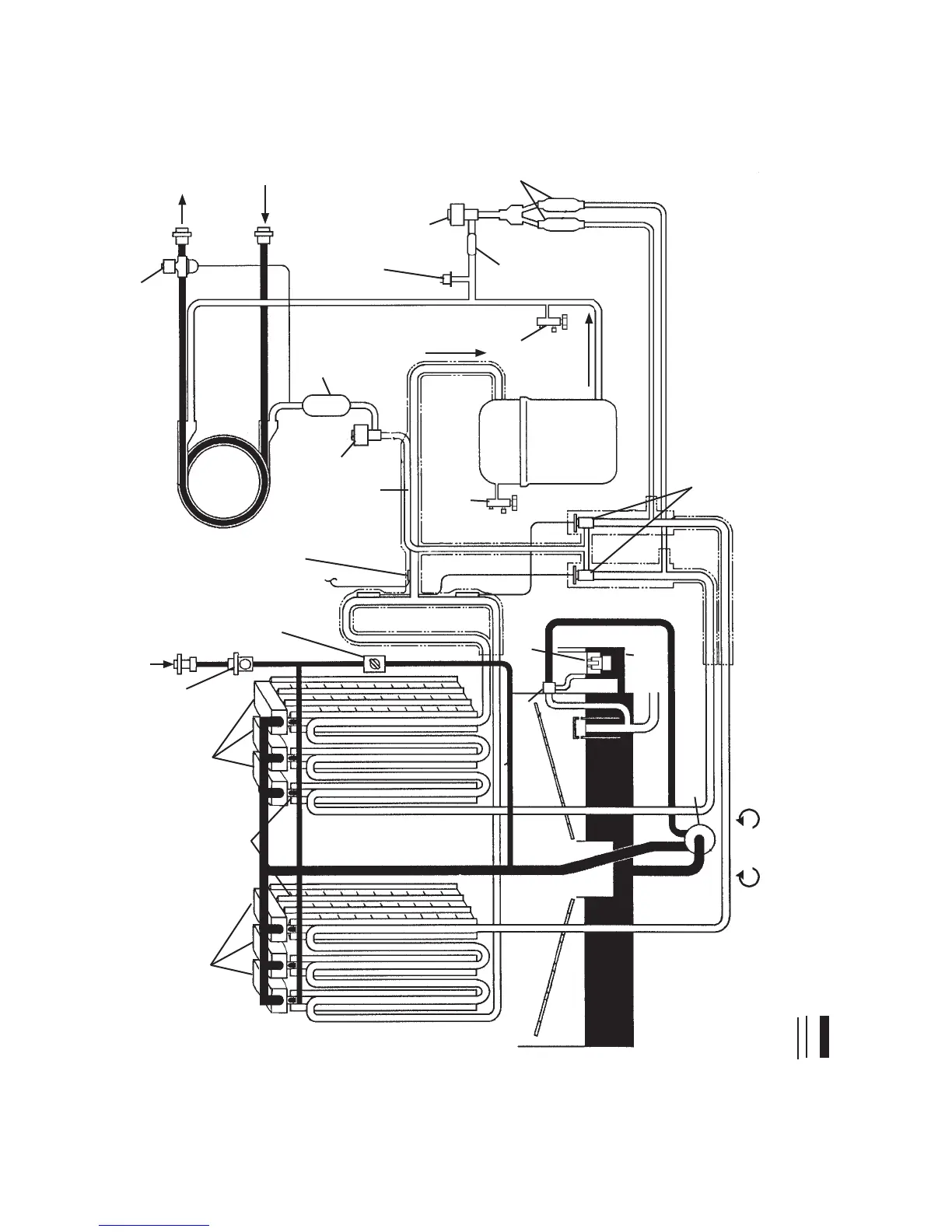

2. Water-Cooled Models (SWH/3/-M)
Water Supply
Cleaning Valve
Float Switch
Drain
Check Valve
Thermostatic Expansion Valves
Compressor
Hot Gas
Valve
Check
Valves
High-Pressure
Switch
Strainer
Drier
Condenser
Evaporator
Service
Valve
Discharge Line
Suction Line
Water Pump
Thermistor
Spray Tubes
Inlet Water Valve
Pump-Out
Water
Tank
Service
Valve
Refrigeration Circuit
Water Circuit
Liquid Line
Valve
Spray Tubes
Water Supply
Drain/Return
Water Regulating Valve
Heat Exchanger
Freeze/Harvest
Pump Timer
