Hoshizaki KM-1301SWH/3 Service Manual

8
I. Construction and Water/Refrigeration Circuit Diagram

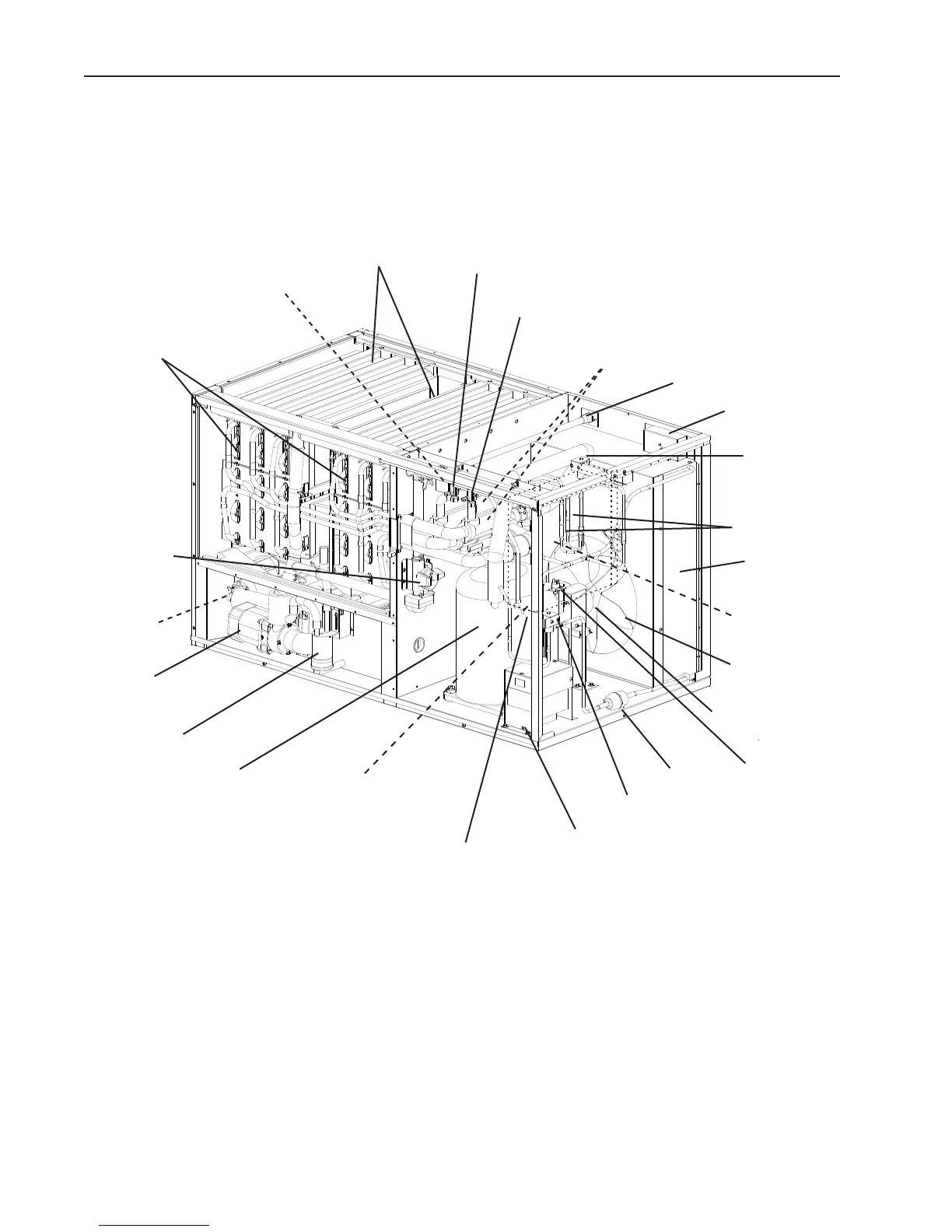

A. KM Construction
1. Air-Cooled Models (SAH/3)
Evaporator Assembly
Spray Tubes
Inlet Water Valve
Water Supply Inlet
Hot Gas Valve
Junction Box
Condenser
Check Valves
(refrigeration)
Control Box
Drier
Transformer Box (KM-1301SAH
Auxiliary Code D-1 and Later and
All 3 phase model)
Control Switch
Thermostatic
Bin Control
Compressor
Cleaning Valve
Float Switch
Water Pump
Check Valve
(water)
Thermostatic Expansion Valves
Liquid Line Valve
Fan Motor
Fan Blade
Low-Side Service Valve
High-Side Service Valve
Model Shown: KM-1301SAH3
High-Pressure
Switch

Hoshizaki KM-1301SWH/3 Specifications

General

Brand	Hoshizaki
Model	KM-1301SWH/3
Category	Ice Maker
Language	English
