CONNECTING THE LOW END ADAPTOR - 2007 Version
The photos below may show a differnet model to the one you are programming but the Low End Adaptor
connection is the same.

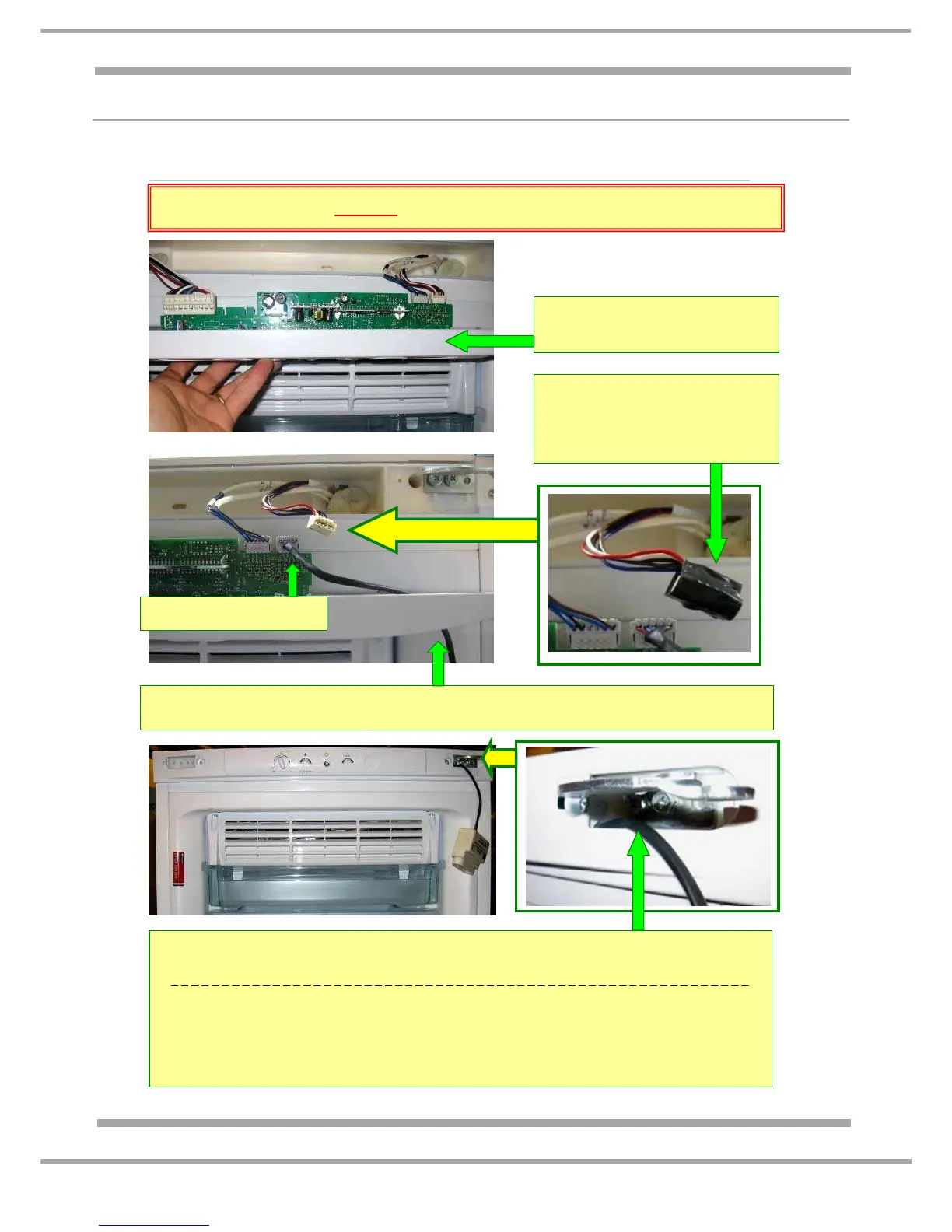

Step 1 - Lower the control panel to
access the module and wiring.
Step 2 - Disconnect and insulate
the IDC connector block from
module edge connection E3. This
will prevent it from shorting on the
module whilst disconnected.
Step 4 - Temporary reassemble the control panel before plugging the appliance in.
To prevent damage to the harness of the adaptor key, route it under the screw fixing post of the
control panel.
NOTE: Unplug the appliance from the mains supply before disconnecting the adaptor key. The
original IDC connector block, which you disconnected and taped up earlier in Step 2 above,
does not need to be reconnected. This connection was for production purposes only and has no
other function. Therefore keep the edge connector insulated and safely positioned in the control
housing.
EDGE CONNECTION E3
Step 3 - Route the adaptor key through top right hinge opening in the control panel
and connect to edge connection E3 on the module.
BEFORE PROCEEDING UNPLUG THE APPLIANCE FROM THE ELECTRICITY SUPPLY
