HotSpring Landmark - Controls and Equipment; LANDMARK (Model S)

Controls and Equipment Page 6
Landmark
®
Model S

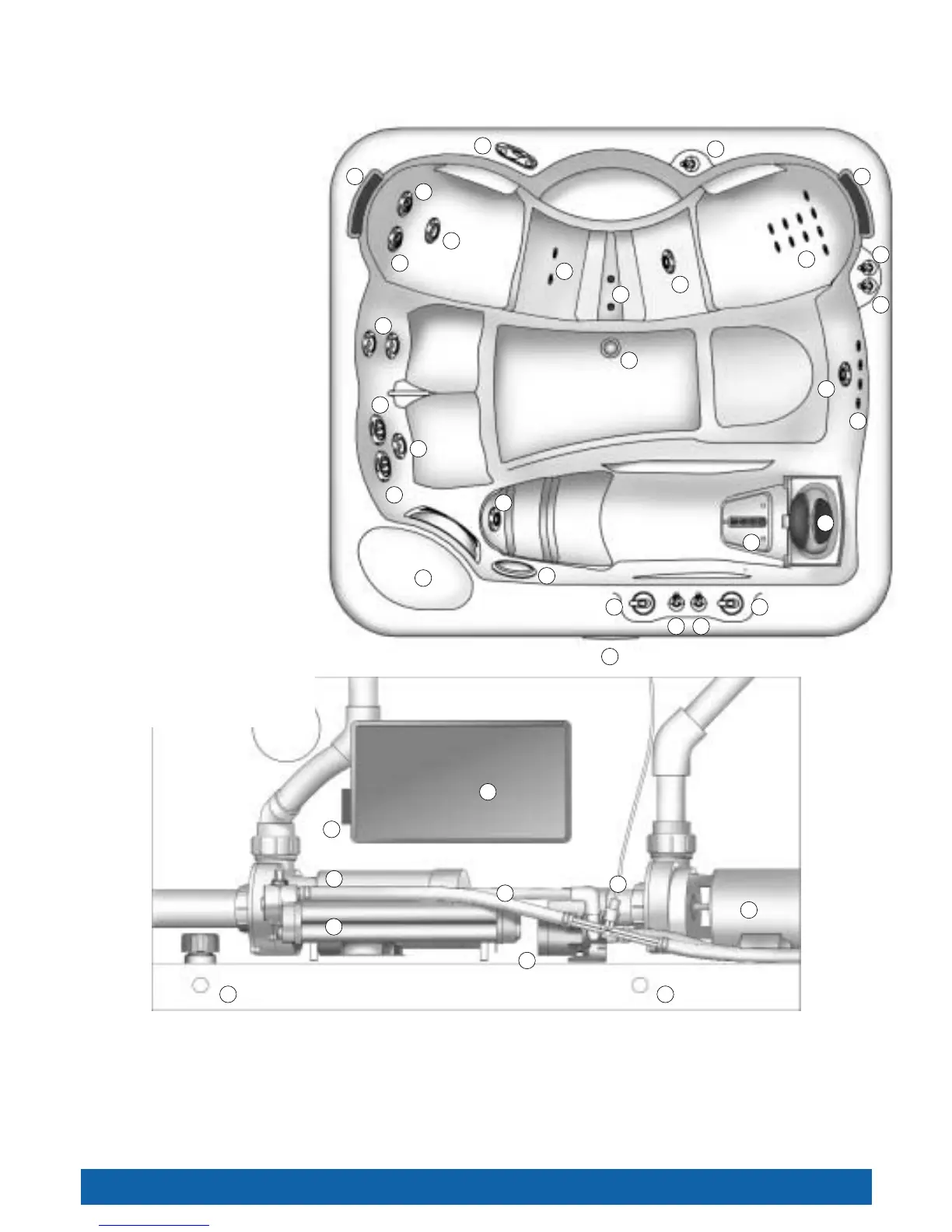

1. Wavemaster
™
jet pump
2. No-Fault
®
6000 heater
3. Silent Flo 5000
®
circulation pump
4. IQ 2020
™
control box
5. Ozone injector (optional accessory)
6. Main drain valve
7. Secondary drain
8. Heater thermal cut-off
9. Bonding terminal
EQUIPMENT COMPARTMENT
D
D
Q
Q
R
K
K
K
K
L
N
P
H
H
I
I
6
7
8
1
1
9
4
2
5
3
I
J
A
O
A
B
E
C
M
F
F
F
G
G
OVERHEAD VIEW
A. SmartJet
®
system lever
B. Moto-Massage
®
jet Comfort
Control
®
system lever
C. JetStream
®
jet Comfort
Control
®
system lever
D. Precision
®
jets Comfort
Control
®
system lever
E. DreamJet
®
Comfort Control
®
system lever
F. Hydromassage jet with
directional nozzle
G. Hydromassage jet with
rotary nozzle
H. Soothing Seven
®
jets
I. JetStream
®
jet
J. Moto-Massage
®
jet
K. Precision
®
jets
L. Heater return and spa drain
M. Light lens
N. Filter compartment
O. Main control panel
P. Auxiliary control panel
Q. Pillow
R. DreamJet
®
massage pillow
