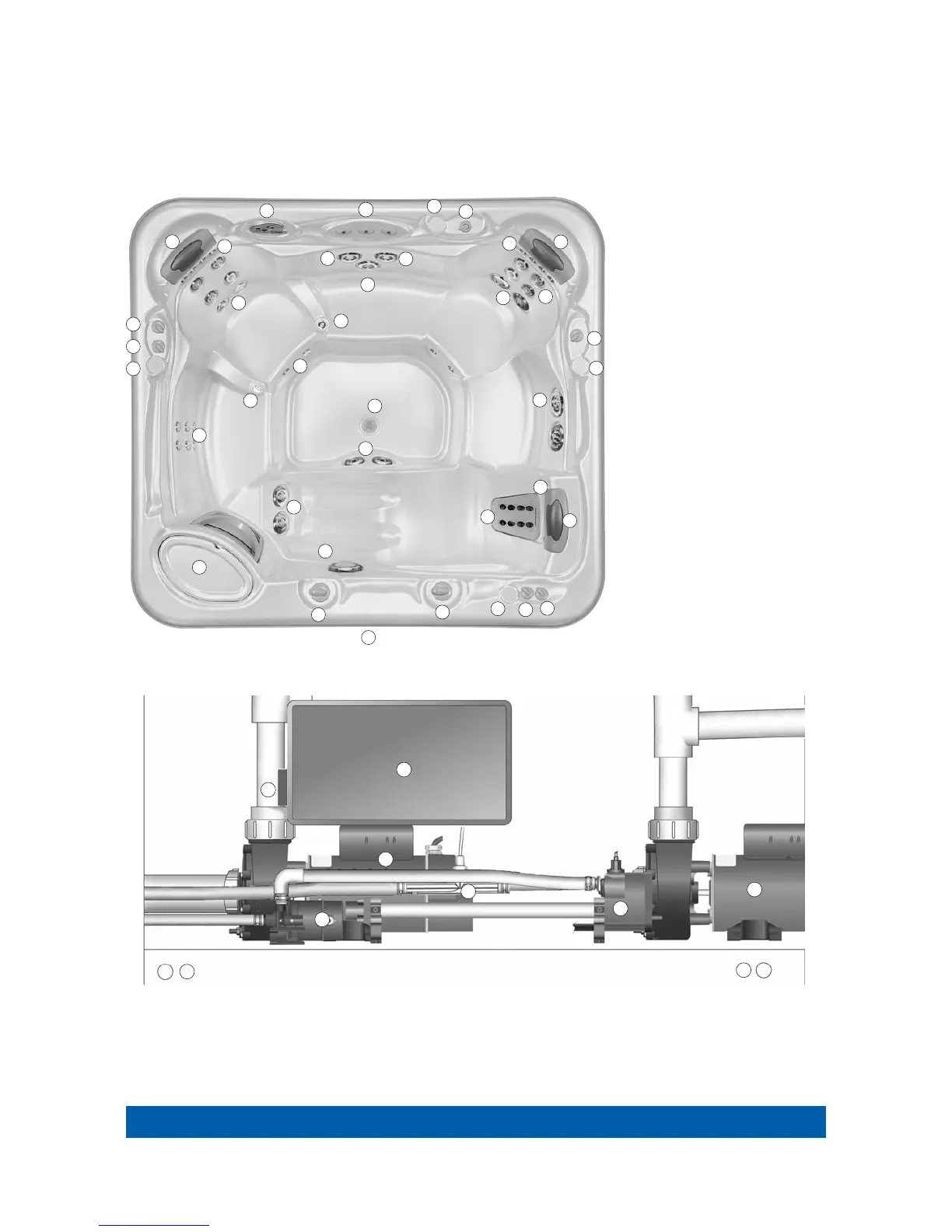

HotSpring Portable Spaa - Controls and Equipment Overview; Model Component Identification

Page 14
VISTA
®
(MODEL SS)
1. Wavemaster
®
jet pump
2. No-Fault
®
heater
3. Silent Flo 5000
®
circulation pump
4. IQ 2020
™
control box
5. Ozone injector
6. Main drain valve
7. Secondary drain
8. Bonding terminal
EQUIPMENT COMPARTMENT
C
Q
G
R
K
K
L
N
P
H
J
J
6
7
1
1
4
2
5
3
I
J
A
O
A
B
D
M
E
E
E
F
F
OVERHEAD VIEW
A. SmartJet
®
system lever
B. Moto-Massage
®
jet Comfort
Control
®
system lever
C. Precision
®
jets Comfort
Control system lever
D. Water feature lever
E. Hydromassage jet with
directional nozzle
F. Hydromassage jet with rotary
nozzle
G. Soothing Seven
®
jets
H. JetStream
®
jet
I. Moto-Massage
®
DX jet
J. Precision jets
K. HydroStream
®
jet
L. Heater return and spa drain
M. Light lens
N. Filter compartment
O. Main control panel
P. Auxiliary control panel
Q. Pillow
R. Cup holder
S. Water Feature
C
C
C
J
Q
Q
S
R
R
R
8
J
J
J
Controls and Equipment
