HotSpring Portable Spaa - JETSETTER (Model J)

Page 22
JETSETTER
®
(MODEL J)
1. Wavemaster
®
jet pump
2. No-Fault
®
heater
3. Silent Flo 5000
®
circulation pump
4. IQ 2020
™
control box
5. Ozone injector
6. Main drain valve
7. Secondary drain
8. Bonding terminal

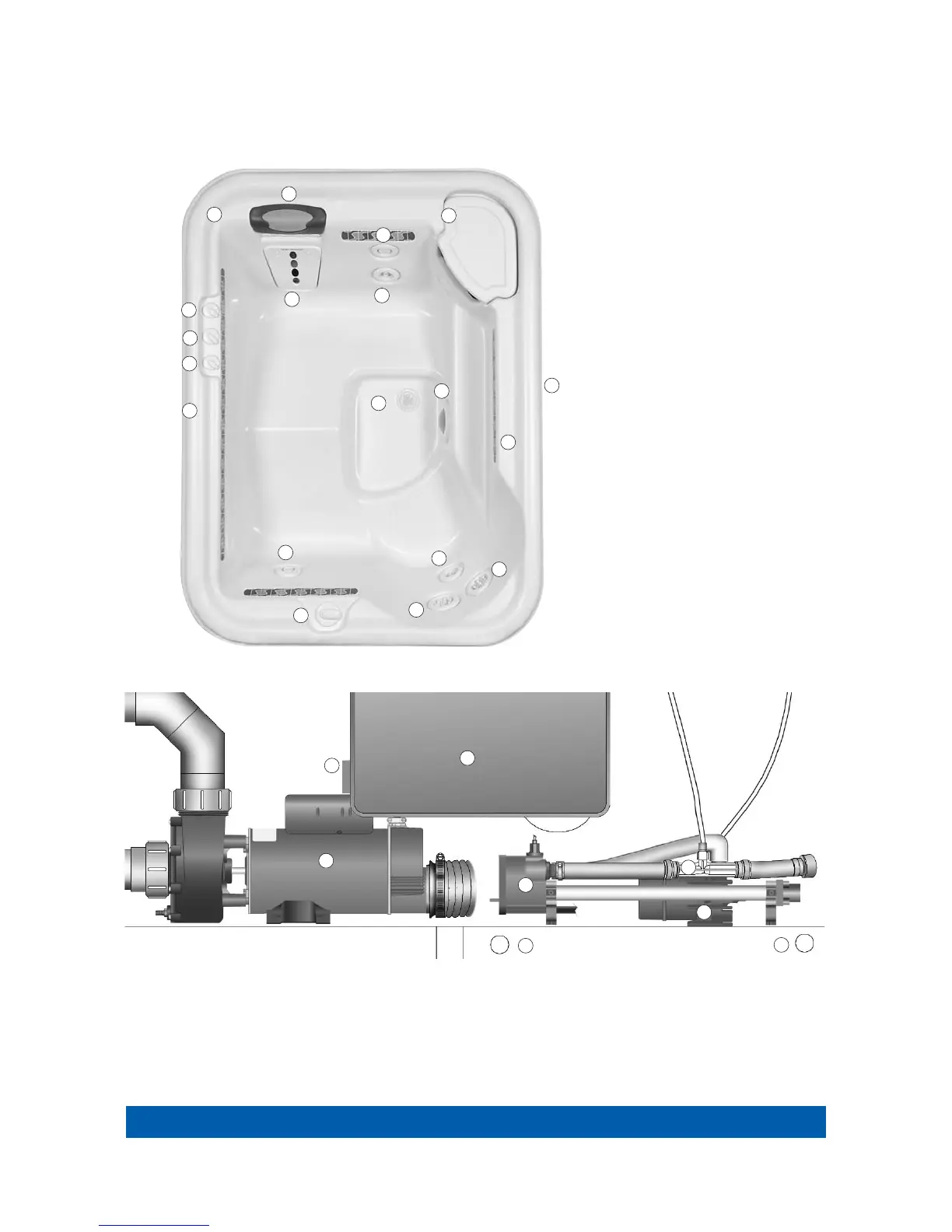

EQUIPMENT COMPARTMENT
OVERHEAD VIEW
A. SmartJet
®
system lever
B. JetStream
®
jet Comfort
Control
®
system lever
C. Moto-Massage
®
jet Comfort
Control system lever
D. Precision
®
jets Comfort
Control system lever
E. Pillow
F. Hydromassage jet with
directional nozzle
G. Hydromassage jet with
rotary nozzle
H. Moto-Massage jet
I. Precision jets
J. Soothing Seven
®
jets
K. JetStream jet
L. Heater return and spa drain
M. Light lens
N. Filter compartment
O. Main control panel
P. Cup holder
D
E
G
F
F
J
J
A
K
M
L
N
H
I
B
C
O
1
2
3
4
5
6
7
8
Controls and Equipment
