HOTSY 965SS-1075SS • 9.807-621.0 • Rev. 09/18
OPERATOR’S MANUAL
PRESSURE WASHER
30

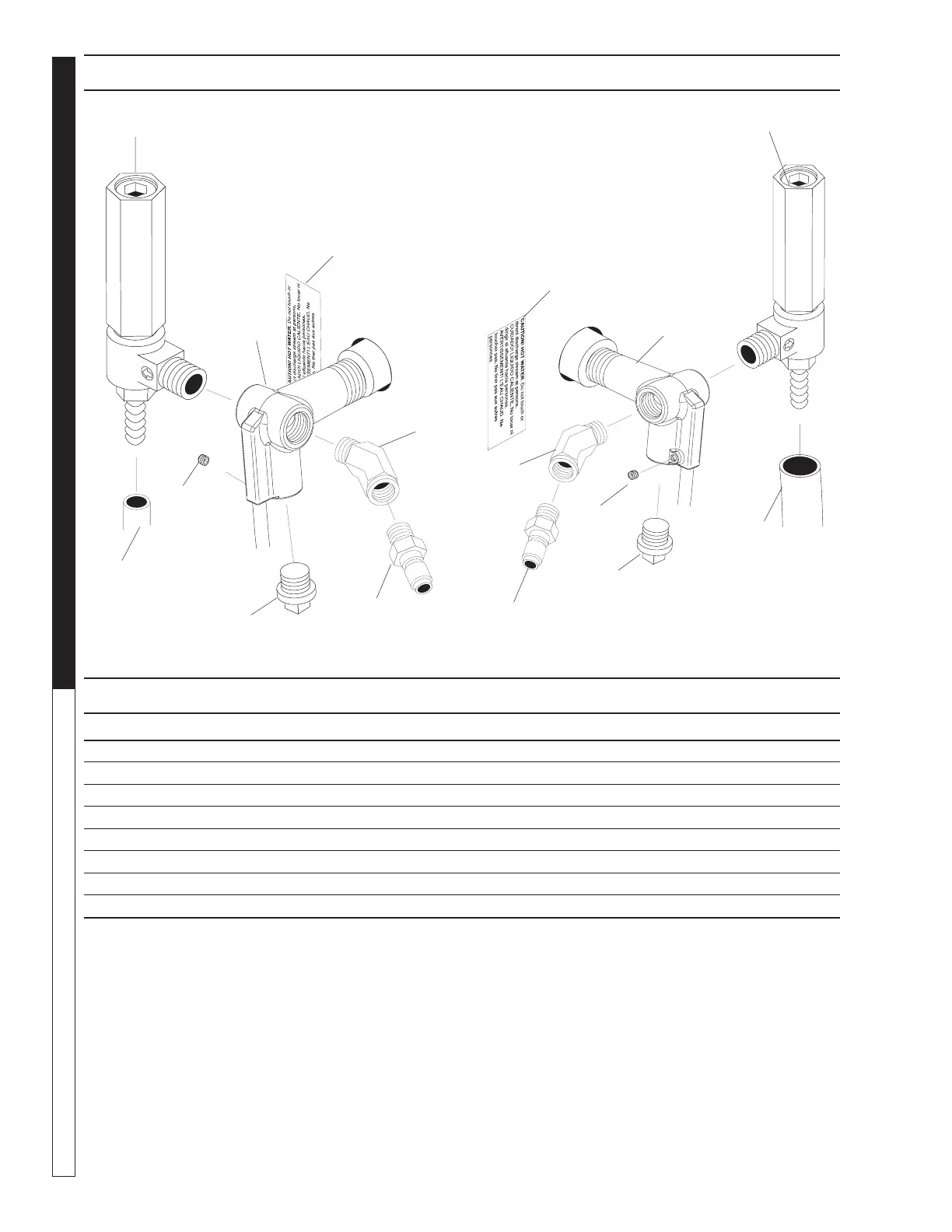

COIL OUTLET EXPLODED VIEW - 965SS 1065SS 1065SSE 1075SE
COIL OUTLET PARTS LIST - 965SS 1065SS 1065SSE 1075SE
965SS (Only)
1
6
2
3
2
3
5
7
1
4
7
6
5
8
8
4
ITEM PART NO. DESCRIPTION QTY
1 9.149-003.0 Manifold Coil Outlet Discharge 1
2 8.706-241.0 Plug, 3/8", Sq Head, Galv 1
3 9.196-012.0 Screw, 10-24 x 1/4" Hex Gasket 1
4 9.802-041.0 Elbow, 3/8"Street 45 Deg Steel 1
5 9.802-171.0 Coupler, 3/8" Plug, Male, Steel/Zinc 1
6 8.902-433.0 Valve, Safety Relief Vsa 1
7 8.711-785.0 Hose, 3/8" Push On 42"
8 9.800-021.0 Label, Hot Water Outlet 1
