HOTSY 965SS-1075SS • 9.807-621.0 • Rev. 09/18
29
PRESSURE WASHER
OPERATOR’S MANUAL
16
14
15
18
1, 2
13
12
3
13
26
5
9
4
6
7
10
11
8

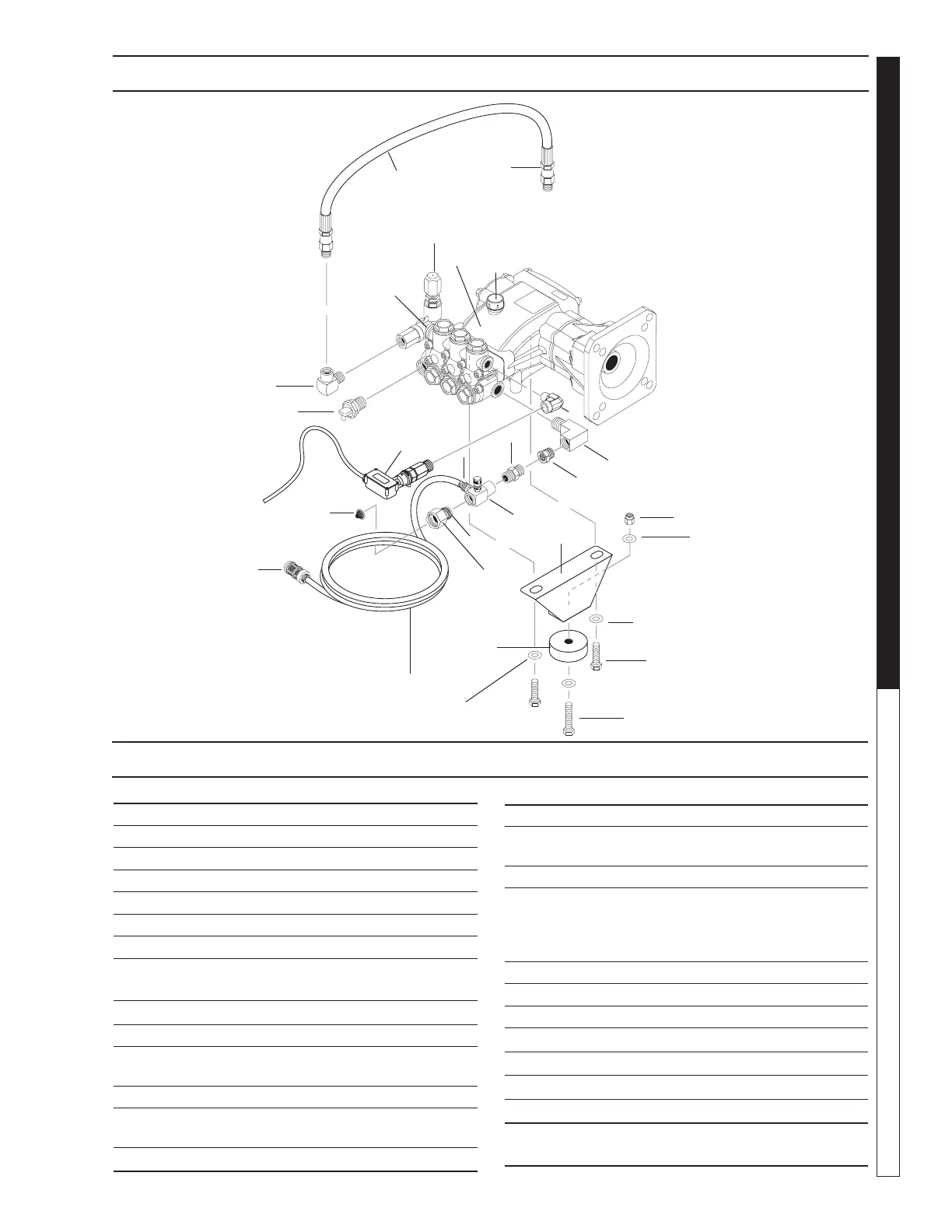

PUMP ASSEMBLY - 1065SS, 1065SSE, 1075SSE
20
21
22
23
25
To Coil
19
PUMP PARTS LIST - 1065SS, 1065SSE, 1075SSE
24
20
17
ITEM PART NO. DESCRIPTION QTY
1 8.751-183.0 Pump (1065SS,1065SSE) 1
2 8.751-184.0 Pump (1075SSE) 1
3 8.706-829.0 Elbow, 1/2" Street, Brass 1
4 8.706-880.0 Nipple, 1/2" Mpt x 3/8" Mpt 1
5 9.803-275.0 Injector, Adjustable, Inlet 1
6 8.718-492.0 Spring, .95 x .055 x .6 1
7 9.802-147.0 Swivel, 3/8" Mp x 3/4" Ghf 1
8 9.804-016.0 Filter Screen Washer,
Garden Hose/Mesh 1
9 6.390-126.0 Clamp, Hose, .46-.54 St 2
10 9.802-252.0 Hose, 1/4"x 1/2", Braided 48"
11 8.707-056.0 Strainer, Chemical 1
W/ 1/4 Brass Barb
12 8.707-256.0 Pump Protector, 1/2" Ptp 1
13 8.706-207.0 Elbow, 3/8" Street, 90 Deg, 2
Steel
14 9.803-900.0 Unloader, VBA 1
ITEM PART NO. DESCRIPTION QTY
15 8.901-117.0 Tag, Warning Unloader 1
16 8.918-218.0 Hose, 3/8" x 29", 2 Wire, 1
3/8M. Sol x 1/2
17 9.802-921.0 Oil Dipstick 1
18 8.716-125.0 Switch,Pressure,3/8" NPT 1
Brass, 65" (1065SSE)
8.704-196.0 Switch, Pressure Hp, Red 1
5800 Psi (1075SSE)
19 8.933-024.0 Rail, Pump Support 1
20 9.802-816.0 Washer, 7/16" Split Ring Lock 2
21 9.802-744.0 Bolt, 10mm x 20mm, Hh Zc 2
22 9.802-066.0 Pad Soft Rubber 1
23 9.802-722.0 Bolt, 3/8" x 1-1/4", Nc Hh 1
24 9.802-817.0 Washer, 3/8" x 1" 1
25 9.197-003.0 Nut, 3/8"-16 Nylon Insert 1
26 8.706-984.0 Adapter, 1/2" x 1/2" Pipe 1
(Brass)
