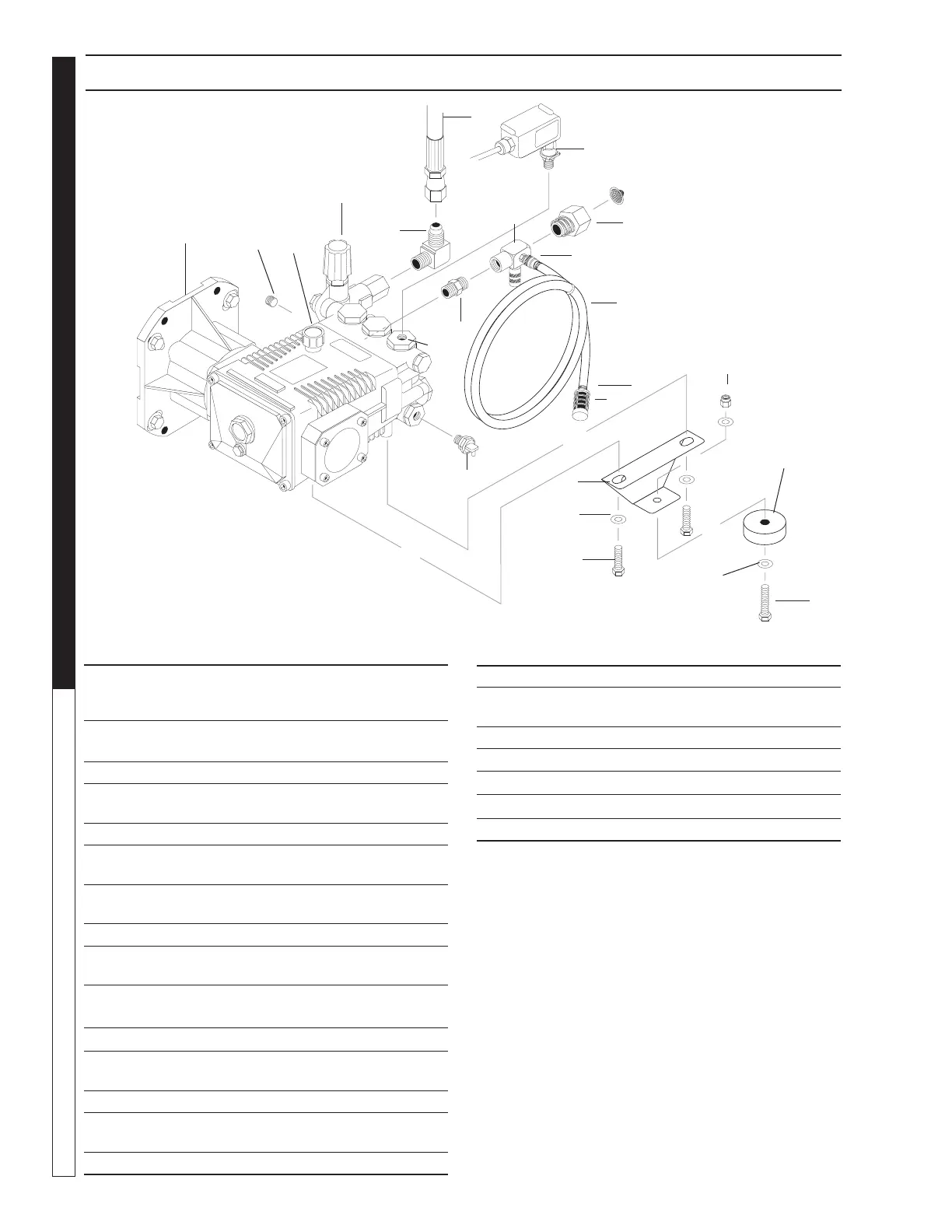

PUMP ASSEMBLY - 965SS EXPLODED VIEW AND PARTS LIST
7
6
10
9
8
5
12
4
2
3
1
14
15
16
17
18
19
21
20
13
8
11
ITEM PART NO. DESCRIPTION QTY
1 8.923-773.0 Pump, Hotsy HP3035G1, 1
3.0@3500, 3400 RPM
(8.715-235.0)
2 8.754-696.0 Unloader, VBT Banjo 1/2M
3/8M, 3000 PSI 1
3 8.707-256.0 Pump Protector, 1/2" Ptp
4 8.706-880.0 Nipple, 1/2" Mpt x 3/8" Mpt, 1
Brass
5 9.803-275.0 Injector, Adjustable, Inlet 1
6 9.802-252.0 Hose, 1/4" x 1/2" Braided 4 ft.
Vinyl
7 8.707-056.0 Strainer, Chemical W/ 1/4 1
Brass Barb
8 6.390-126.0 Clamp, Hose, .46-.54 St 2
9 8.918-424.0 Hose, 3/8" x 25", 2 Wire, 1
Press Loop
10 9.802-147.0 Swivel, 3/8" Mp x 3/4" Ghf 1
W/ Strainer
11 9.803-957.0 Oil Dipstick 1
12 9.802-042.0 Elbow 1/2" Jic x 3/8" Fem, 1
90DGR, ST
13 8.706-865.0 Plug, 1/4" Npt Countersunk 1
14 9.802-458.0 Switch, Pressure N/O, 1
1/4 Npt SS
15 9.804-533.0 Rail, Pump Support 1
ITEM PART NO. DESCRIPTION QTY
16 8.718-980.0 Washer, 5/16" Flat Sae 1
17 9.802-741.0 Bolt, 8mm x 16mm, 2
Hex Head
18 9.802-817.0 Washer, 3/8"x 1" 2
19 9.802-722.0 Bolt, 3/8" x 1-1/4", Nc Hh 1
20 9.197-003.0 Nut, 3/8"-16 Nylon Insert 1
21 9.802-066.0 Pad, Soft Rubber 1
22 9.804-022.0 Cap, Valve 22m,1/4"Gauge 1
