HOTSY 965SS-1075SS • 9.807-621.0 • Rev. 09/18
37
PRESSURE WASHER
OPERATOR’S MANUAL
ITEM PART # DESCRIPTION KIT QTY
1* 8.754-929.0 Stem C 1
2* 9.803-912.0 Backup Ring A 1
3* 8.754-930.0 O-ring, Ø2.62 x 6.02 A 2
4 8.730-882.0 Stem Connector 1
5* 9.803-193.0 O-ring, Ø2.62 x 20.24 A 1
6* 9.803-908.0 Backup Ring A 1
7 9.803-907.0 Guide Bushing 1
8* 9.803-906.0 O-ring, Ø1.78 x 14 A 1
9* 8.754-959.0 Ball SubAssembly C 1
10* 8.754-933.0 Seat C 1
11* 8.754-934.0 O-ring, Ø1.78 x 12.42 A,C 1
12 8.754-935.0 Valve Body 1
13 9.802-893.0 Seal Washer 3/8 1
14 9.803-919.0 Banjo Bolt 3/8 1
15* 8.754-936.0 O-ring, Ø2.62 x 10.78 A 1
16 9.803-920.0 Banjo Bolt, 1/2, w/1/4" Port 1

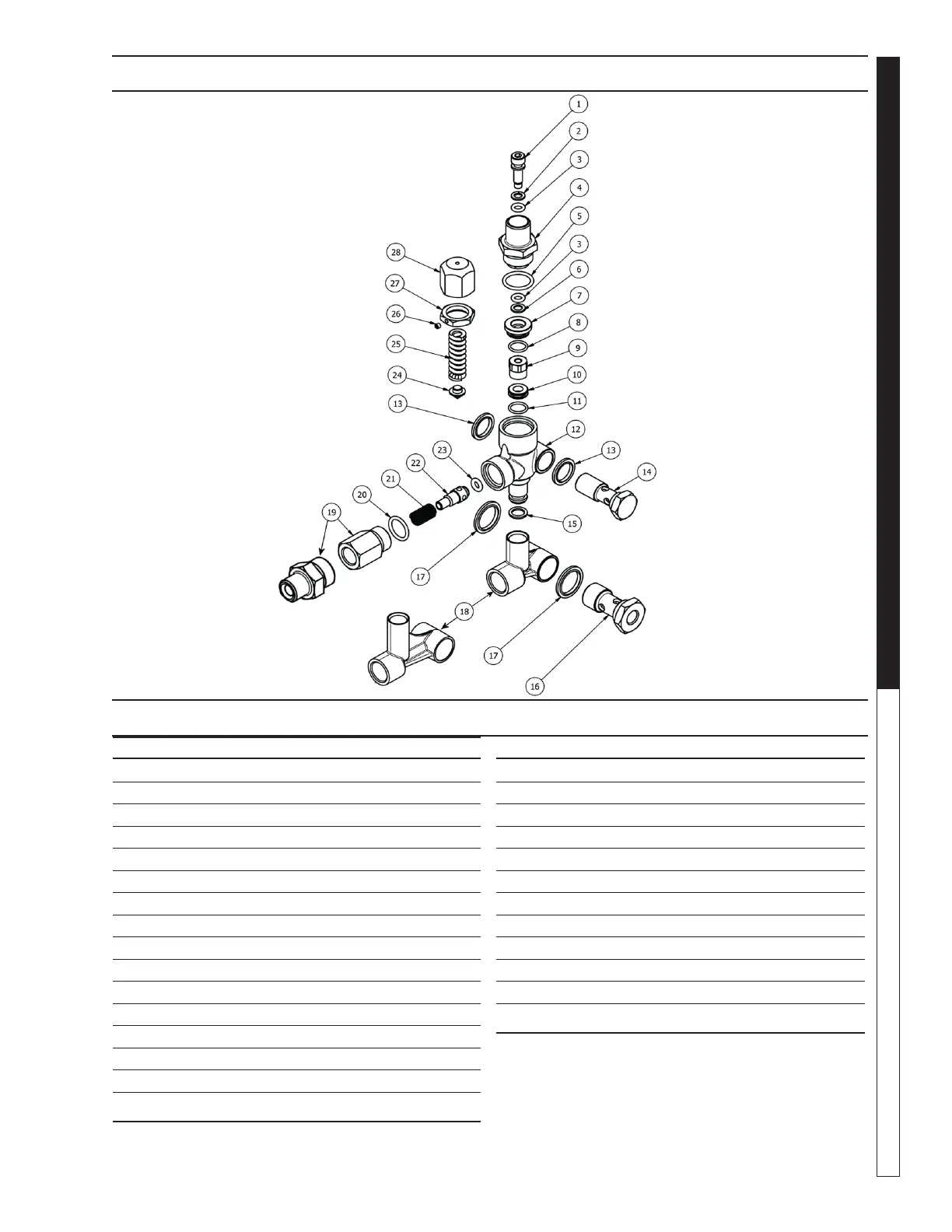

VBT UNLOADER EXPLODED VIEW
VBT UNLOADER EXPLODED VIEW PARTS LIST
ITEM PART # DESCRIPTION KIT QTY
17 9.803-914.0 Seal Washer 1/2) 1
18 8.754-937.0 Bypass Manifold 1
19 9.802-892.0 Outlet Connector 3/8 MPT 1
20* 9.803-191.0 O-ring, Ø2.62 X 17.13 A,B 1
21* 8.933-017.0 Poppet Spring B 1
22* 8.754-939.0 Poppet B 1
23* 8.754-940.0 O-ring, Ø3 x 6 A,B 1
24* 8.754-961.0 Plate C 1
25* 8.933-018.0 Spring 1500-4000 PSI C 1
26 8.933-021.0 Set Screw 1
27 9.803-925.0 Nut 1
28 9.803-926.0 Knob, Brass, Unloader 1
* Included in Kit
Kit A 8.754-941.0 O-Ring Repair Kit
Kit B 8.754-942.0 Outlet Repair Kit
Kit C 8.754-957.0 Stem Repair Kit
8.754-696.0
UNLOADER, VBT BANJO 1/2M 3/8M, 3000PSI (SPARE)
