HOTSY 965SS-1075SS • 9.807-621.0 • Rev. 09/18
OPERATOR’S MANUAL
PRESSURE WASHER
36

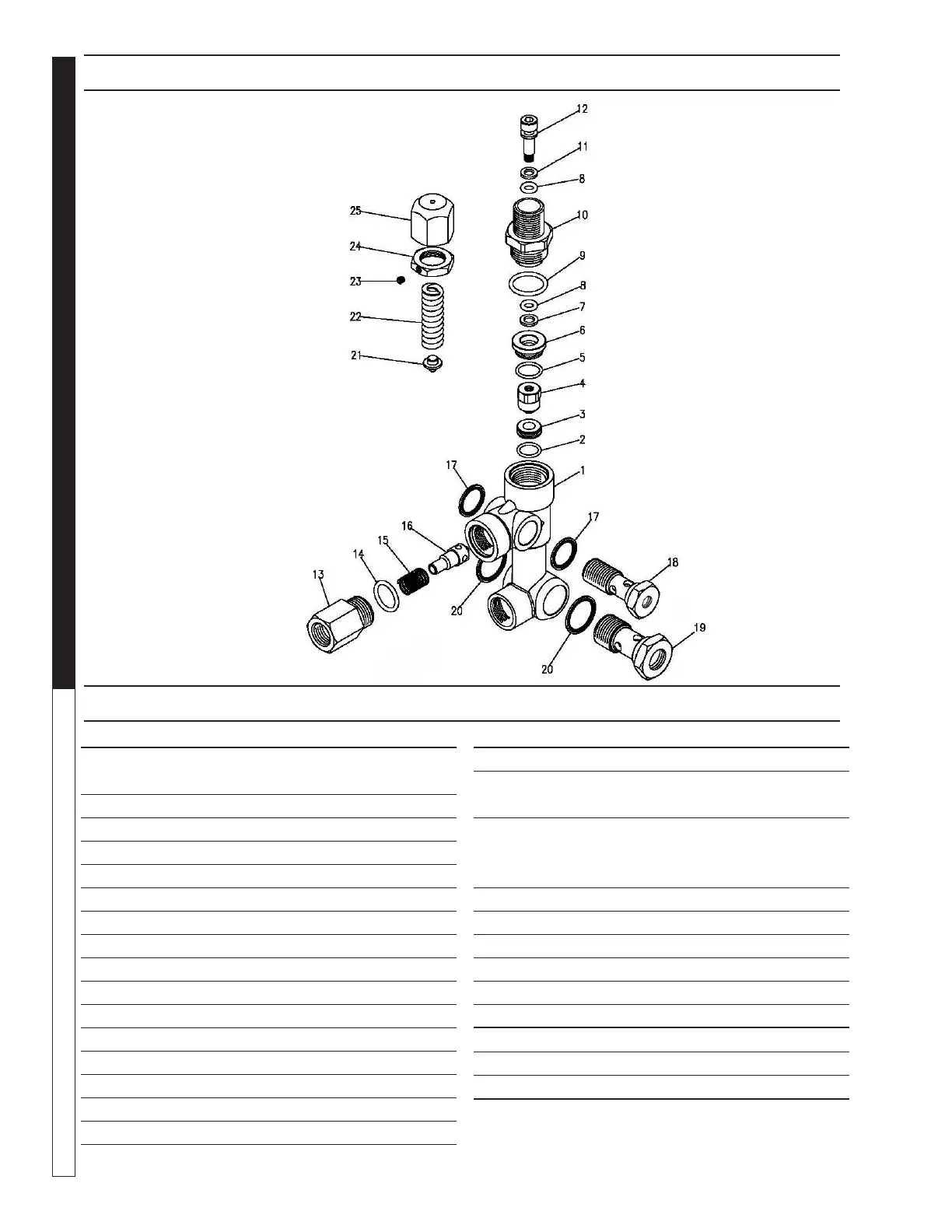

VBA UNLOADER EXPLODED VIEW
VBA UNLOADER EXPLODED VIEW PARTS LIST
ITEM PART NO. DESCRIPTION KIT QTY
1 Body Valve (KG) 1
Body Valve (KS) 1
2 O-Ring A,C 1
3 Seat C 1
4 Ball, Sub-assy C 1
5 O-Ring A 1
6 9. 8 0 3 - 9 07. 0 Guide Bushing 1
7 Teon Ring 1
8 O-Ring A 1
9 O-Ring A 2
10 9.8 0 3 -911.0 Connector 1
11 Teon Ring A 1
12 70-120207 Stem C 1
13 9.803-914.0 Connector Female 1
14 O-Ring A,B 1
15 Spring B 1
16 Poppet B 1
ITEM PART NO. DESCRIPTION KIT QTY
17 9.802-893.0 Seal Washer 3/8 2
18 9.803-915.0 Banjo Bolt 3/8" w 1/8" Pilot 1
9.803-919.0 Banjo Bolt 3/8" Solid Cap 1
19 9.803-920.0 Banjo Bolt 1/2" w 1/4" Pilot 1
8.750 -105.0 Banjo Bolt 1/2" Solid Cap
9.803-919.0 Banjo Bolt 3/8" Solid Cap
20 9.803-921.0 Seal Washer 1/2 2
21 Plate C 1
22 Spring C 1
23 8.933-021.0 Set Screw 1
24 9.803-925.0 Nut 1
25 9.803-926.0 Brass Handle 1
Kit A 8.717-672.0 O-Ring Repair Kit
Kit B 8.717-673.0 Outlet Kit
Kit C 8.717- 674.0 Stem Repair Kit
6.6 GPM @3500 PSI 9.803-899.0
6.6 GPM @4000 PSI 9.803-900.0
