Operations
The purpose of venting a gas pressure washer is to
completely remove all products of combustion and to
vent gasses to the outside air without condensation in
the vent or spillage at the draft hood (except in cases of
downdraft or poor stack conditions). To assure correct
venting, use a strong, gas-tight insulated pipe with a
cross section equal to that of the flue collar or draft
hood outlet and of sufficient vertical height.
During vent installation, avoid sharp turns, long hori-
zontal runs and improper pitches. Maintain proper
support of vent connectors and joints, observe clear-
ances from all combustibles and top the vent outlet with
an approved cap.
Type "B", due to its temperature rating, can only be
used with natural draft pressure washers. A "B" vent is
designed for exhaust temperatures not to exceed
470°F (245°C).
All venting installations must conform to local codes. In
the absence of local codes, refer to "National Fuel Gas
Code" NFPA 54 and be constructed of materials
approved by the Uniform Building Code.
Vents penetrating ceilings or walls should be double-
wall approved appliance vents and should be one to
two inches from combustibles. Vents passing through
enclosed spaces and vents exposed to the weather
should also be the double-wall type. Sometimes vents
have to be built of such great length that they come
apart at their joints under their own weight. These
should be screwed together at the joints with sheet
metal screws, usually three per joint. If the inspector
indicates that the vent is too close to combustibles, it
may be necessary to chisel away some of the combus-
tible or route the vent pipe around the combustible. The
cross-sectional area of any flue shall not be less that
the cross-sectional area of the flue vent connection
outlet of machine.
Ventilation
Water Source
The water source for the machine should be supplied
by a 5/8" I.D. garden hose with a city water pressure of
not less than 30 PSI. If the water supply is inadequate,
or if the garden hose is kinked, the machine will run
very rough and the burner will not fire.
Water Connection
Connect the high pressure hose by pulling the coupler
collar back and then inserting it onto the discharge
nipple. Secure it by pushing the collar forward.
Attach the wand into the spray gun using teflon tape on
the pipe threads to avoid leaks.
Hotsy 900/1400 Series Dealer Manual 9.803-324.0 - AW

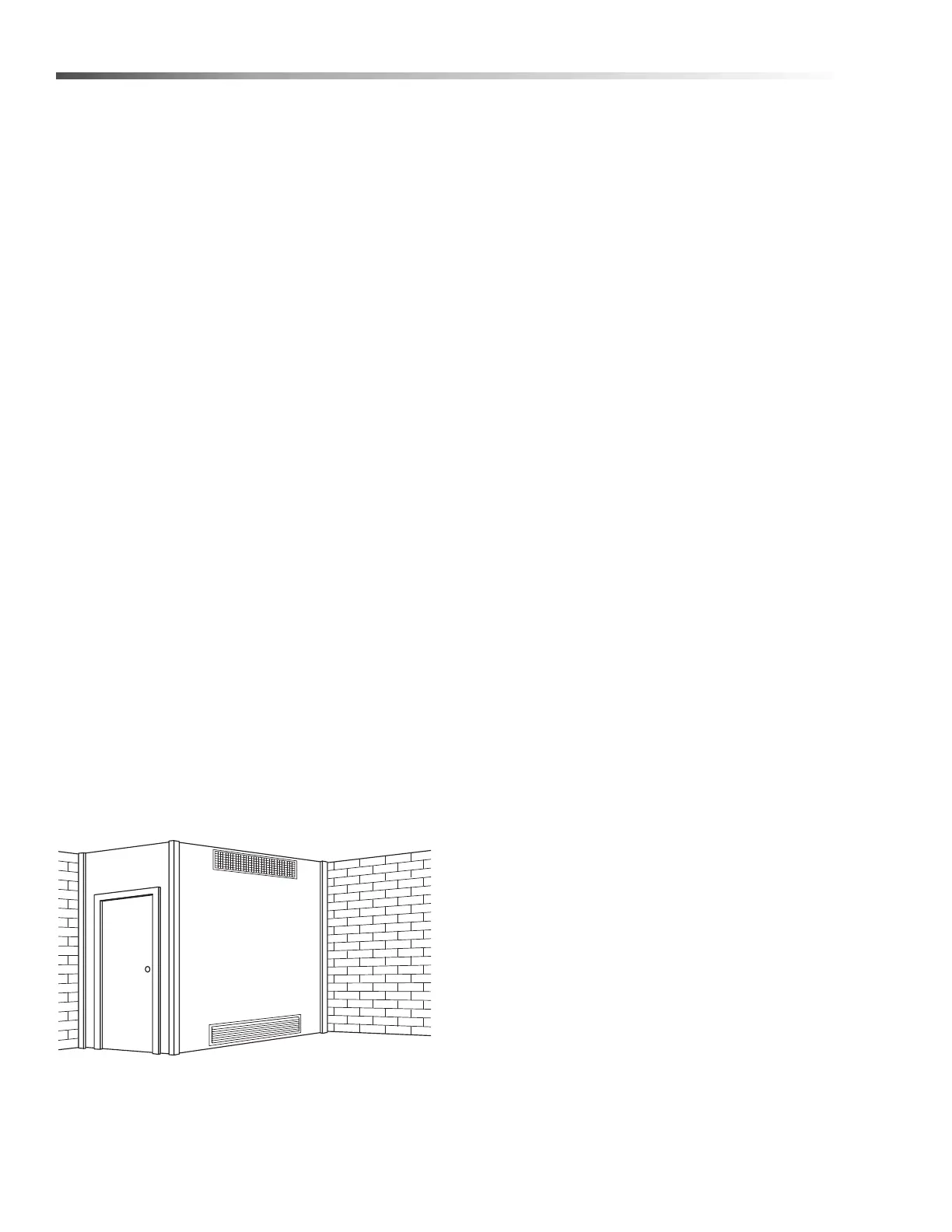

Illustration showing air openings necessary
to supply air for combustion when installed
in an enclosed room.
