This document provides an operator's manual for Hotsy pressure washers, specifically models 797SS, 797SS-208, 897SS, and 897SS-208. It includes operating instructions, parts manuals, and important safety information.

Function Description:

The Hotsy pressure washers are designed for cleaning tasks, utilizing high-pressure water and, in some models, heated water. They are equipped with a pump to generate high-pressure water flow, a burner to heat the water (for hot water models), and various components for detergent application and control. The devices are intended for professional use, and proper operation and maintenance are crucial for safety and longevity.

Important Technical Specifications:

Model 797SS:

Flow Rate At Pump Head: 3.5 gpm (gallons per minute) / 210 gph (gallons per hour)
Pressure At Pump Head: 2000 PSI
Burner Type: Fuel Oil Fired, 290,000 BTU/Hr.
Burner Fuel Pressure: 190 PSI Max.
Machine Voltage: 230Vac/60Hz/1Ph
Total Machine Amperage: 24 Amps
Machine Weight: 460 Lbs.
Shipping Weight: 510 Lbs.
Exhaust Stack Size: 8"
Machine Dimensions: Length = 50", Width = 29", Height = 42.5"

Model 797SS-208:

Flow Rate At Pump Head: 3.5 gpm / 210 gph
Pressure At Pump Head: 2000 PSI
Burner Type: Fuel Oil Fired, 290,000 BTU/Hr.
Burner Fuel Pressure: 190 PSI Max.
Machine Voltage: 208Vac/60Hz/1Ph
Total Machine Amperage: 27 Amps
Machine Weight: 463 Lbs.
Shipping Weight: 513 Lbs.
Exhaust Stack Size: 8"
Machine Dimensions: Length = 50", Width = 29", Height = 42.5"

Model 897SS:

Flow Rate At Pump Head: 3.2 gpm / 192 gph
Pressure At Pump Head: 3000 PSI
Burner Type: Fuel Oil Fired, 255,000 BTU/Hr.
Burner Fuel Pressure: 190 PSI Max.
Machine Voltage: 230Vac/60Hz/1Ph
Total Machine Amperage: 28 Amps
Machine Weight: 467 Lbs.
Shipping Weight: 517 Lbs.
Exhaust Stack Size: 8"
Machine Dimensions: Length = 50", Width = 29", Height = 42.5"

Model 897SS-208:

Flow Rate At Pump Head: 3.2 gpm / 192 gph
Pressure At Pump Head: 3000 PSI
Burner Type: Fuel Oil Fired, 255,000 BTU/Hr.
Burner Fuel Pressure: 190 PSI Max.
Machine Voltage: 208Vac/60Hz/1Ph
Total Machine Amperage: 29 Amps
Machine Weight: 470 Lbs.
Shipping Weight: 520 Lbs.
Exhaust Stack Size: 8"
Machine Dimensions: Length = 50", Width = 29", Height = 42.5"

Usage Features:

The pressure washer features a pump that delivers a specific GPM to the high-pressure nozzle, which develops pressure. A relief valve provides secondary pressure release in the unlikely event of an unloader valve failure. The spray gun controls the application of water and detergent onto the cleaning surface, including a safety latch. A detergent injector allows for siphoning and mixing detergents. The wand must be connected to the spray gun. A high-pressure hose connects one end to the pump's high-pressure discharge nipple and the other to the spray gun. An unloader valve is a safety device that, when the spray gun closes, prevents over-pressurization.

The manual details the unpacking process, including the tools required for assembly (10" adjustable wrench and Teflon tape). It provides instructions for connecting the pressure hose, trigger gun, and wand, emphasizing the use of Teflon tape or thread sealant to prevent leakage.

Operation instructions cover getting started, including important safety, warning, and advertisement messages in English, French, and Spanish. It highlights the importance of proper installation in an enclosed area, adequate ventilation, and correct electrical connections. Specific instructions are given for burner startup, including turning on the burner switch, adjusting the air band, and observing the flame. Venting is crucial, especially for fuel-fired models, to ensure proper combustion and prevent the accumulation of carbon monoxide.

Maintenance Features:

The manual outlines a comprehensive maintenance schedule to ensure the longevity and safe operation of the pressure washer.

General Cleaning Techniques & Storage:

Rinsing: After detergent application, rinse the surface with clean water. For models with antifreeze, the unloader system can be flushed with antifreeze for rust protection.
Storage: When storing the machine in a heated area, or by flushing the system with antifreeze, use an automotive engine antifreeze or a Hotsy washer solvent.

Proper Pump Care:

Do not pump acids.
Allow the pump to run dry.
Winterize if storing in freezing temperatures.
Use a water softener if the water system is known to be high in mineral content.
Use only high-quality detergents and follow manufacturer's recommendations.
Flush the system with clean water immediately after using chemical solutions.
Clean the filter screen on the detergent inlet periodically.
Flush the pressure washer system with antifreeze if storing for an extended period.

Pump Lubrication: Lubricate the pump using 30W non-detergent oil. Check the oil level using the sight glass and drain/refill after the first 25 hours of operation, then every 3 months or 300 hours, whichever comes first.

Relief Valve: The relief valve is factory set and sealed. Tampering with it can cause injury or damage and voids the warranty. It should be inspected annually for any obstructions.

Unloader Valve: The unloader valve is factory set and sealed and is a non-adjustable part. Tampering with it can cause injury or damage and voids the warranty.

Burner Fuel Filter: Drain any accumulated water and clean or replace the element as needed.

Heating Coil:

Coil Descaling: In hard water areas, scale buildup can reduce water temperature rise and eventually clog the coil. Contact a local service center for descaling.
Coil Desooting: Poor grades of fuel oil or inadequate combustion air can cause heavy soot buildup on the outside surface of the heating coil, insulating it and restricting airflow. Contact a local service center for desooting.

Troubleshooting:

A detailed troubleshooting guide is provided for common issues such as the pump motor not running, no water spray, low pressure, poor or no detergent flow, burner not igniting, and burner smokes or has an obnoxious odor. Each problem lists possible causes and corrective actions. For example, if the pump motor does not run, possible causes include a tripped GFCI, no voltage, or a tripped pump motor reset button. Corrective actions include resetting the GFCI, testing power supply, and pushing the reset button.

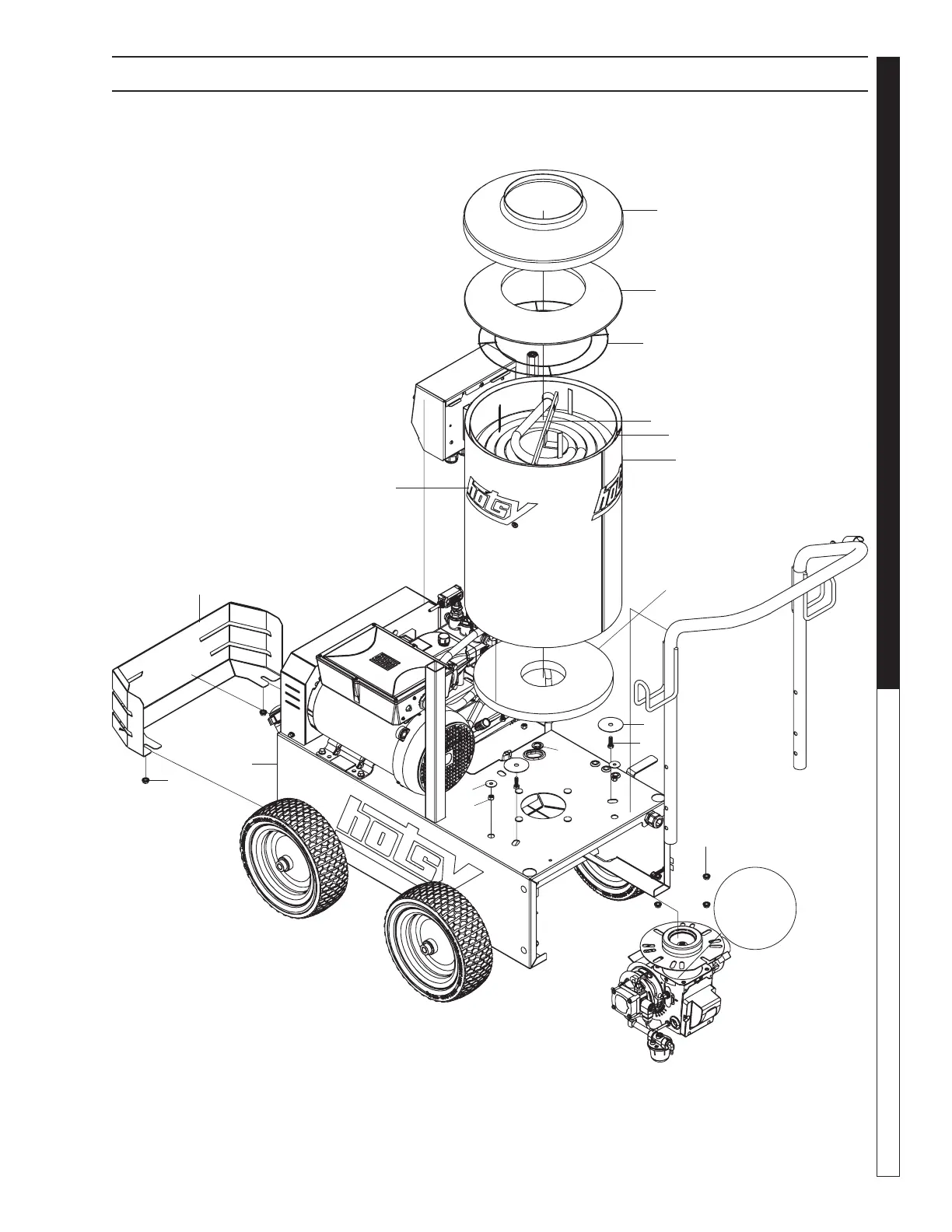

The manual also includes exploded views and parts lists for various assemblies, including the left side, right side, control panel, burner, fuel tank, float tank, pump, coil outlet, detergent valve, hose/spray gun/wand, and HM pump. Wiring diagrams for the 700 series are also provided.

For service or to register the pressure washer, users are directed to the Hotsy website, with QR codes for easy access.
