97-6574 • HOTSY 900-1400 GAS FIRED • REV. 10/05
37
PRESSURE WASHER
OPERATOR’S MANUAL

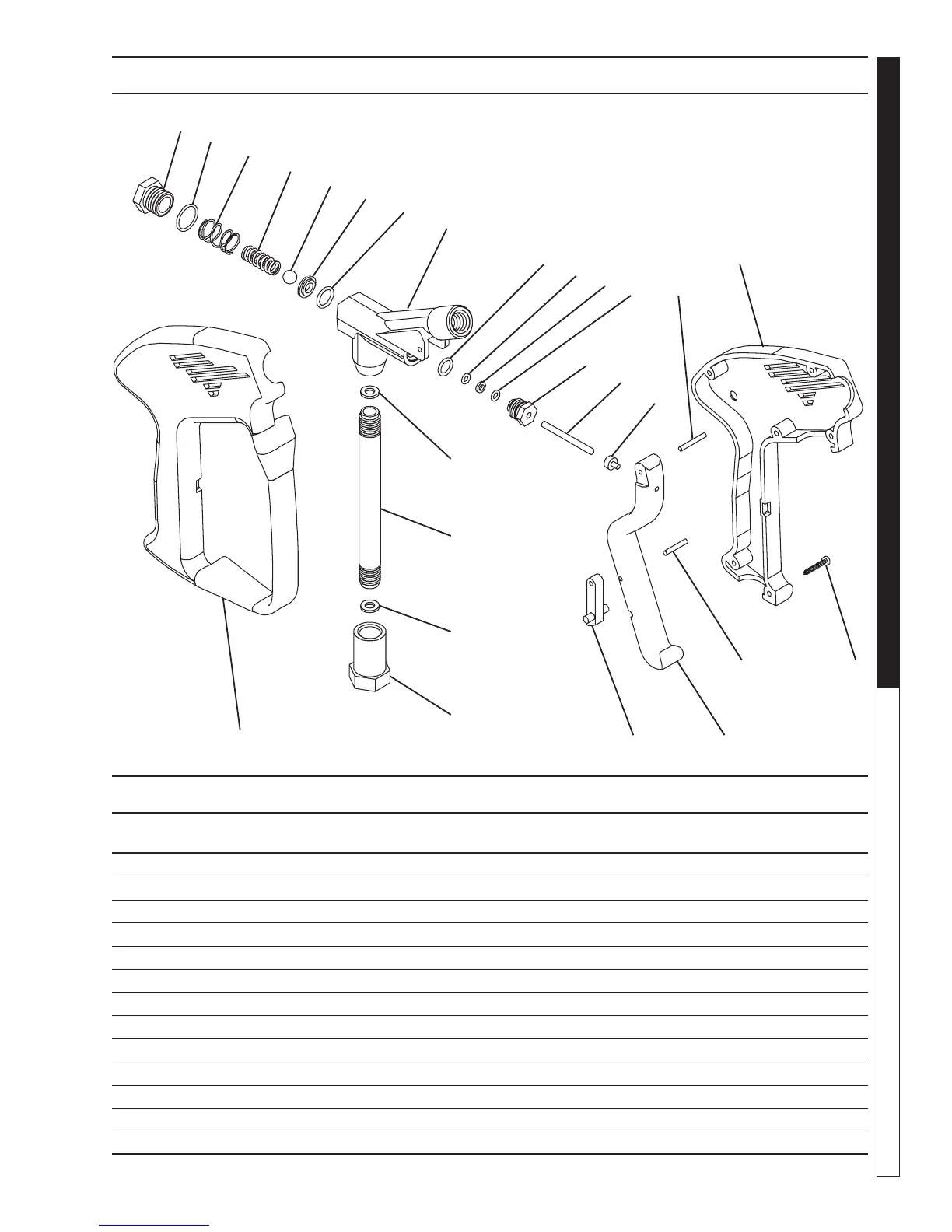

TRIGGER GUN ASSEMBLY
1
2
3
4
5
6
7
8
9
10
11
10
15
12
13
14
16
21
22
21
23
20
19
18
17
24
TRIGGER GUN ASSEMBLY PARTS LIST
ITEM PART NO. DESCRIPTION QTY.
1 817320 Valve Cap 1
2 ✪ Valve Cap O-Ring 1
3 ✪ Valve Seat Spring 1
4 ✪ Valve Spring 1
5 ✪ Ball 1
6 ✪ Valve Seat 1
7 ✪ Valve Seat O-Ring 1
8 812801 Valve Body 1
9 ✪ Plunger Guide Seat O-Ring 1
10 ✪ Plunger Guide Backring 2
11 ✪ Plunger Guide O-Ring 1
12 ✪ Plunger Guide 1
13 ✪ Plunger Rod 1
To Next Page
