HP Compaq 8510p - Compaq Business Notebook User Manual

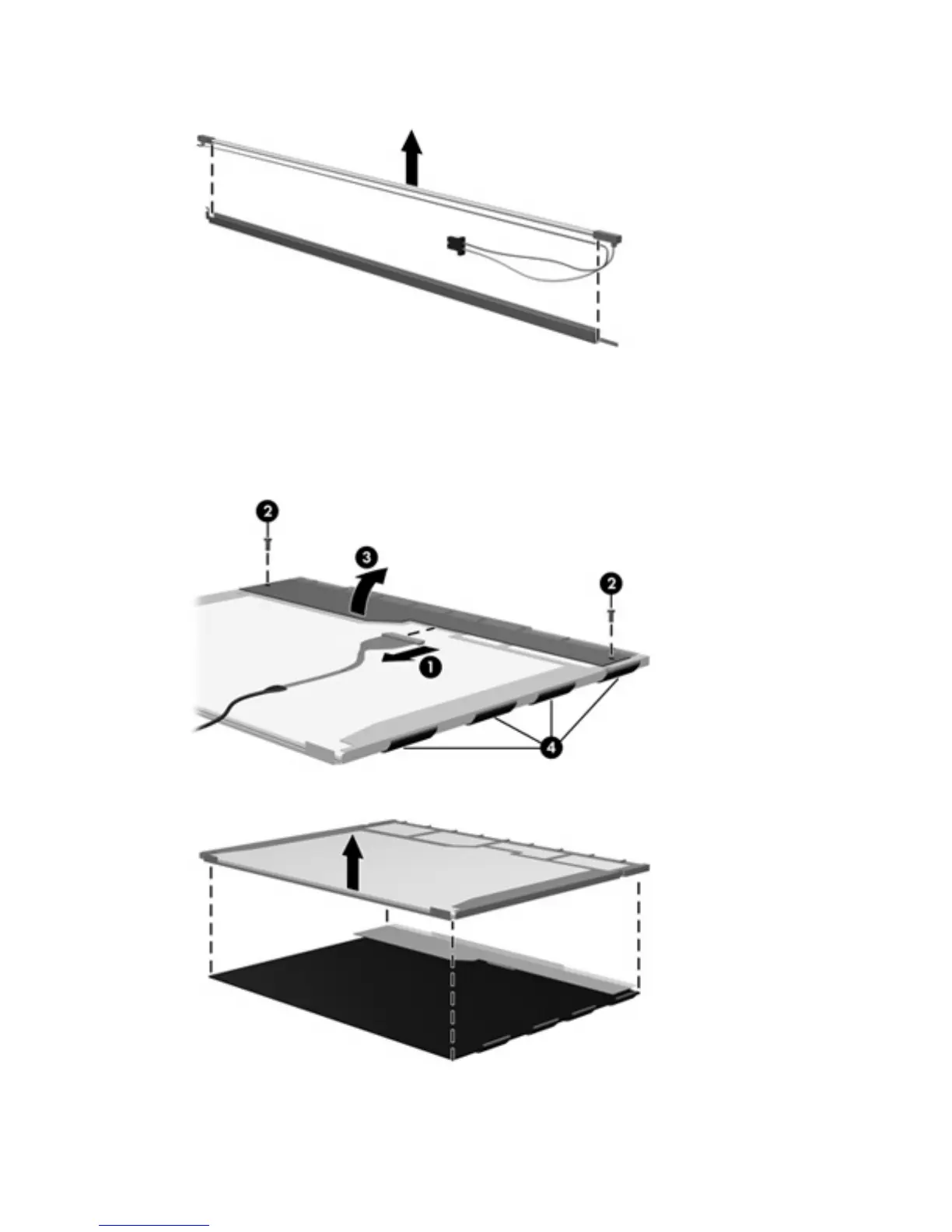

18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
156 Chapter 11 Recycling

HP Compaq 8510p - Compaq Business Notebook Specifications

General

RAM	Up to 4 GB DDR2
Processor	Intel Core 2 Duo
Display	15.4-inch
Storage	80GB, 120GB, 160GB HDD
Graphics	ATI Mobility Radeon HD 2600
Operating System	Windows Vista
Weight	2.8 kg (6.2 lbs)
Battery	6-cell Li-Ion
Chipset	Intel PM965
Optical Drive	DVD+/-RW SuperMulti
Networking	Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 USB 2.0, VGA, headphone, microphone
Slots	ExpressCard/54
