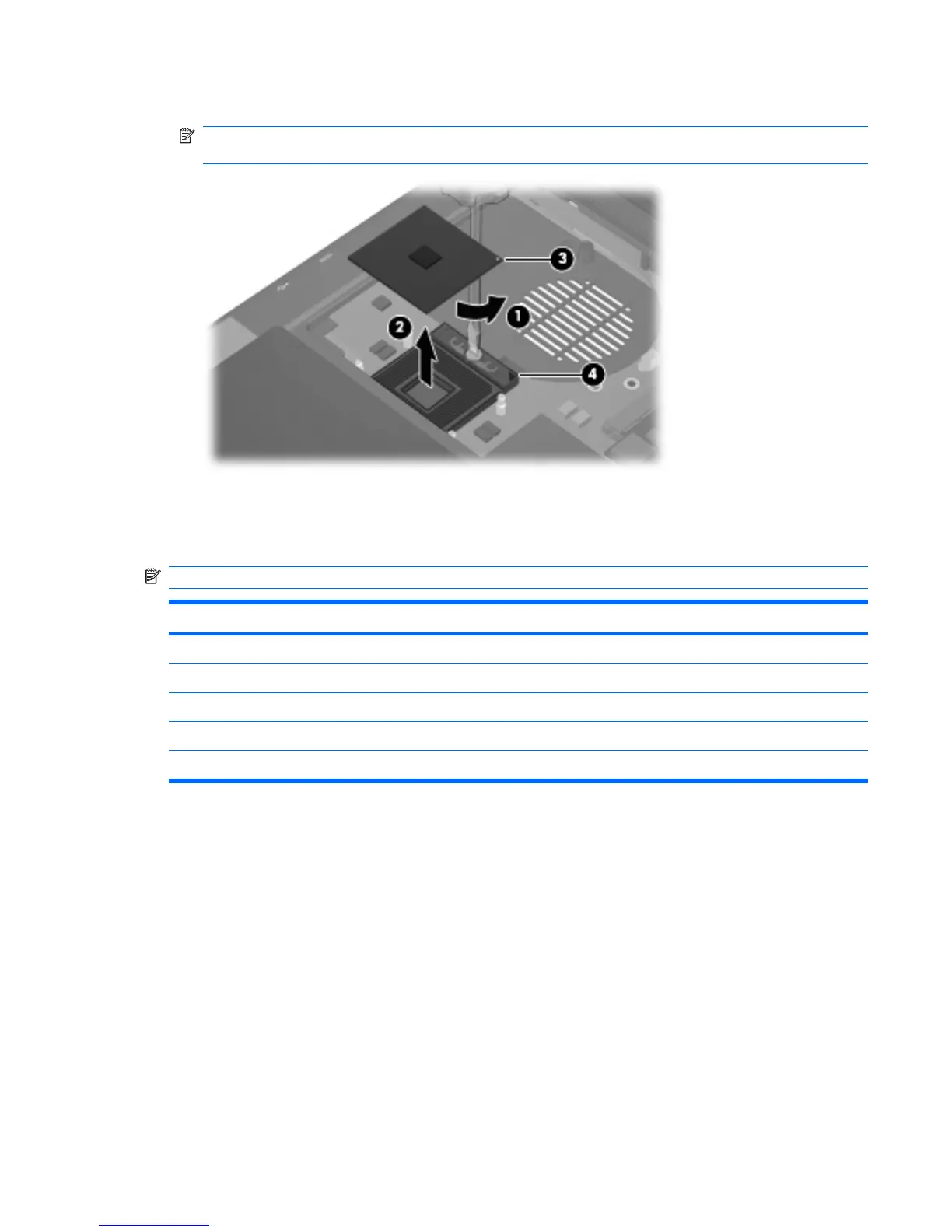

2. Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on
the processor slot when you install the processor.
Reverse this procedure to install the processor.
Graphics card
NOTE: All graphics card spare part kits include replacement thermal material.
Description Spare part number
ATI M76M graphics card with 256 MB of graphics subsystem memory (supports Hypermemory) 454247-001
nVidia G84GLM graphics card with 256 MB of graphics subsystem memory (supports Turbo Cache) 455077-001
Thermal Material Kits
For use in all countries or regions except Japan and Asia countries and regions
413706-001
For use only in Japan and Asia Pacific countries and regions 445853-001
Before removing the graphics card, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Component replacement procedures 65
