Bluetooth module
NOTE: The Bluetooth module spare part kits do not include a Bluetooth module cable. The Bluetooth
module cable is included in the Cable Kit, spare part number 452198-001. See
Cable Kit on page 27
for more Cable Kit spare part number information.
Description Spare part number
For use in all countries and regions except Japan and Asia Pacific countries and regions 398393-002
For use in all countries and regions except Japan and Asia Pacific countries and regions 452196-001
For use only in Japan and Asia Pacific countries and regions 450066-001
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 45).
5. Remove the hard drive (see
Hard drive on page 49).

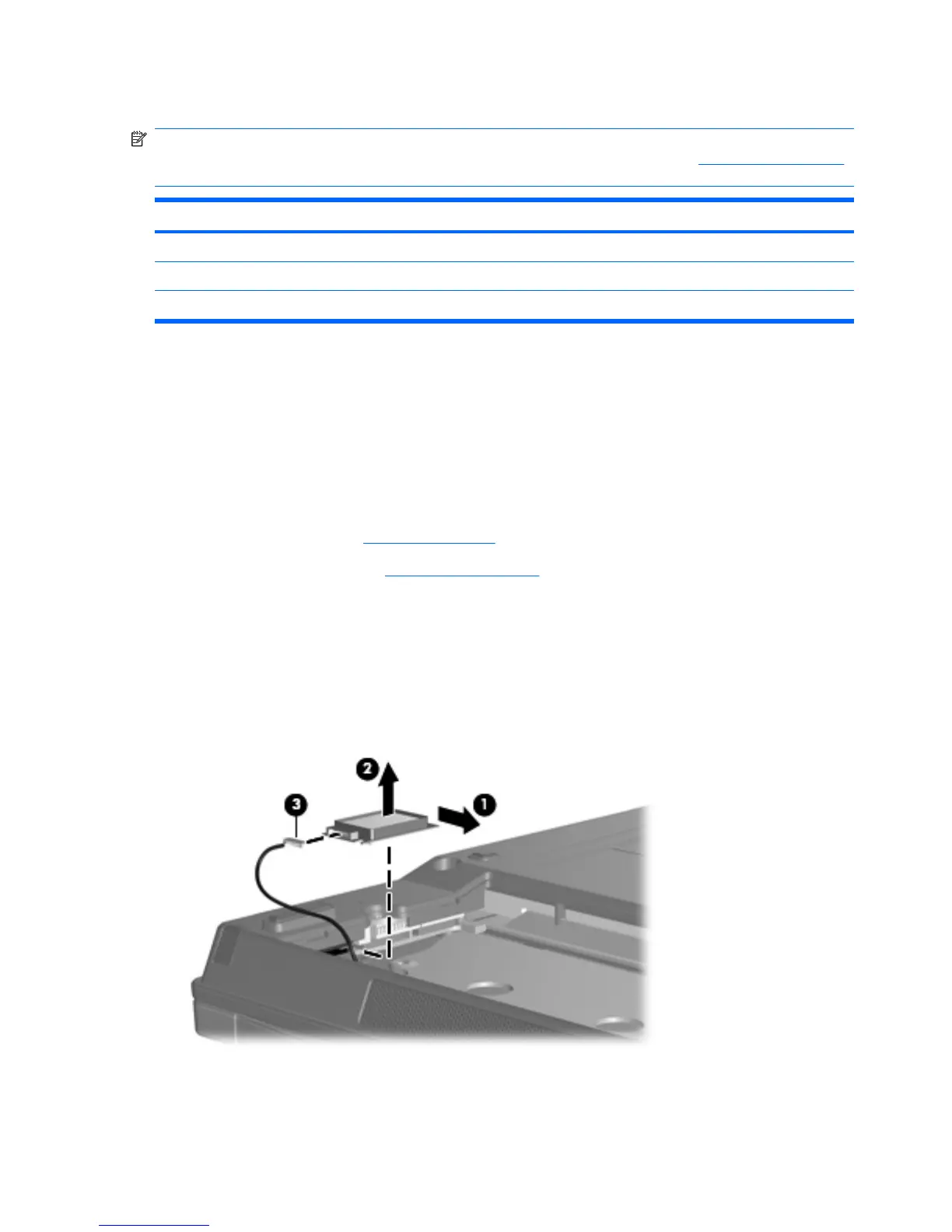

Remove the Bluetooth® module:
1. Position the computer with the front toward you.
2. Release the Bluetooth module (1) from the clip in the hard drive bay by sliding it to the right.
3. Remove the Bluetooth module (2) from the hard drive bay by lifting it straight up.
4. Disconnect the Bluetooth module cable (3) from the Bluetooth module.
Reverse this procedure to reassemble and install the Bluetooth module.
52 Chapter 4 Removal and replacement procedures
