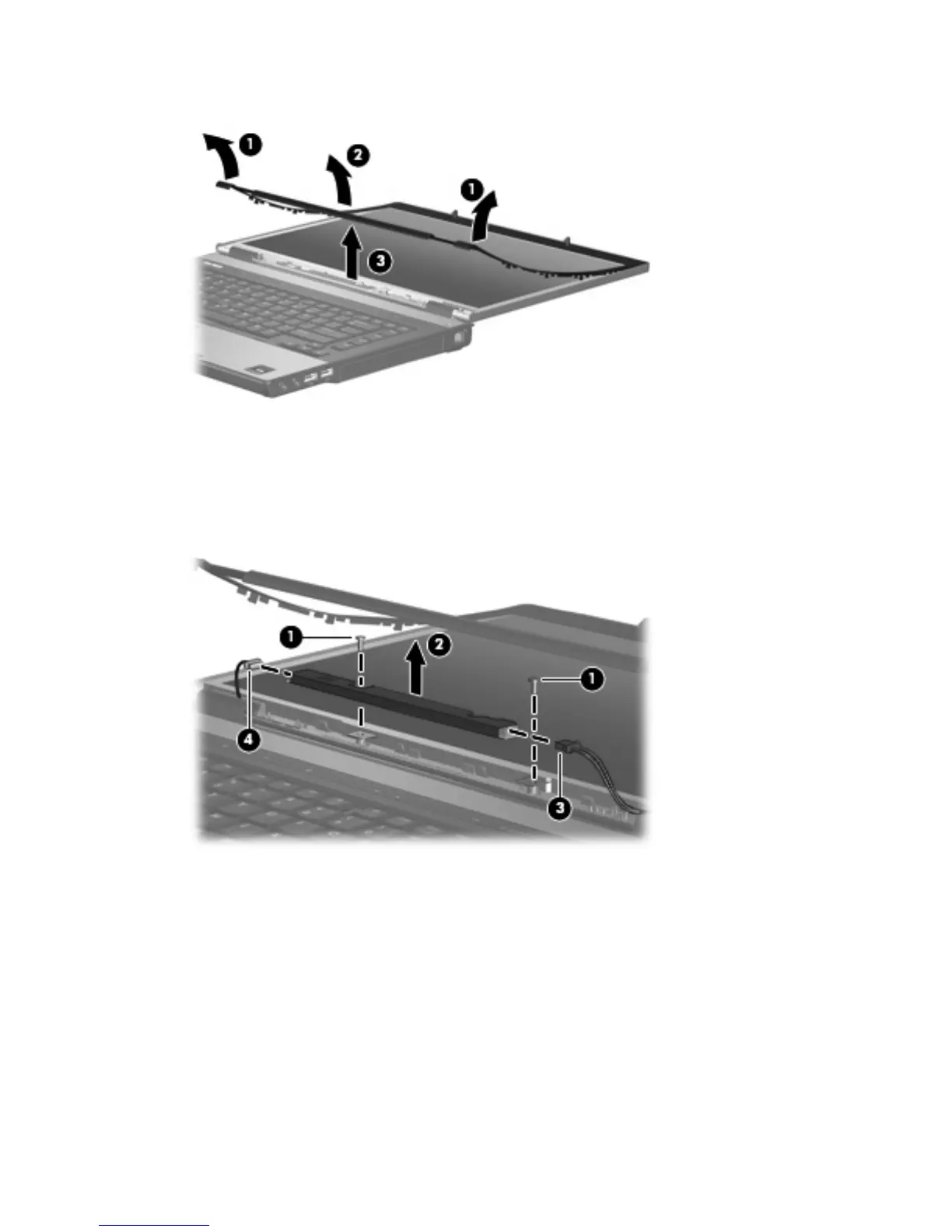

6. Release the display bezel bottom edge (3) from the display assembly.
7. Remove the two Torx T8M2.5×6.0 screws (1) that secure the display inverter to the display
enclosure.
8. Release the inverter (2) from the display enclosure as far as the display panel cable and backlight
cable allow.
9. Disconnect the backlight cable (3) and the display panel cable (4) from the display inverter.
10. Remove the display inverter.
Reverse this procedure to install the display inverter.
48 Chapter 4 Removal and replacement procedures

HP Compaq 8510p - Compaq Business Notebook Specifications

General

RAM	Up to 4 GB DDR2
Processor	Intel Core 2 Duo
Display	15.4-inch
Storage	80GB, 120GB, 160GB HDD
Graphics	ATI Mobility Radeon HD 2600
Operating System	Windows Vista
Weight	2.8 kg (6.2 lbs)
Battery	6-cell Li-Ion
Chipset	Intel PM965
Optical Drive	DVD+/-RW SuperMulti
Networking	Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 USB 2.0, VGA, headphone, microphone
Slots	ExpressCard/54
