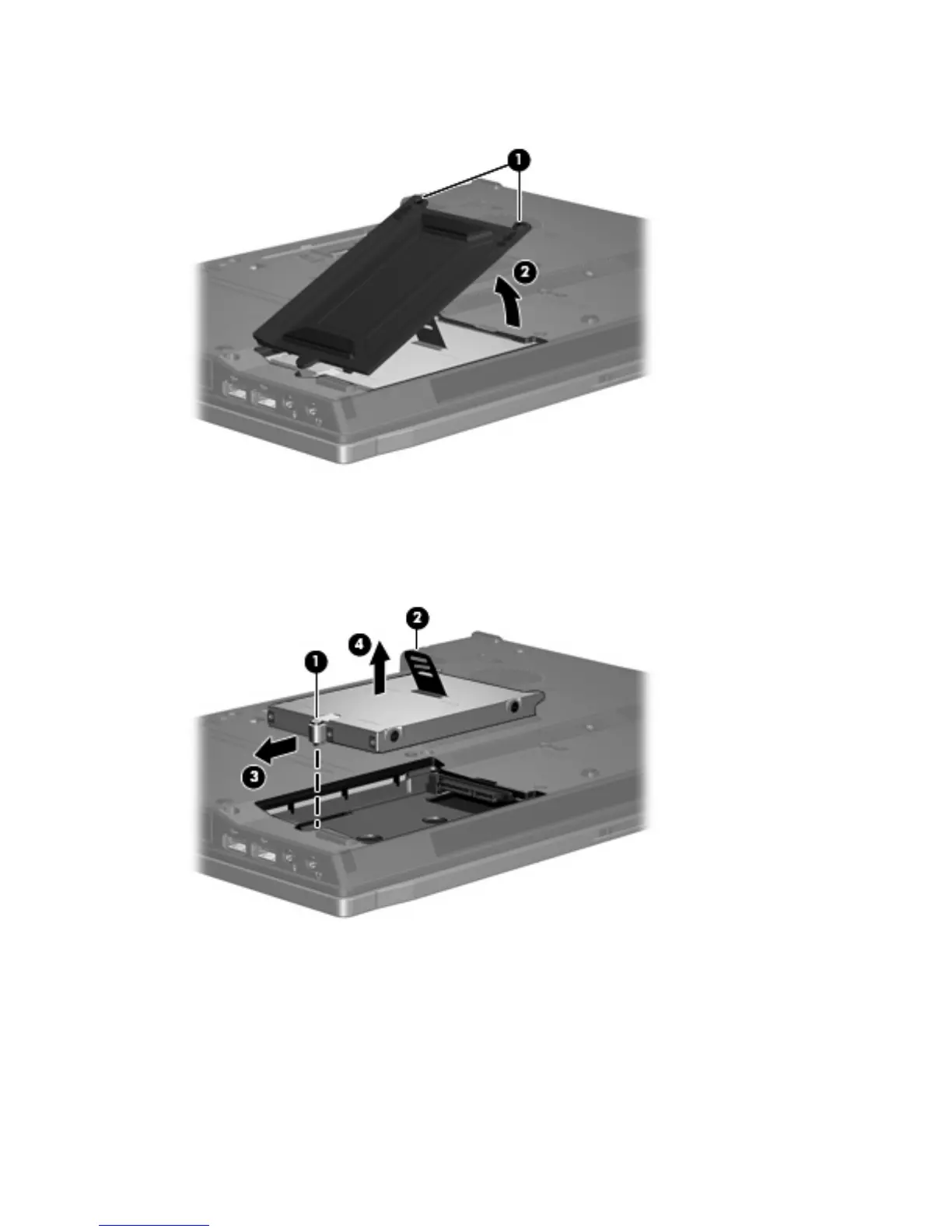

3. Lift the right side of the hard drive cover (2), swing it to left, and remove the cover. The hard drive
cover is included in the Plastics Kit, spare part number 452221-001
4. Loosen the Phillips PM2.5×11.0 captive screw (1) that secures the hard drive to the computer.
5. Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the left to disconnect it from
the system board.
6. Remove the hard drive (4) from the hard drive bay.
7. If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive
bracket screws (1) from each side of the hard drive.
50 Chapter 4 Removal and replacement procedures

HP Compaq 8510p - Compaq Business Notebook Specifications

General

RAM	Up to 4 GB DDR2
Processor	Intel Core 2 Duo
Display	15.4-inch
Storage	80GB, 120GB, 160GB HDD
Graphics	ATI Mobility Radeon HD 2600
Operating System	Windows Vista
Weight	2.8 kg (6.2 lbs)
Battery	6-cell Li-Ion
Chipset	Intel PM965
Optical Drive	DVD+/-RW SuperMulti
Networking	Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 USB 2.0, VGA, headphone, microphone
Slots	ExpressCard/54
