4. Remove the battery (see Battery on page 45).
5. Remove the keyboard (see
Keyboard on page 57).

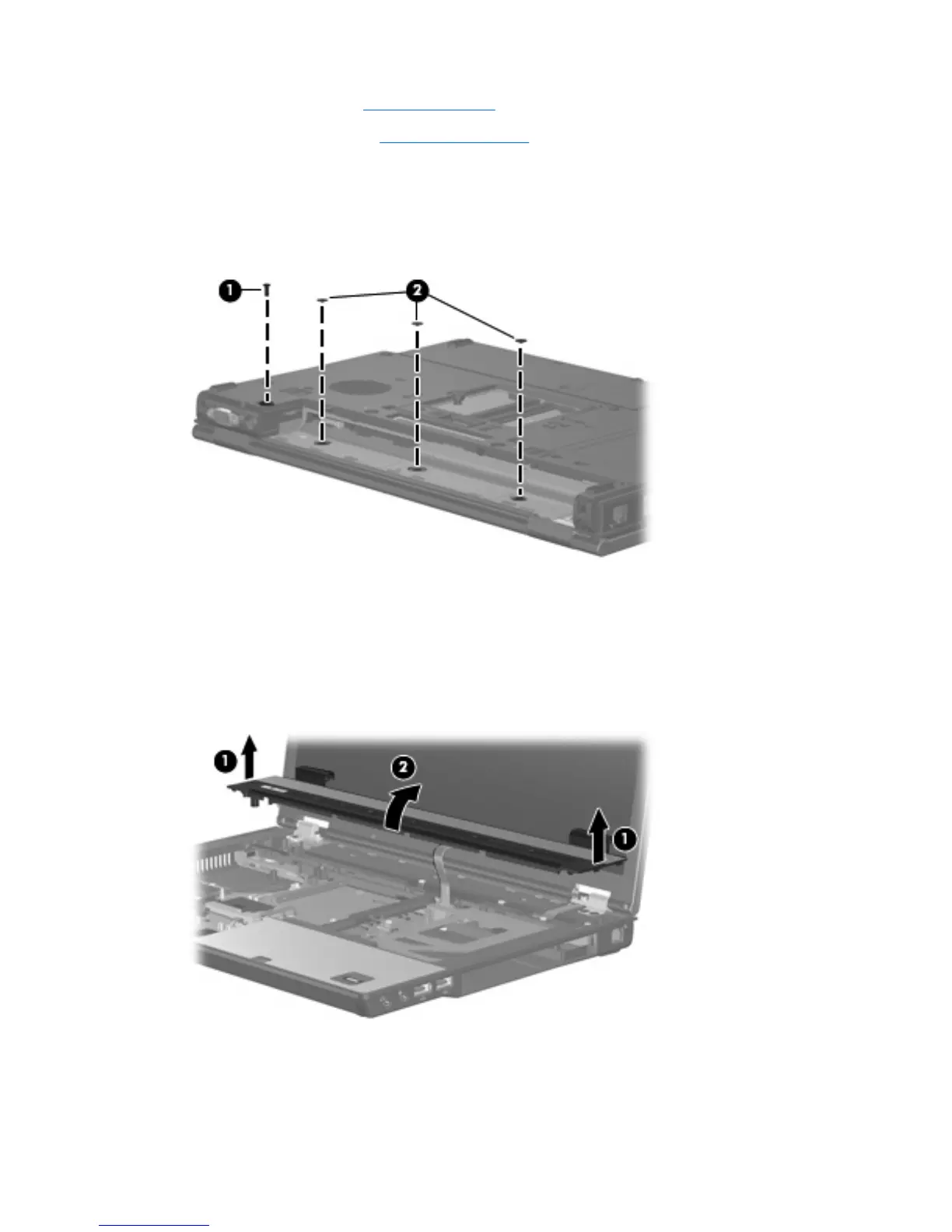

Remove the switch cover:
1. Turn the computer upside down, with the front toward you.
2. Remove the Torx T8M2.5×9.0 screw (1) and the three Phillips PM2.0×2.0 screws (2) that secure
the switch cover to the computer.
3. Turn the computer right-side up, with the front toward you.
4. Open the computer as far as possible.
5. Release the switch cover by lifting the left and right edges of the switch cover (1) until the switch
cover disengages from the computer.
6. Lift the switch cover (2) up and back.
72 Chapter 4 Removal and replacement procedures

HP Compaq 8510p - Compaq Business Notebook Specifications

General

RAM	Up to 4 GB DDR2
Processor	Intel Core 2 Duo
Display	15.4-inch
Storage	80GB, 120GB, 160GB HDD
Graphics	ATI Mobility Radeon HD 2600
Operating System	Windows Vista
Weight	2.8 kg (6.2 lbs)
Battery	6-cell Li-Ion
Chipset	Intel PM965
Optical Drive	DVD+/-RW SuperMulti
Networking	Gigabit Ethernet
Audio	Integrated stereo speakers
Ports	3 USB 2.0, VGA, headphone, microphone
Slots	ExpressCard/54
