5–26 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the computer upside down with the front panel
toward you.

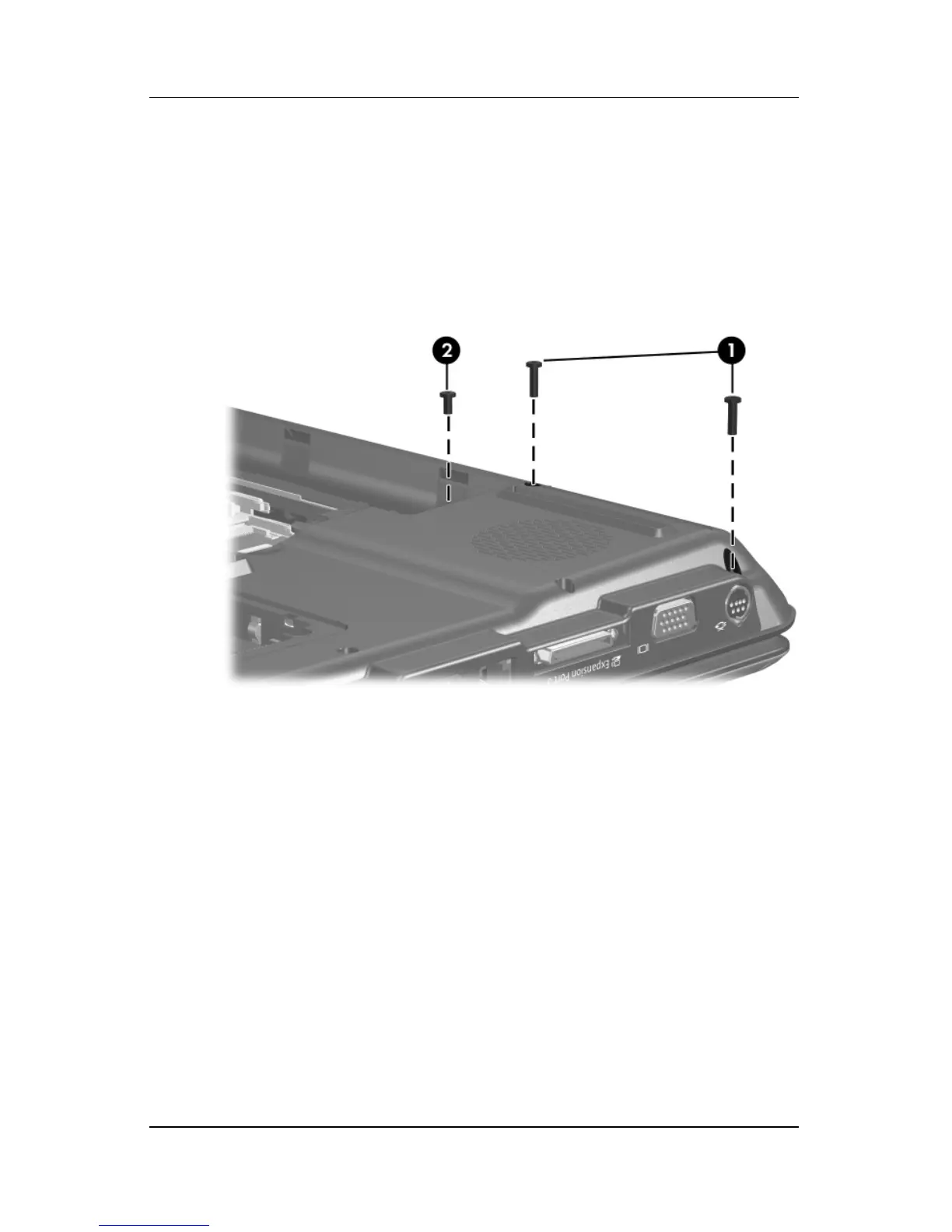

5. Remove the two Phillips PM2.5×9.0 screws 1 and the silver
Phillips PM2.5×5.0 screw 2 that secure the switch cover to
the computer.
Removing the Switch Cover Screws
