Removal and Replacement Procedures

Maintenance and Service Guide 5–43

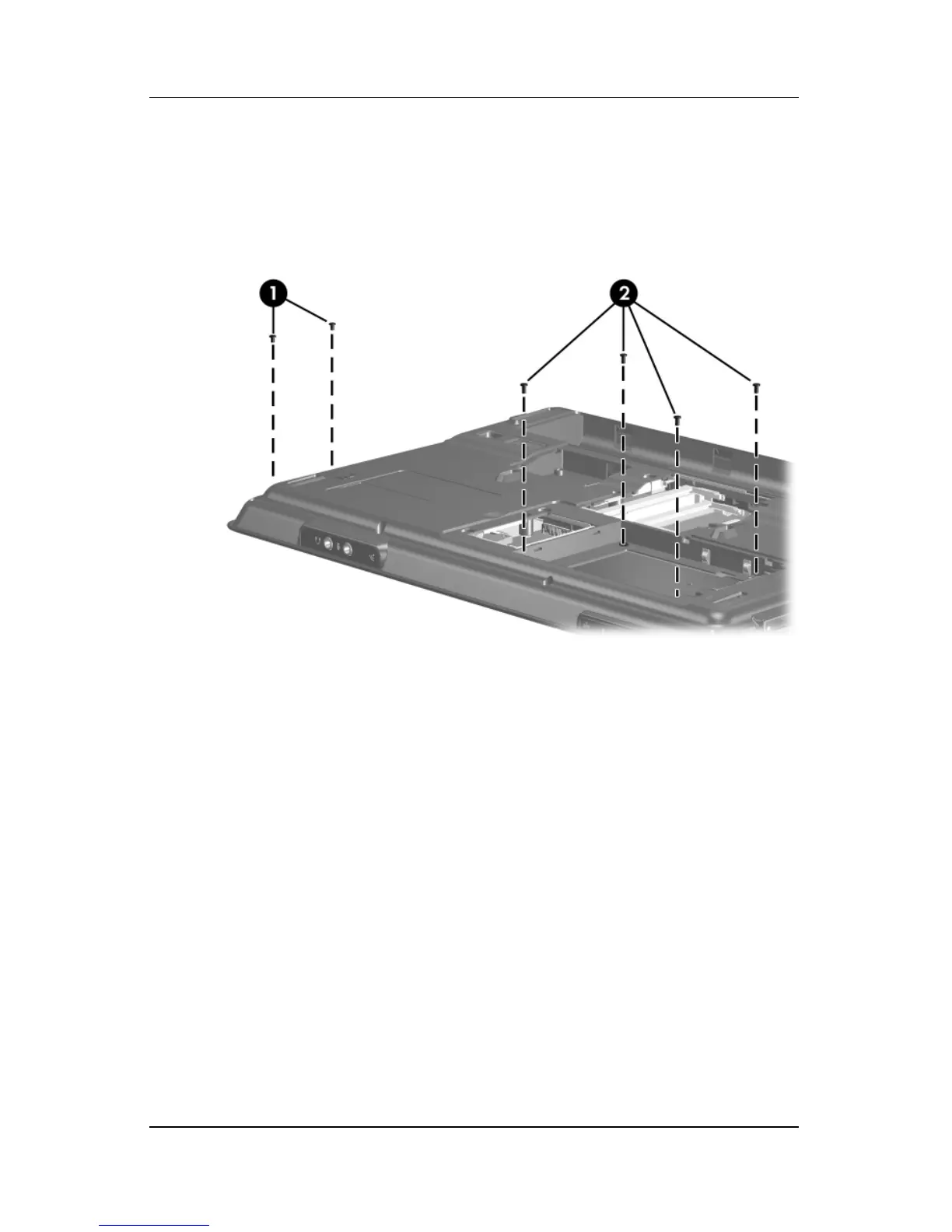

3. Remove the two Phillips PM2.0×3.0 screws 1 and the

four Phillips PM2.0×4.0 screws 2 that secure the top cover to

the computer.

Removing the Top Cover Screws, Part 2

Questions and Answers:

Need help?

Do you have a question about the HP Compaq V3000 and is the answer not in the manual?

General

Graphics	Intel Graphics Media Accelerator 950
Display	14.1-inch WXGA (1280 x 800) TFT LCD
Hard Drive	120 GB SATA (5400 rpm)
Optical Drive	DVD±RW DL LightScribe
Wireless	802.11a/b/g
Operating System	Windows XP Professional
Weight	2.3 kg (5.07 lbs)
Battery	6-cell Lithium-Ion
CPU	Intel Core 2 Duo
