Removal and Replacement Procedures
Maintenance and Service Guide 5–45

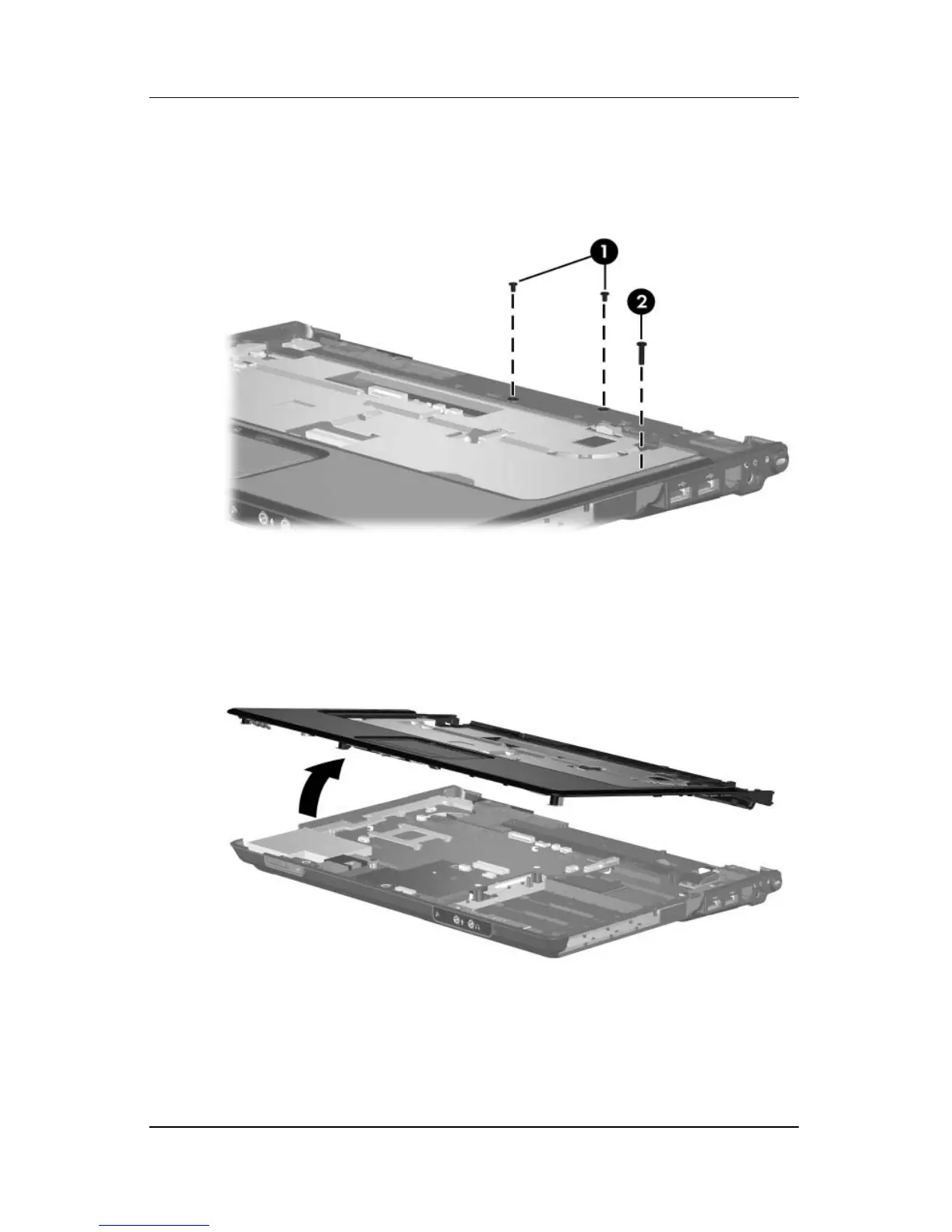

6. Remove the two Phillips PM2.0×4.0 screws 1 and the
Phillips PM2.5×9.0 screw 2 that secure the top cover to
the computer.
Removing the Top Cover Screws, Part 3
7. Lift up the front edge of the top cover and remove it.
Removing the Top Cover
Reverse the above procedure to install the top cover.
