Removal and Replacement Procedures
Maintenance and Service Guide 5–53

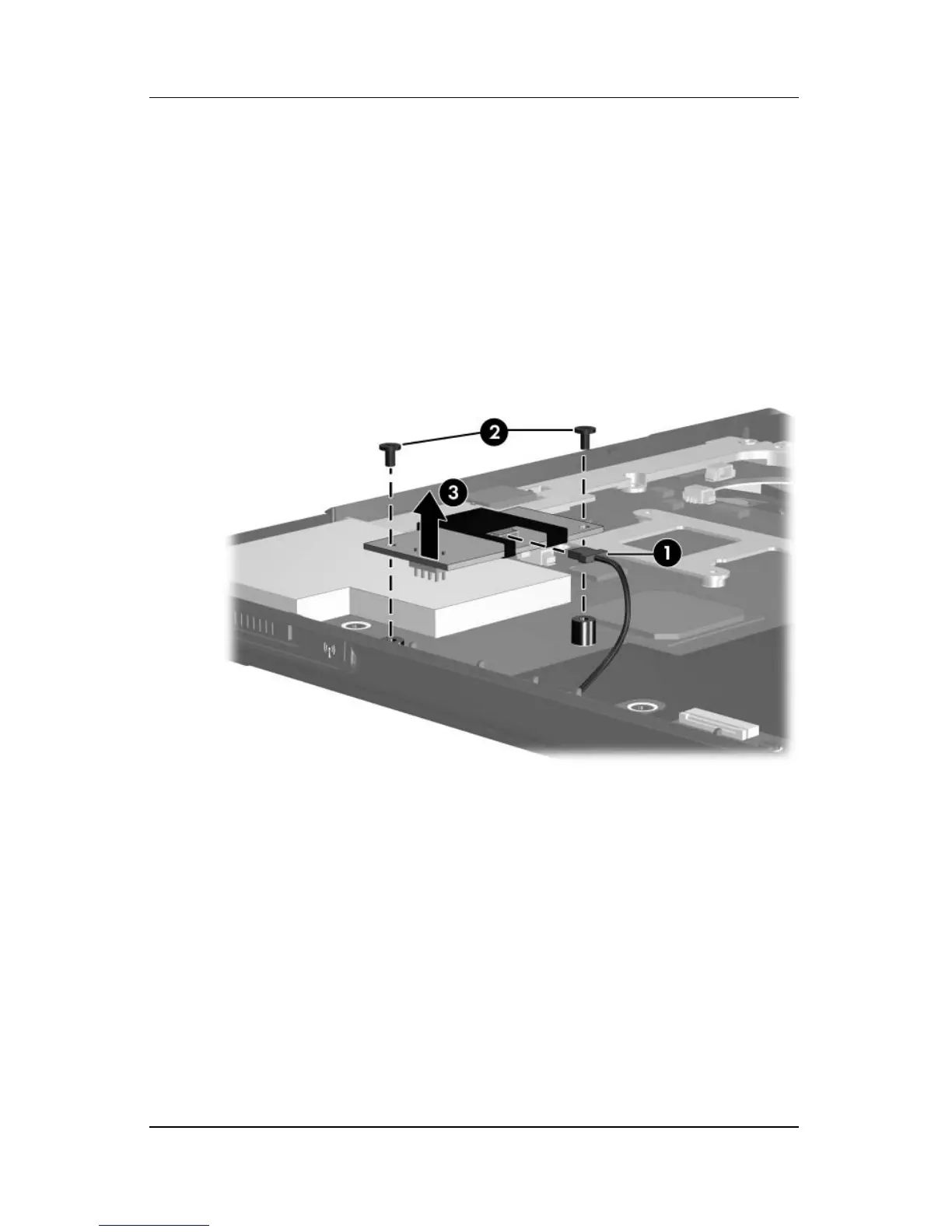

2. Disconnect the modem module cable 1 from the
modem module.
3. Remove the two Phillips PM2.0×4.0 screws 2 that secure
the modem module to the system board.
4. Lift up on the front of the modem module 3 to disconnect it
from the system board.
5. Remove the modem module.
Removing the Modem Module
Reverse the above procedure to install the modem module.
