Removal and Replacement Procedures
Maintenance and Service Guide 5–61

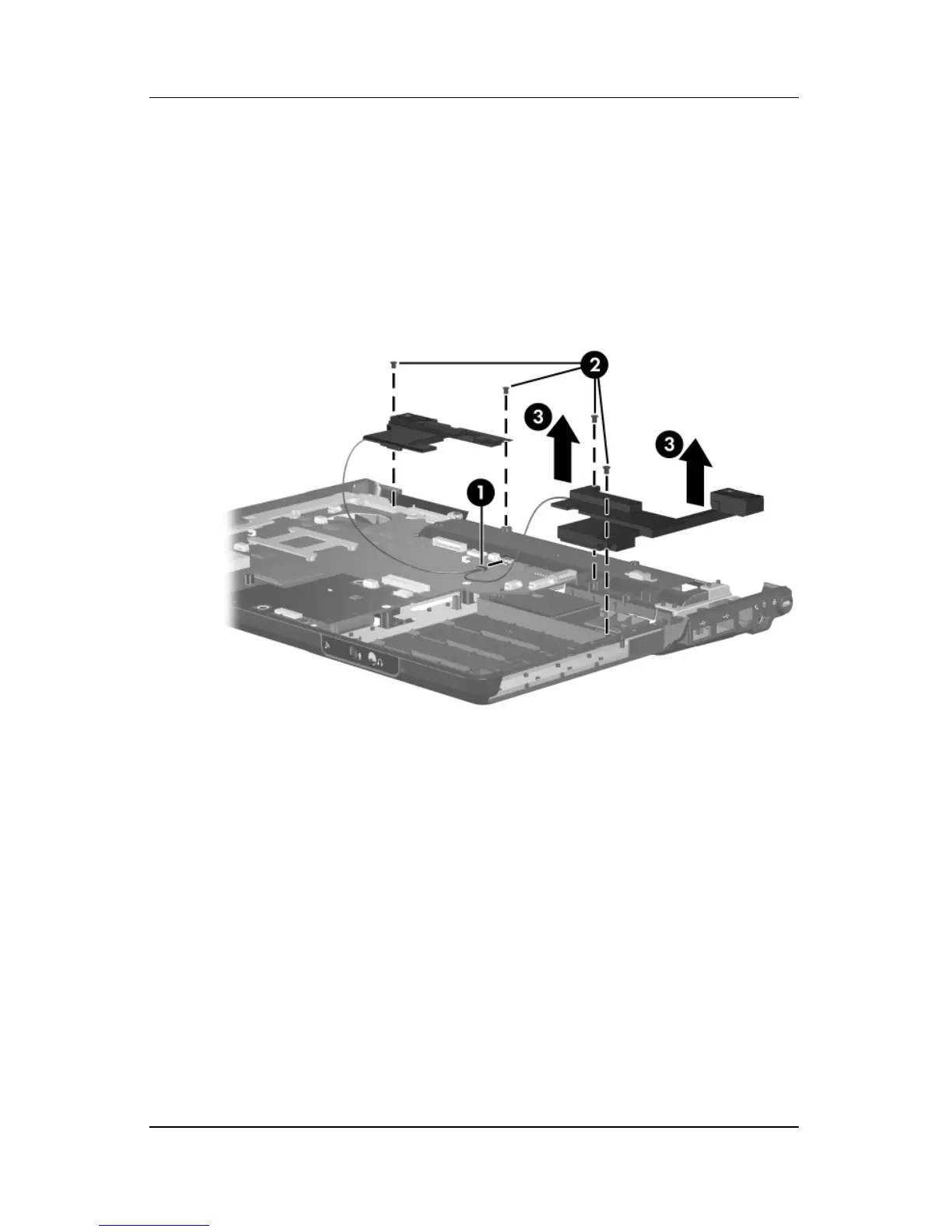

2. Disconnect the speaker cable 1 from the system board.
3. Remove the four Phillips PM2.5×4.0 screws 2 that secure the
speakers to the computer.
4. Lift the speakers 3 straight up to remove them from the
computer.
Removing the Speaker Assembly
Reverse the above procedure to install the speaker assembly.
