Connector Pin Assignments
Maintenance and Service Guide E–3

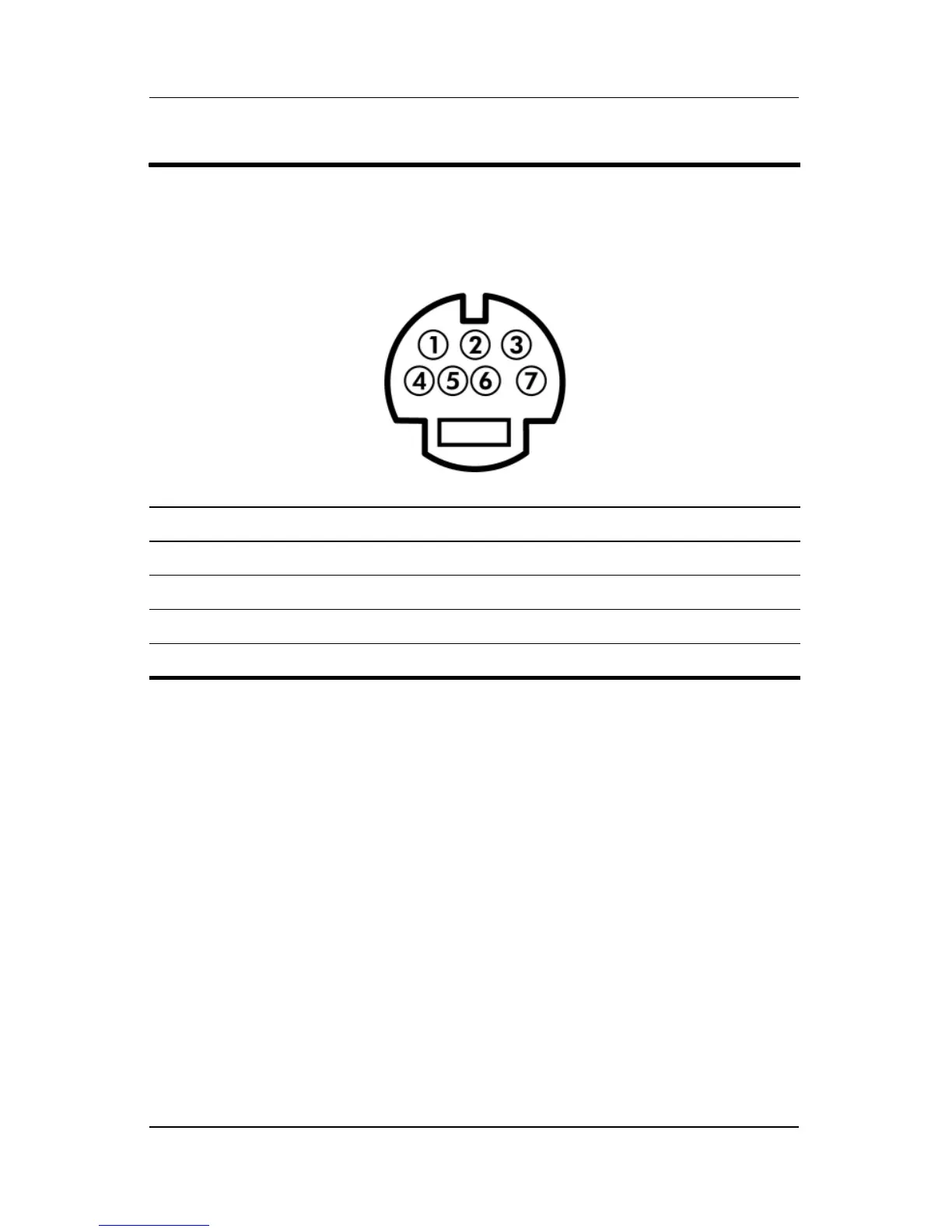

Table E-3
S-Video-Out
Pin Signal Pin Signal
1 TV-Ground 5 TV-CD
2 TV-CVBS 6 TV-Ground
3 TV-Ground 7 TV-YD
4 TV-Ground
