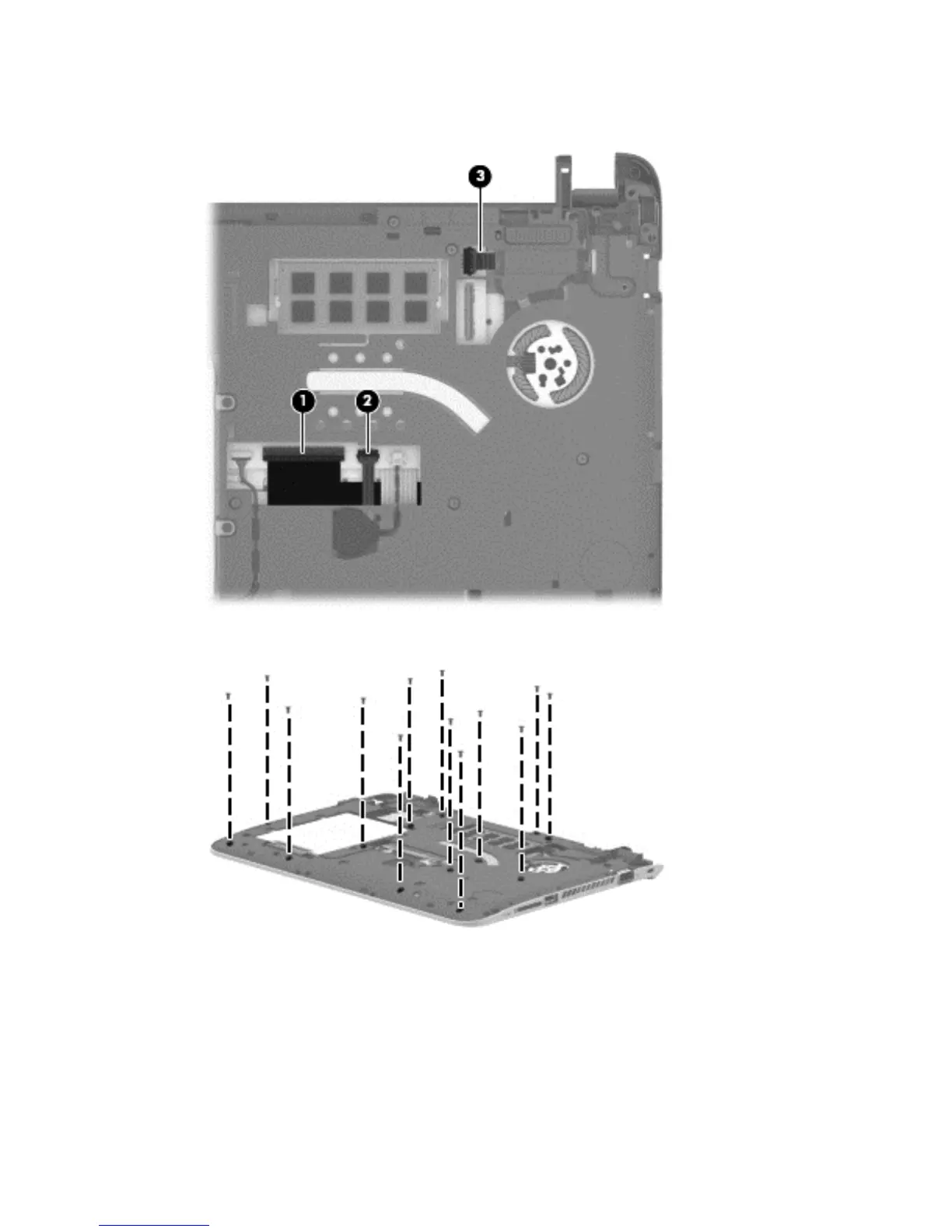

3. Release the ZIF connector (3) to which the power button board ribbon cable is attached, and

then disconnect the power button board ribbon cable from the system board.

4. Remove the thirteen Phillips PM2.0×4.5 screws that secure the bottom cover to the top cover.

Component replacement procedures 55
