HP 11 Maintenance And Service Guide

103 pages

To Next Page

To Previous Page

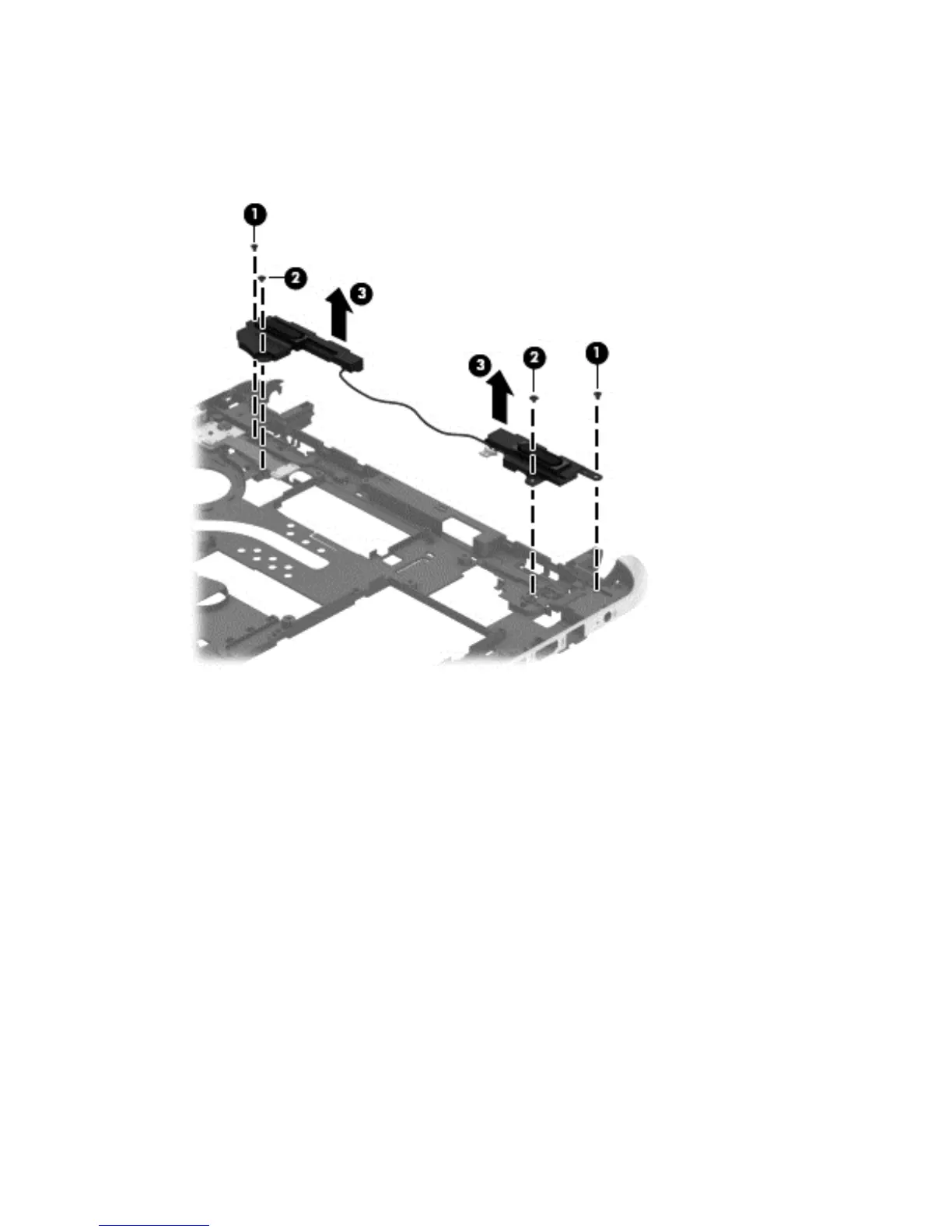

Remove the speakers:

1. Remove the two Phillips PM2.0×3.75 screws (1) and the two Phillips PM2.0×2.75 screws (2) that

secure the speakers to the bottom cover.

2. Remove the speakers (3).

Reverse this procedure to install the speakers.

68 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts

Table of Contents7
Product Description11
External Component Identification16
Display16
Buttons and Speakers17
Keys18
Lights19
Touchpad20
Left Side21
Right Side22
Bottom23
Labels23
Illustrated Parts Catalog25
Computer Major Components25
Display Assembly Subcomponents29
Mass Storage Devices30
Miscellaneous Parts31
Sequential Part Number Listing31
Removal and Replacement Procedures Preliminary Requirements37
Tools Required37
Service Considerations37
Plastic Parts37
Cables and Connectors38
Drive Handling38
Grounding Guidelines39
Electrostatic Discharge Damage39
Packaging and Transporting Guidelines40
Workstation Guidelines40
Removal and Replacement Procedures for Customer Self-Repair Parts42
Component Replacement Procedures42
Battery43
Service Door44
Hard Drive45
WLAN Module47
Memory Module49
Removal and Replacement Procedures for Authorized Service Provider Parts50
Component Replacement Procedures50
RTC Battery50
Display Panel52
Display Assembly56
Display Assembly Subcomponents59
Power Connector Cable62
Bottom Cover64
Power Button Board66
Touchpad Button Board68
Media Card Reader Board70
Fan71
Monitor Connector Board72
System Board73
Heat Sink75
Speakers77
Using Setup Utility (BIOS) and HP PC Hardware Diagnostics (UEFI)79
Starting Setup Utility (BIOS)79
Updating the BIOS79
Determining the BIOS Version79
Downloading a BIOS Update80
Downloading a Windows 8.1 BIOS Update80
Downloading a Windows 7 BIOS Update81
Using HP PC Hardware Diagnostics (UEFI) (Select Models Only)81
Downloading HP PC Hardware Diagnostics (UEFI) to a USB Device82
Specifications83
Computer Specifications83
Hard Drive Specifications83
Windows 7 - Backing Up, Restoring, and Recovering85
Creating Backups85
Creating Recovery Media to Recover the Original System85
What You Need to Know85
Creating the Recovery Media86
Creating System Restore Points86
What You Need to Know86
Creating a System Restore Point86
Backing up System and Personal Information86
Tips for a Successful Backup87
What You Need to Know87
Creating a Backup Using Windows Backup and Restore87
Restore and Recovery88
Restoring to a Previous System Restore Point88
Restoring Specific Files88
Restoring Specific Files Using Windows Backup and Restore88
Recovering the Original System Using HP Recovery Manager88
What You Need to Know88
Recovering Using HP Recovery Partition (Select Models Only)89
Recovering Using the Recovery Media89
Changing the Computer Boot Order90
Windows 8.1 - Backing Up, Restoring, and Recovering91
Creating Recovery Media and Backups91
Creating HP Recovery Media91
Restore and Recovery92
Recovering Using HP Recovery Manager93
What You Need to Know93
Using the HP Recovery Partition93
Using HP Recovery Media to Recover94
Changing the Computer Boot Order94
Removing the HP Recovery Partition94
11 Power Cord Set Requirements96
Requirements for All Countries96
Requirements for Specific Countries and Regions97
12 Recycling99
Index100
