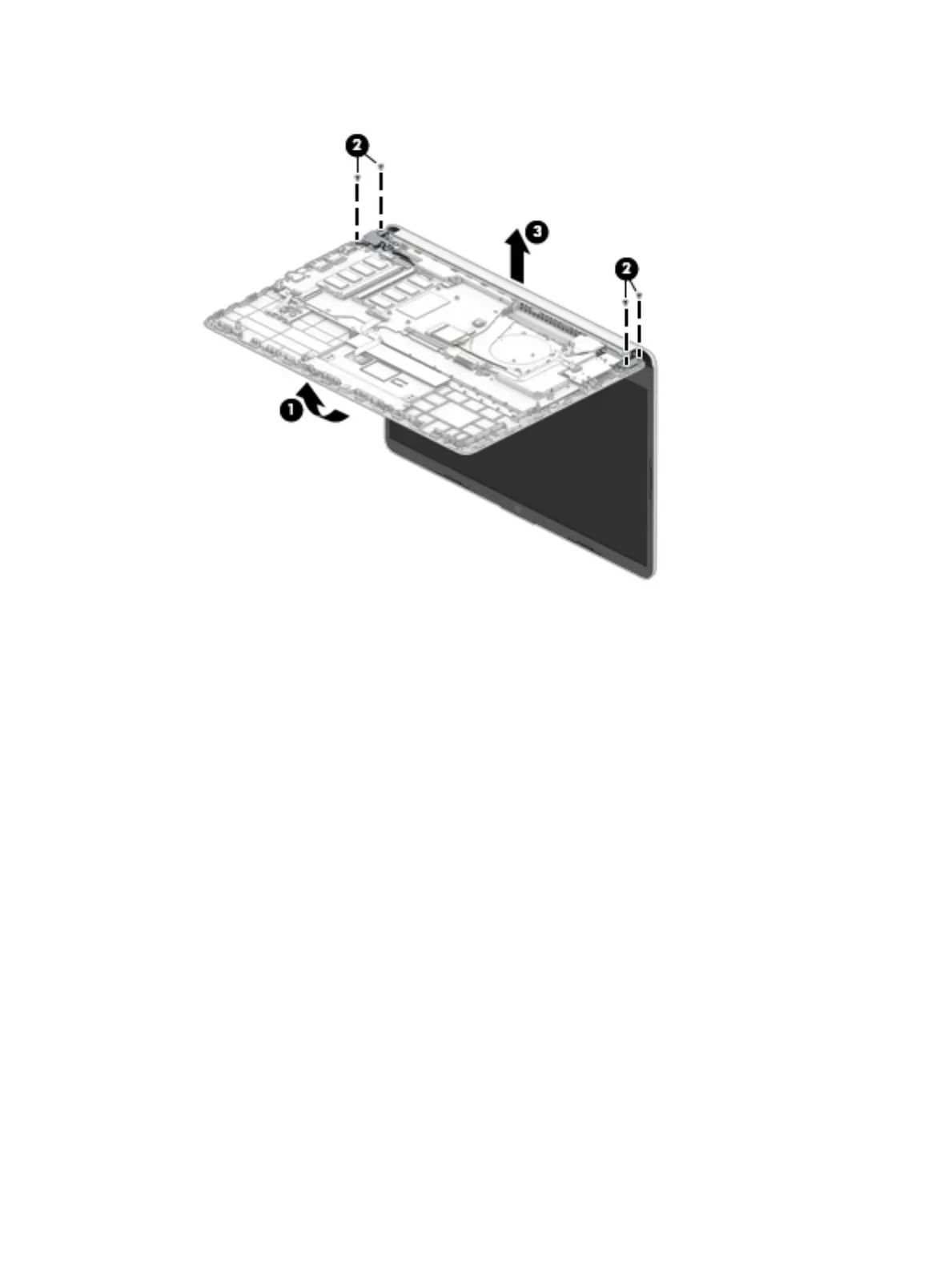

5. Separate the display from the computer (3).
6. If it is necessary to replace display assembly subcomponents:
a. Remove the hinge cover by squeezing both ends of the cover (1), and then pulling the cover o the
display (2).
The hinge cover is available as the following spare part numbers:
L64911-001: Natural silver
L64912-001: Pale gold
L64913-001: Snowake white
Component replacement procedures 51
