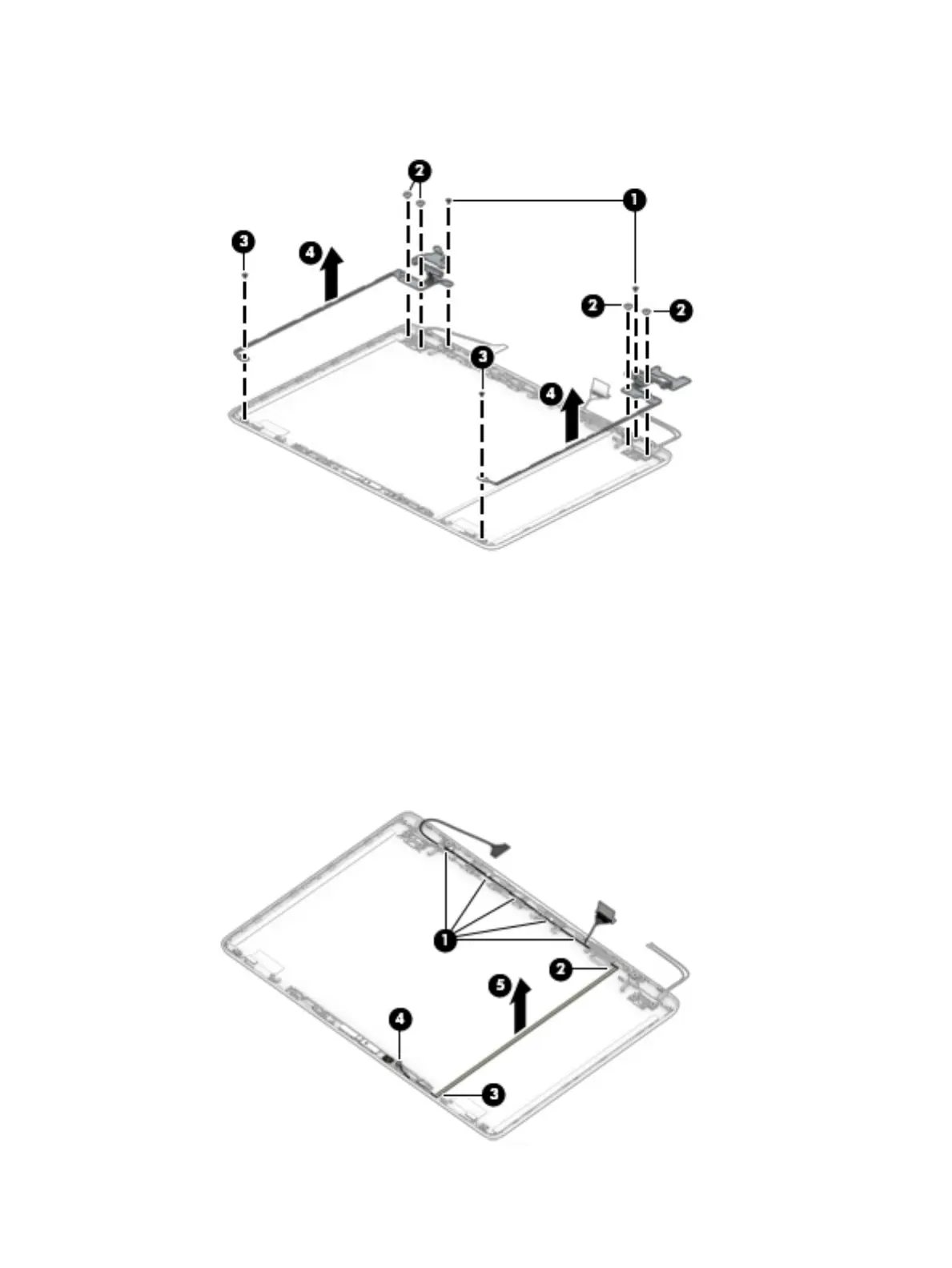

d. Remove the display hinges from the display back cover (4).
The display hinges are available as spare part number L64910-001.
10. If it is necessary to remove the display panel cable:
a. Remove the cable from the channel at the bottom of the display back cover (1).
b. Remove the cable from the bottom (2) and top (3) of the display back cover.
c. Disconnect the cable from the webcam module (4), and then remove the cable from the display
back cover (5).
The display cable is available as the following spare part numbers:
L64908-001: Touch displays
L64909-001: Non-touch displays
56 Chapter 5 Removal and replacement procedures for authorized service provider parts
