HP 14 Series User Manual

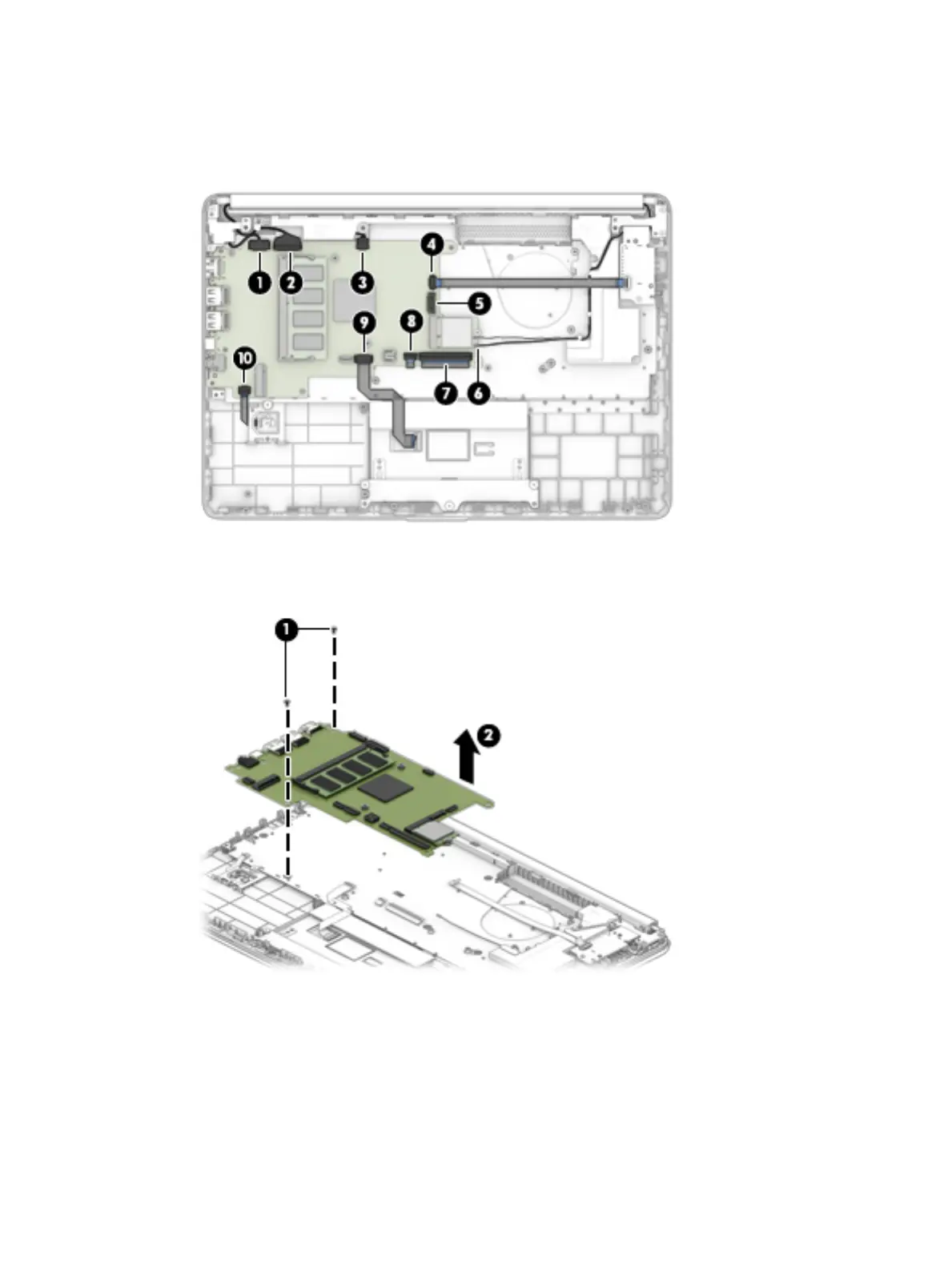

h. Keyboard backlight cable (ZIF) (8)
i. Touchpad cable (ZIF) (9)
j. Fingerprint reader cable (ZIF) (10)
5. Remove the two Phillips M2.0 × 3.0 screws (1) that secure the system board to the computer.
6. Remove the system board from the computer (2).
Reverse this procedure to install the system board.
Component replacement procedures 47

HP 14 Series Specifications

General

Series	14 Series
Category	Laptop
Processor	AMD Ryzen 3 / Ryzen 5 / Ryzen 7
Graphics	AMD Radeon Graphics
Display	14-inch HD (1366 x 768) / FHD (1920 x 1080)
Memory	4GB / 8GB DDR4
Storage	128GB / 256GB SSD
Operating System	Windows 10 Home
Battery	3-cell, 41 Wh Li-ion
Dimensions	32.4 x 22.5 x 1.79 cm (12.76 x 8.86 x 0.70 in)
Ports	HDMI
Wireless	Wi-Fi 802.11a/b/g/n/ac and Bluetooth (version varies by model)
